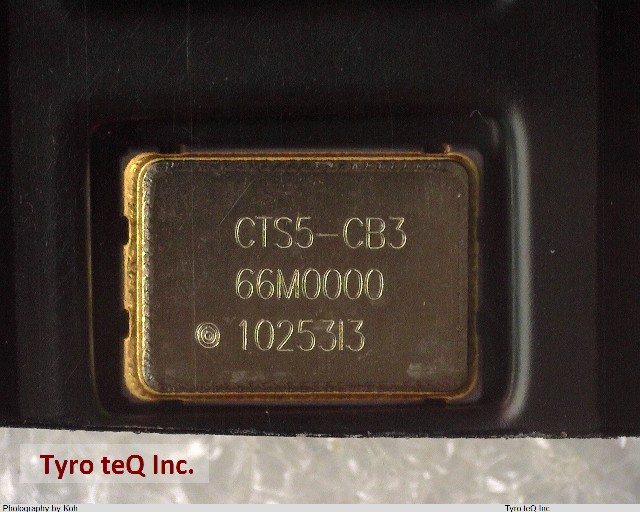

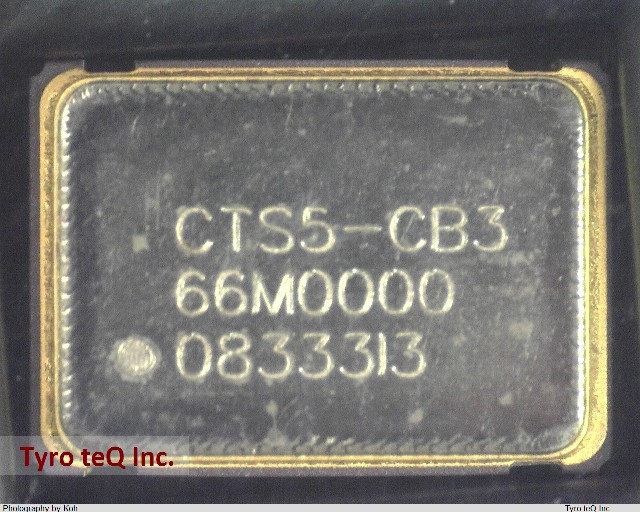

CB3LV-3I-66M0000
1
-
- 個
２営業日以内に回答いたします
CB3LV-3I-66M0000 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | CB3LV-3I-66M0000 |
|---|---|
| メーカー | CTS |
| Additional Feature | ENABLE/DISABLE FUNCTION; TAPE AND REEL |
| Fall Time-Max | 4 ns |
| Frequency Adjustment-Mechanical | NO |
| Frequency Stability | 50 % |
| JESD-609 Code | e4 |
| Manufacturer Series | CB3 |
| Mounting Feature | SURFACE MOUNT |
| Number of Terminals | 4 |
| Operating Frequency-Max | 107 MHz |
| Operating Frequency-Min | 1.5 MHz |
| Operating Frequency-Nom | 66 MHz |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Oscillator Type | CMOS/TTL |
| Output Load | 15 pF |
| Output Low Current-Max | 16 Amp |
| Package Body Material | CERAMIC |
| Package Equivalence Code | DILCC4,.2,200 |
| Physical Dimension | 7.0mm x 5.0mm x 1.8mm |
| Power Supplies | 3.3 V |
| Qualification Status | Not Qualified |
| Rise Time-Max | 4 ms |
| Sub Category | Other Oscillators |
| Supply Current-Max | 35 mA |
| Supply Voltage-Max | 3.6 V |
| Supply Voltage-Min | 2.97 V |
| Supply Voltage-Nom | 3.3 V |
| Symmetry-Max | 55/45 % |
| Terminal Finish | GOLD OVER NICKEL |
| 会社名称 | CTS Corporation |
|---|---|
| 設立 | 1896 |
| URL | http://www.ctscorp.com/ |
