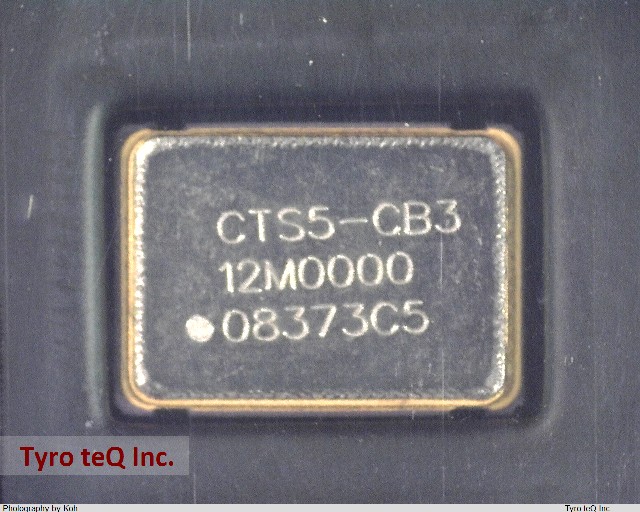

CB3-3C-12M0000

Name: CB3-3C-12M0000
Brand: CTS
SKU: 130588866-0000-0000-0000

CB3-3C-12M0000 - CTS の商品詳細ページです。

２営業日以内に回答いたします

CB3-3C-12M0000 の詳細情報

型番	CB3-3C-12M0000
メーカー	CTS
Additional Feature	ENABLE/DISABLE FUNCTION; TAPE AND REEL
Fall Time-Max	10 ns
Frequency Adjustment-Mechanical	NO
Frequency Stability	50 %
JESD-609 Code	e4
Manufacturer Series	CB3
Mounting Feature	SURFACE MOUNT
Number of Terminals	4
Operating Frequency-Max	107 MHz
Operating Frequency-Min	1.5 MHz
Operating Frequency-Nom	12 MHz
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
Oscillator Type	HCMOS/TTL
Output Load	50 pF
Output Low Current-Max	16 Amp
Package Body Material	CERAMIC
Package Equivalence Code	DILCC4,.2,200
Physical Dimension	7.0mm x 5.0mm x 1.7mm
Power Supplies	5 V
Qualification Status	Not Qualified
Rise Time-Max	10 ms
Sub Category	Other Oscillators
Supply Current-Max	25 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Symmetry-Max	55/45 %
Terminal Finish	GOLD OVER NICKEL
