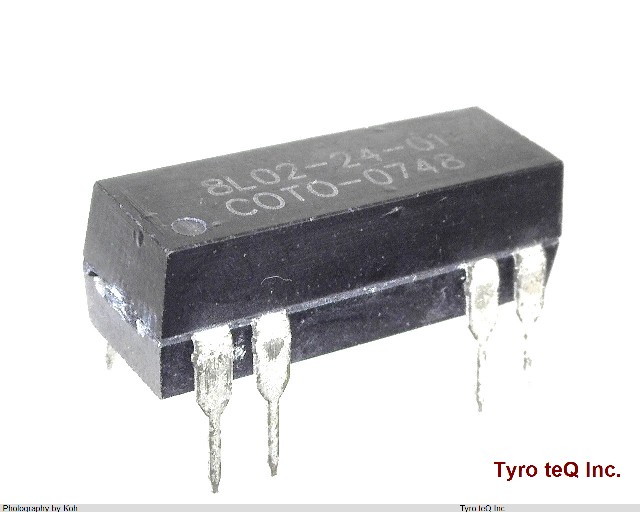

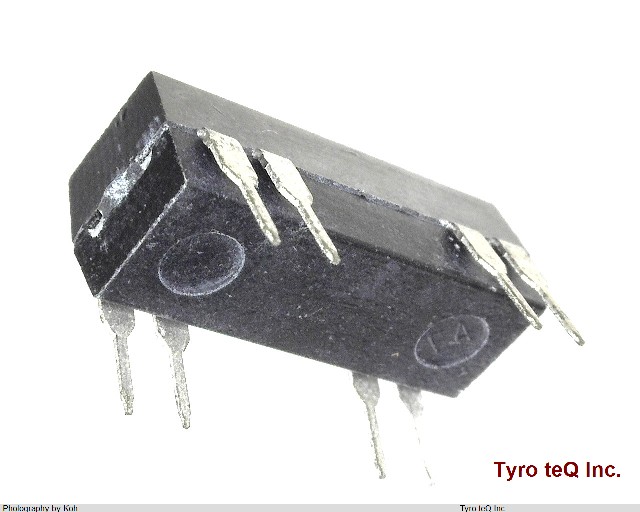

8L02-24-01

Name: 8L02-24-01
Brand: COTO
SKU: 400096287-0000-0000-0000

8L02-24-01 - COTO の商品詳細ページです。

２営業日以内に回答いたします

8L02-24-01 の詳細情報

型番	8L02-24-01
メーカー	COTO
Body Breadth	7.62 inch
Body Height	6.98 mm
Body Length or Diameter	19.5 mm
Coil Operate Voltage(DC)	19.2 V
Coil Release Voltage(DC)	2 V
Coil Resistance	2000 ohm
Coil Voltage(DC)-Max	32 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Rating R Load	0.5A@200VAC
Contact Current(AC)-Max	0.5 A
Contact Current(DC)-Max	0.5 A
Contact DC Max Power Rating R Load	10W@200VDC
Contact DC Max Rating R Load	0.5A@200VDC
Contact Voltage(AC)-Max	200 V
Contact Voltage(DC)-Max	200 V
Contact/Output Supply Type	AC/DC
Input Switching Control Type	Random
Insulation Resistance	10000000000 ohm
JESD-609 Code	e3
Number of Terminals	8
Operate Time	0.5 ms
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
Physical Dimension	19.5mm x 7.62mm x 6.98mm
Reference Standard	UL
Relay Action	MOMENTARY
Relay Form	2 FORM A
Relay Function	DPST
Release Time	0.5 ms
Sealing	HERMETICAL
Terminal Finish	MATTE TIN
Terminal Length	0.1378 inch
Termination Type	SOLDER
