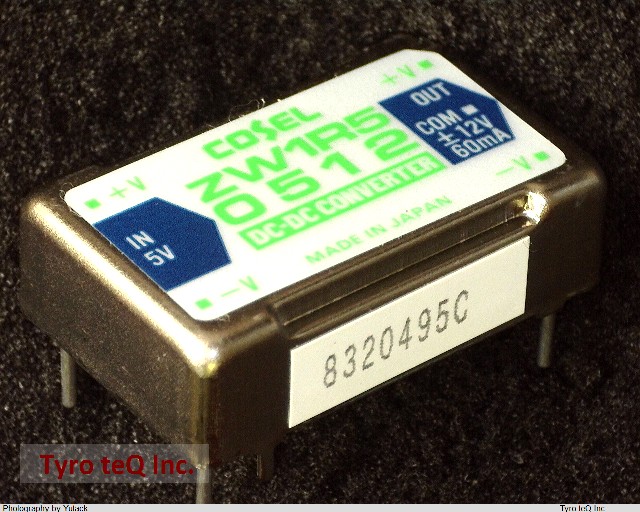

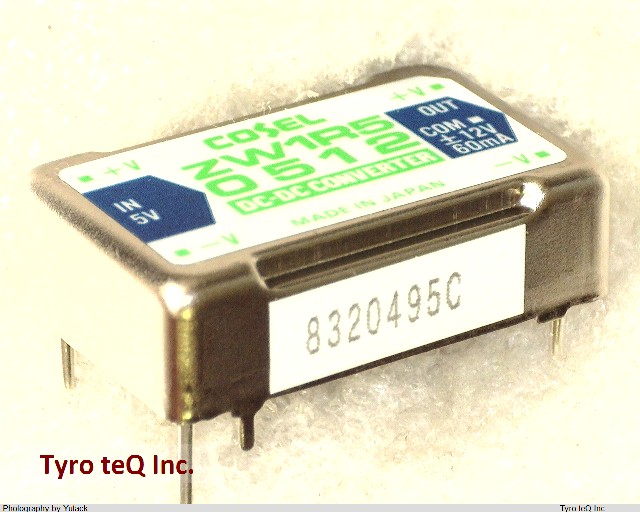

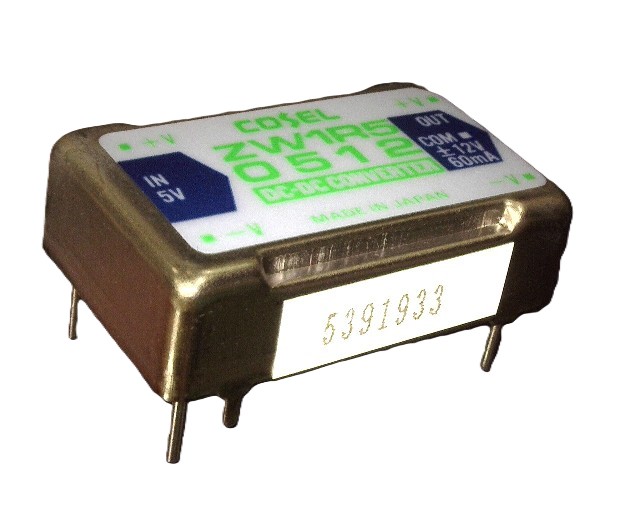

ZW1R50512 データシート

Name: ZW1R50512
Brand: COSEL
SKU: 360002741-0000-0000-0000

ZW1R50512 - COSEL の商品詳細ページです。

２営業日以内に回答いたします

ZW1R50512 の詳細情報

型番	ZW1R50512
メーカー	COSEL
データシート
Additional Feature	-12V ADDITIONAL OUTPUT AVAILABLE
Analog IC - Other Type	DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max	6 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	5 V
JESD-30 Code	R-PXMA-P7
Length	33 mm
Number of Functions	1
Number of Outputs	2
Number of Terminals	7
Operating Temperature-Max	50 Cel
Operating Temperature-Min	0 Cel
Output Voltage-Max	12.6 V
Output Voltage-Min	11.4 V
Output Voltage-Nom	12 V
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Qualification Status	Not Qualified
Seated Height-Max	10.5 mm
Surface Mount	NO
Technology	HYBRID
Temperature Grade	COMMERCIAL
Terminal Form	PIN/PEG
Terminal Position	UNSPECIFIED
Total Power Output-Max	1.44 W
Trim/Adjustable Output	NO V
Width	20.72 mm
