ZUW151215 データシート

Name: ZUW151215
Brand: COSEL
SKU: 360036663-0000-0000-0000

ZUW151215 - COSEL の商品詳細ページです。

２営業日以内に回答いたします

ZUW151215 の詳細情報

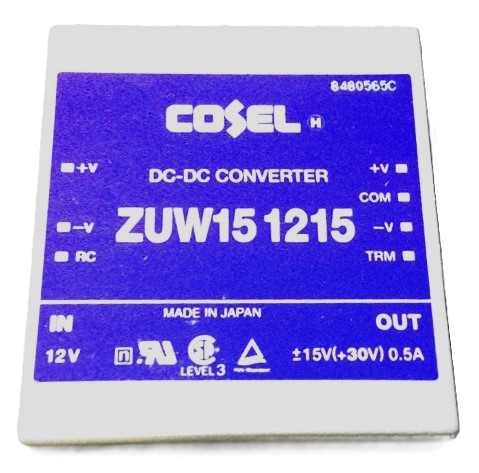

型番	ZUW151215
メーカー	COSEL
データシート
Additional Feature	NEGATIVE OUTPUT VOLTAGE IS -15 V, OUTPUT PINS CAN BE CONNECTED IN SERIES TO MAKE A 30V OUTPUT
Analog IC - Other Type	DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max	18 V
Input Voltage-Min	9 V
Input Voltage-Nom	12 V
JESD-30 Code	R-XDMA-P7
Length	50 mm
Number of Functions	1
Number of Outputs	2
Number of Terminals	7
Operating Temperature-Max	55 Cel
Operating Temperature-Min	0 Cel
Output Voltage-Max	15.75 V
Output Voltage-Min	14.25 V
Output Voltage-Nom	15 V
Package Body Material	UNSPECIFIED
Package Equivalence Code	MODULE,7LEAD,1.4
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Seated Height-Max	8.8 mm
Sub Category	Other Analog ICs
Surface Mount	NO
Technology	HYBRID
Temperature Grade	COMMERCIAL
Terminal Form	PIN/PEG
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Total Power Output-Max	15 W
Trim/Adjustable Output	YES V
Width	45 mm
