ZUS251205 データシート

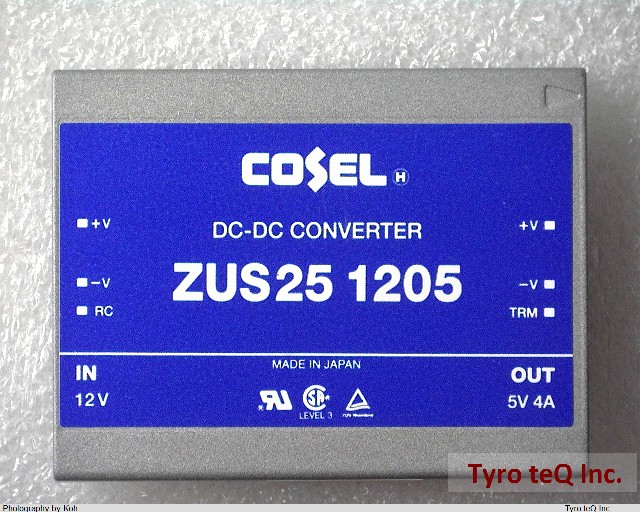

Name: ZUS251205
Brand: COSEL
SKU: 360002708-0000-0000-0000

ZUS251205 - COSEL の商品詳細ページです。

２営業日以内に回答いたします

ZUS251205 の詳細情報

型番	ZUS251205
メーカー	COSEL
データシート
Analog IC - Other Type	DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max	18 V
Input Voltage-Min	9 V
Input Voltage-Nom	12 V
JESD-30 Code	R-XDMA-P6
Length	65 mm
Number of Functions	1
Number of Outputs	1
Number of Terminals	6
Operating Temperature-Max	55 Cel
Operating Temperature-Min	0 Cel
Output Voltage-Max	5.25 V
Output Voltage-Min	4.75 V
Output Voltage-Nom	5 V
Package Body Material	UNSPECIFIED
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Seated Height-Max	8.8 mm
Surface Mount	NO
Technology	HYBRID
Temperature Grade	COMMERCIAL
Terminal Form	PIN/PEG
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Total Power Output-Max	20 W
Trim/Adjustable Output	YES V
Width	50 mm
