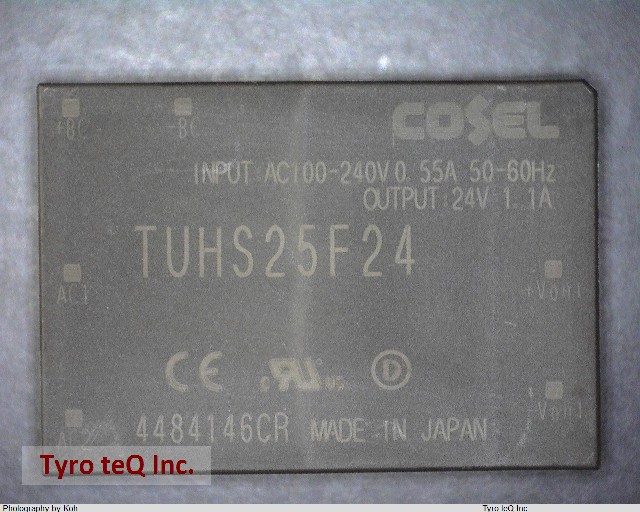

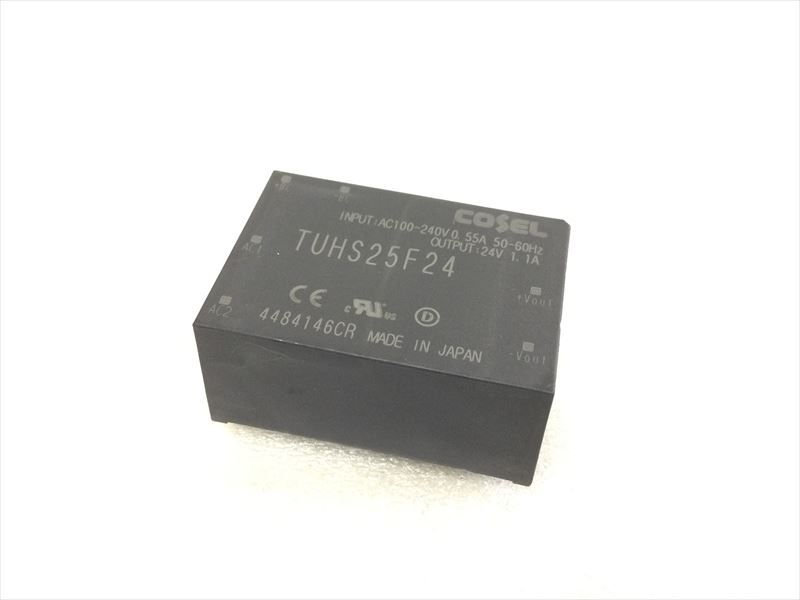

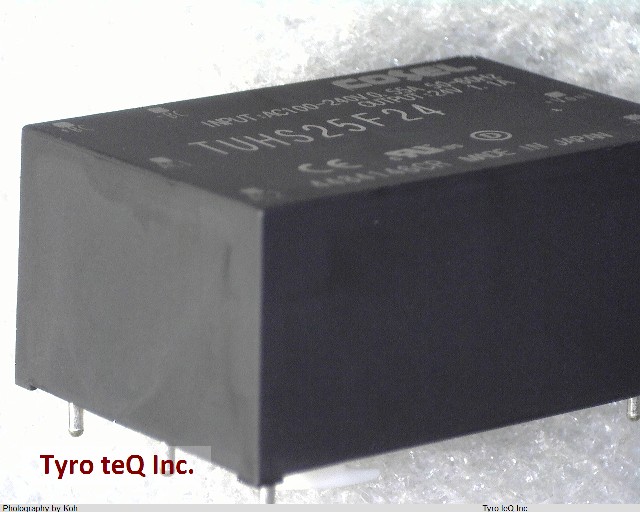

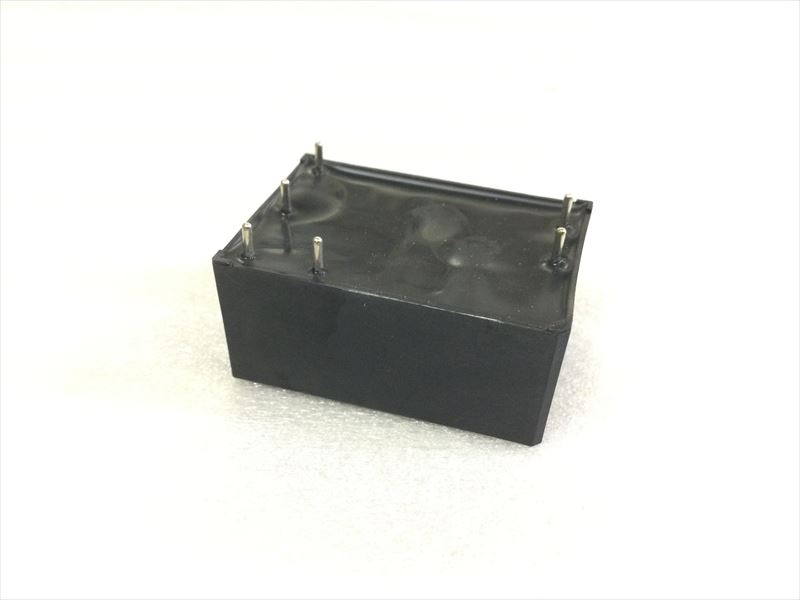

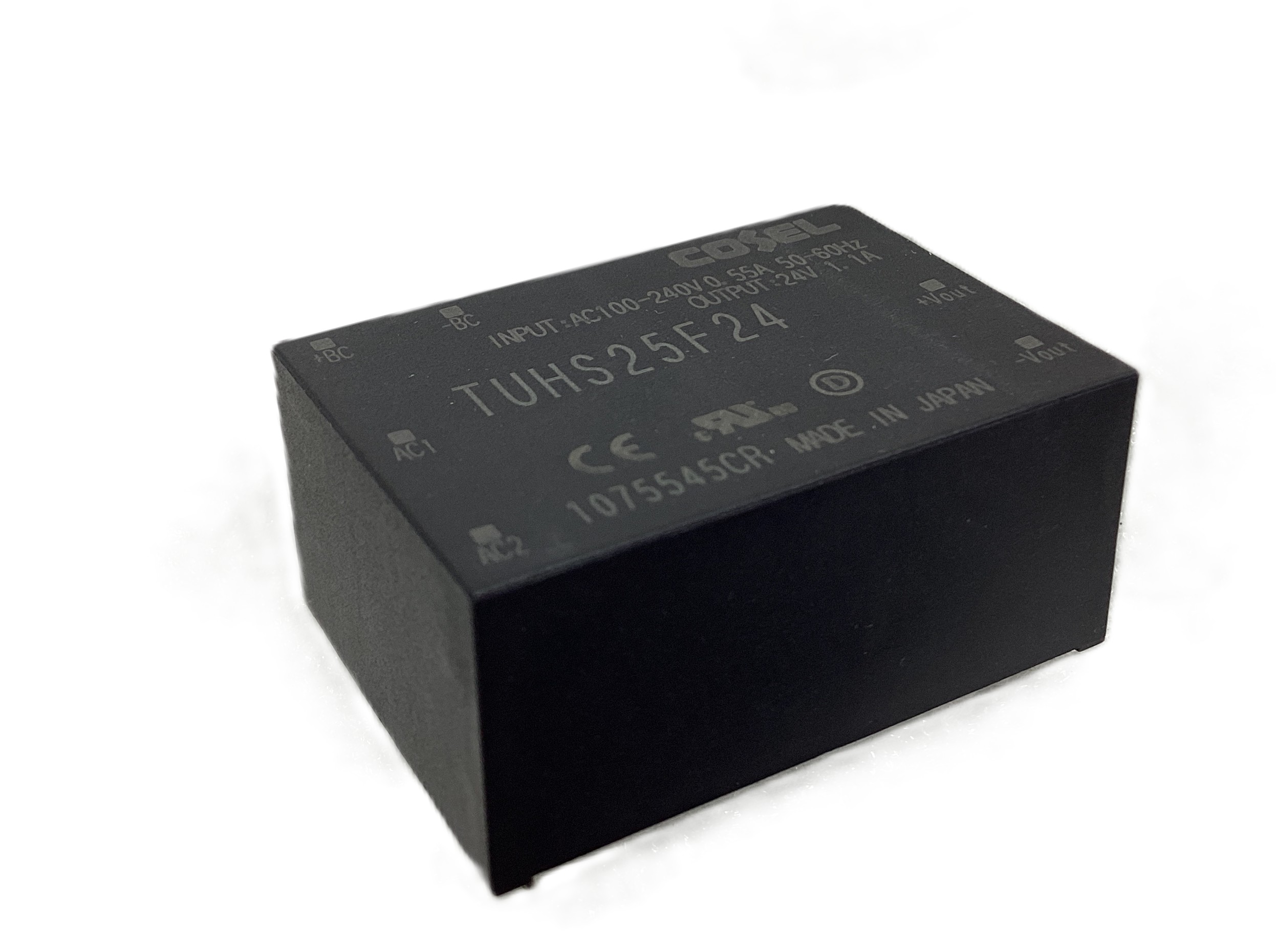

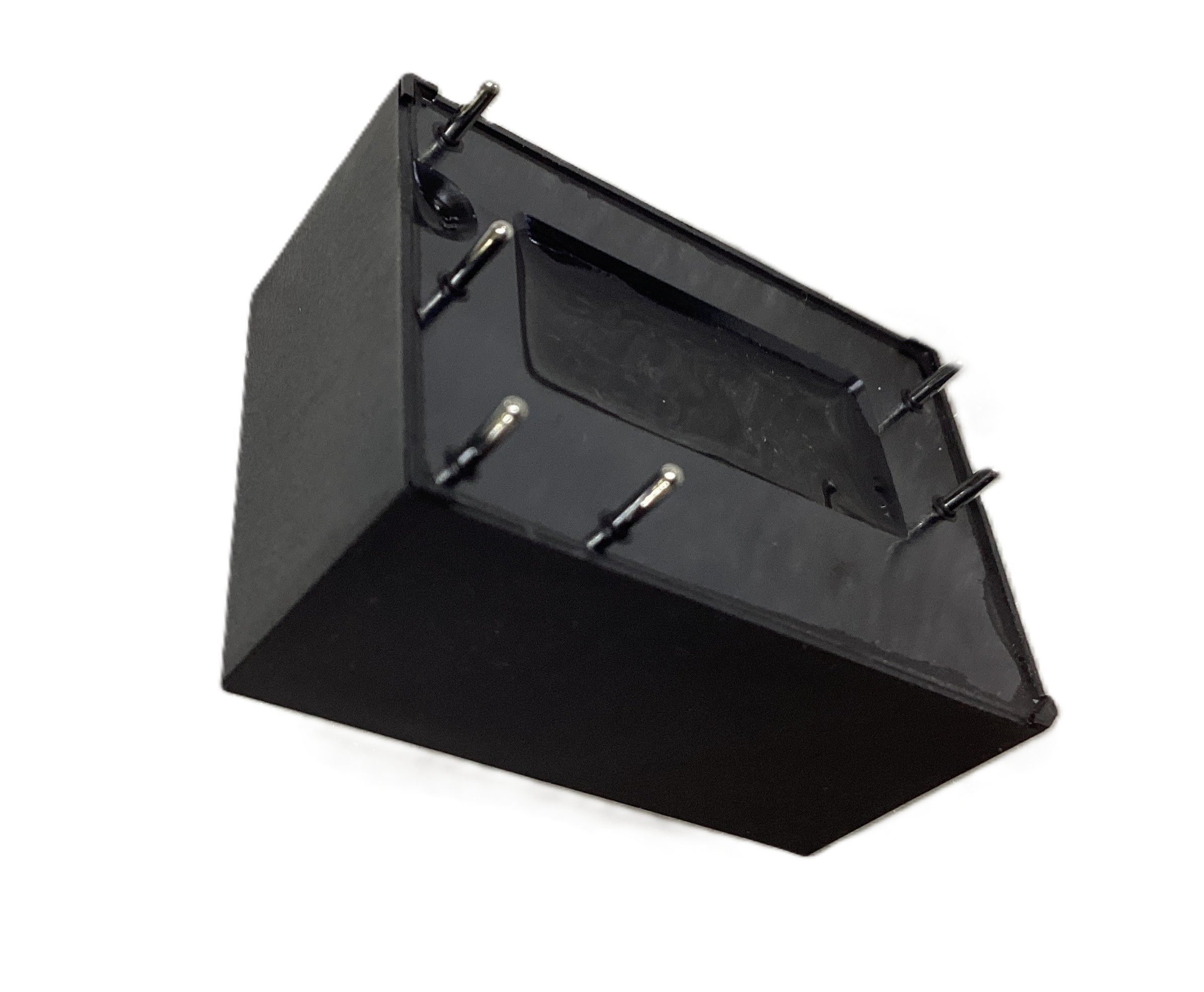

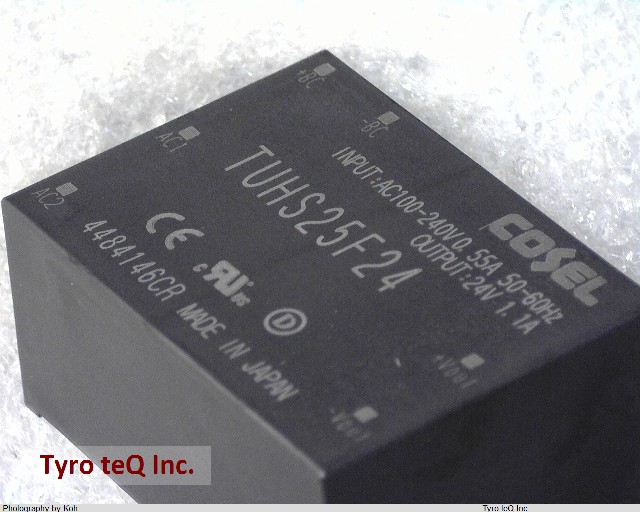

TUHS25F24 データシート

Name: TUHS25F24
Brand: COSEL
SKU: 300392556-0000-0000-0000

TUHS25F24 - COSEL の商品詳細ページです。

２営業日以内に回答いたします

TUHS25F24 の詳細情報

型番	TUHS25F24
メーカー	COSEL
データシート
Additional Feature	ALSO OPERATES IN 120 TO 370 VDC
Analog IC - Other Type	AC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max	264 V
Input Voltage-Min	85 V
Input Voltage-Nom	100 V
JESD-30 Code	R-XXMA-P6
Length	36 mm
Number of Functions	1
Number of Outputs	1
Number of Terminals	6
Output Voltage-Max	25 V
Output Voltage-Min	23 V
Output Voltage-Nom	24 V
Package Body Material	UNSPECIFIED
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Seated Height-Max	17 mm
Surface Mount	NO
Technology	HYBRID
Terminal Form	PIN/PEG
Terminal Position	UNSPECIFIED
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Total Power Output-Max	26.4 W
Trim/Adjustable Output	NO V
Width	25.4 mm
