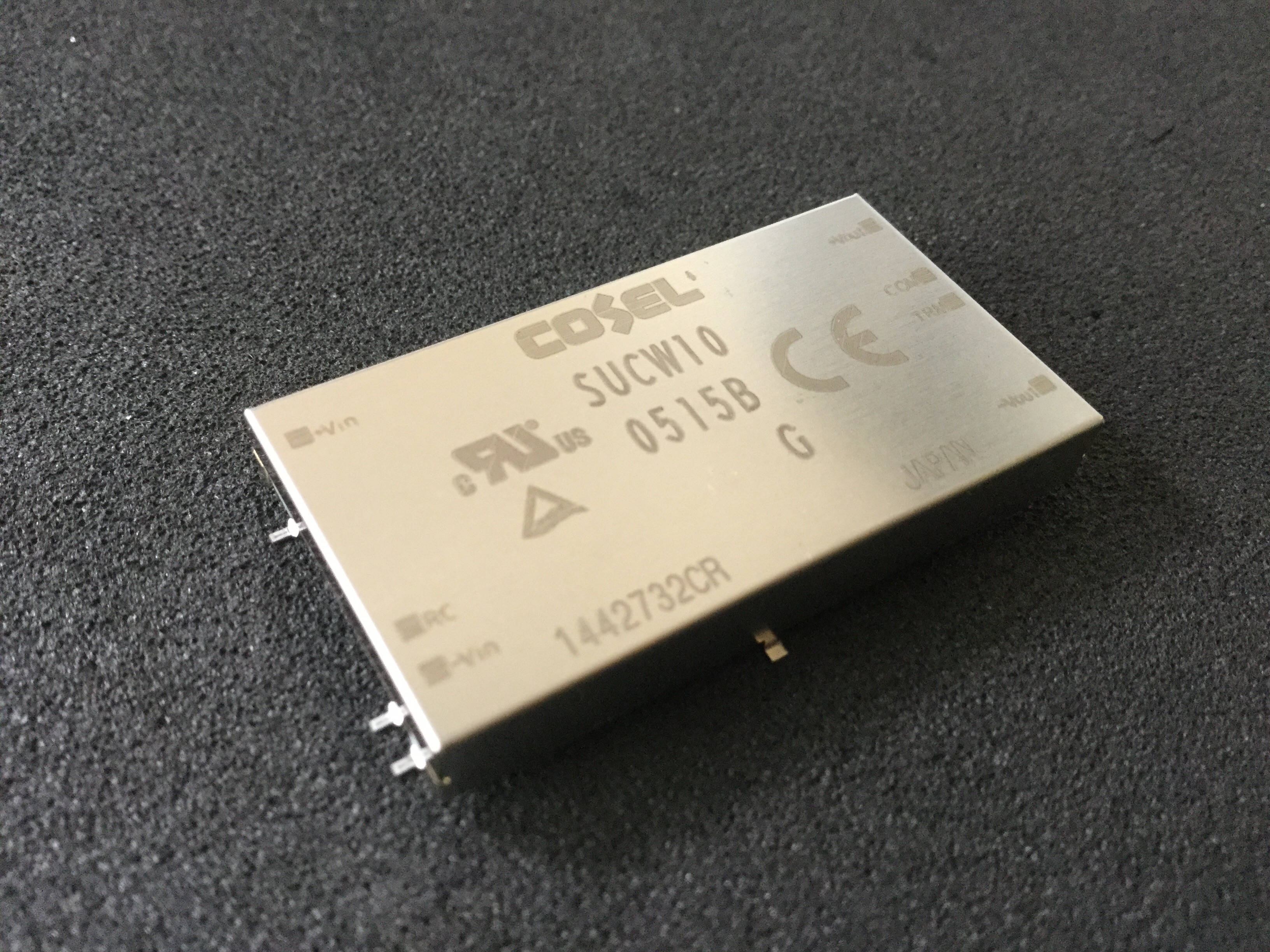

SUCW100515B データシート

Name: SUCW100515B
Brand: COSEL
SKU: 290470579-0000-0000-0000

SUCW100515B - COSEL の商品詳細ページです。

２営業日以内に回答いたします

SUCW100515B の詳細情報

型番	SUCW100515B
メーカー	COSEL
データシート
Additional Feature	ADDITIONAL -15, 30V OUTPUT AVAILABLE
Analog IC - Other Type	DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max	9 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	5 V
JESD-30 Code	R-XDMA-G7
JESD-609 Code	e3
Length	40.2 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	2
Number of Terminals	7
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	0.35 A
Output Voltage-Max	15.75 V
Output Voltage-Min	14.25 V
Output Voltage-Nom	15 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	MODULE(UNSPEC)
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	225
Qualification Status	Not Qualified
Seated Height-Max	7.5 mm
Sub Category	Other Analog ICs
Surface Mount	YES
Technology	HYBRID
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Total Power Output-Max	10.5 W
Trim/Adjustable Output	YES V
Width	22 mm
