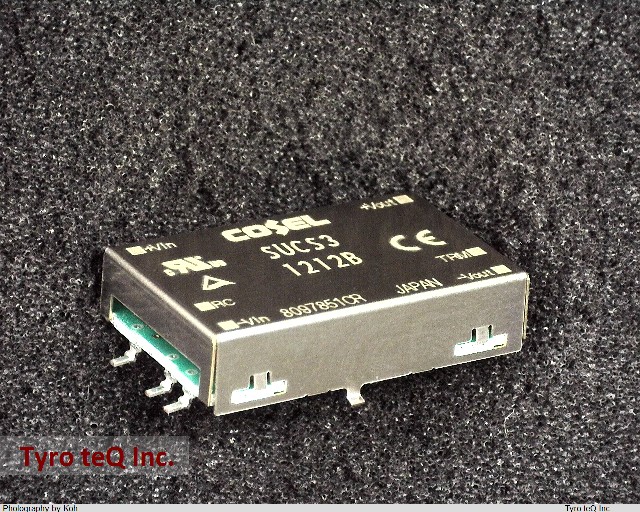

SUCS31212B データシート

Name: SUCS31212B
Brand: COSEL
SKU: 290413198-0000-0000-0000

SUCS31212B - COSEL の商品詳細ページです。

２営業日以内に回答いたします

SUCS31212B の詳細情報

型番	SUCS31212B
メーカー	COSEL
データシート
Analog IC - Other Type	DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max	18 V
Input Voltage-Min	9 V
Input Voltage-Nom	12 V
JESD-30 Code	R-XDMA-G6
JESD-609 Code	e3
Length	25 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	6
Output Voltage-Max	12.6 V
Output Voltage-Min	11.4 V
Output Voltage-Nom	12 V
Package Body Material	UNSPECIFIED
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	225
Seated Height-Max	7.5 mm
Surface Mount	YES
Technology	HYBRID
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Total Power Output-Max	3 W
Trim/Adjustable Output	YES V
Width	16.1 mm
