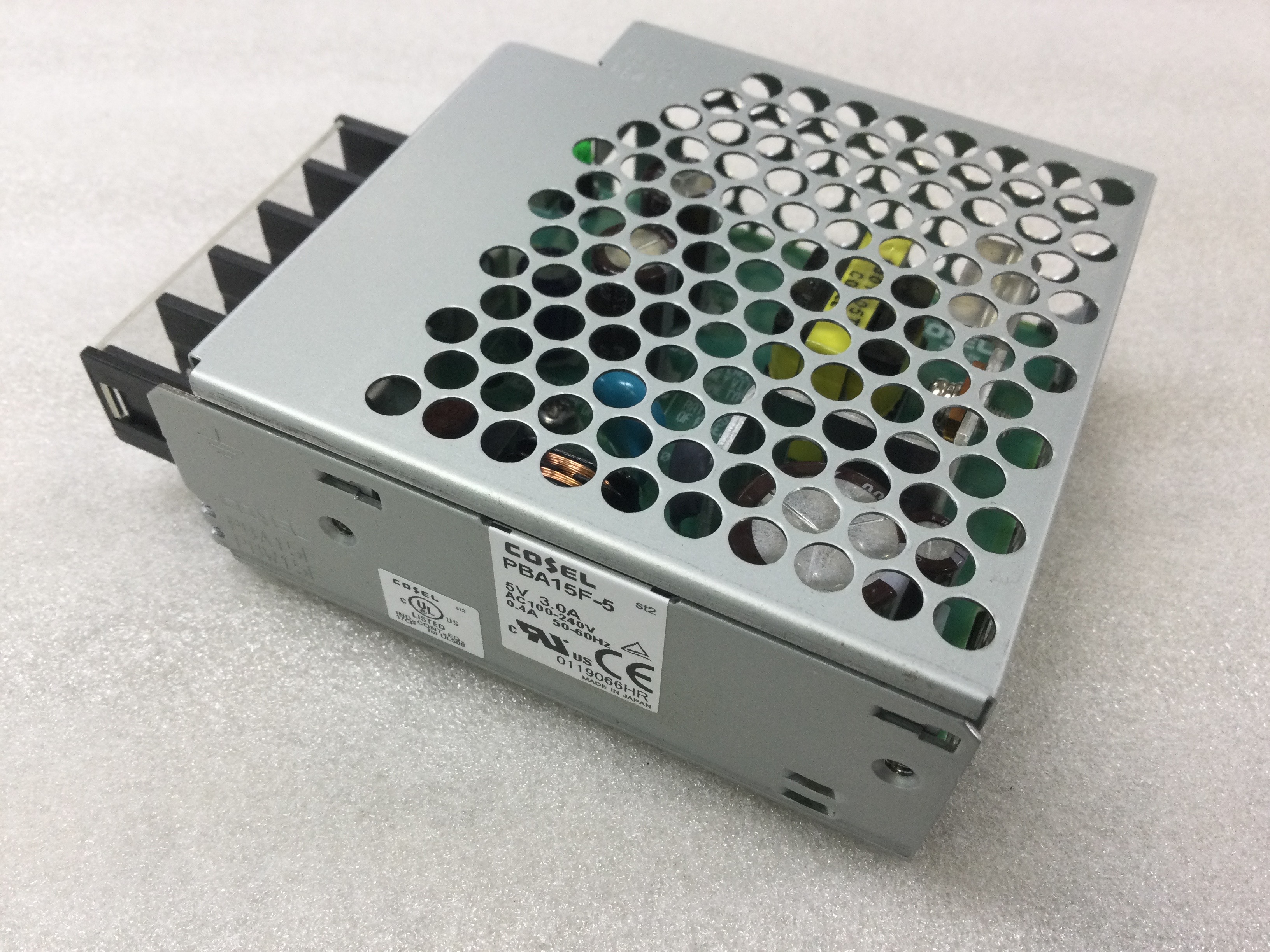

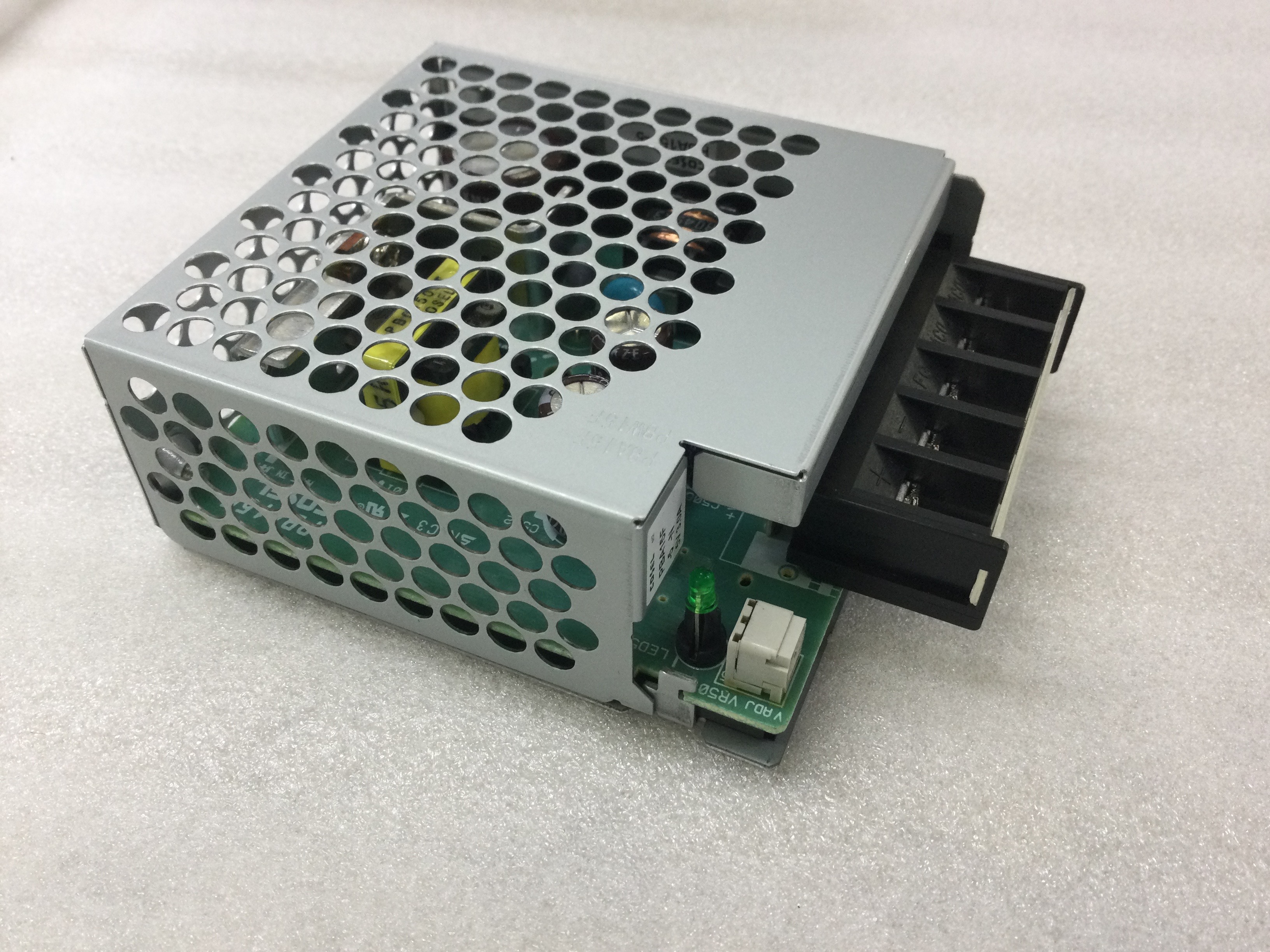

PBA15F-5 データシート

Name: PBA15F-5
Brand: COSEL
SKU: 260104433-0000-0000-0000

PBA15F-5 - COSEL の商品詳細ページです。

２営業日以内に回答いたします

PBA15F-5 の詳細情報

型番	PBA15F-5
メーカー	COSEL
データシート
Additional Feature	ALSO OPERATE WITH 110V TO 370VDC
Analog IC - Other Type	AC-DC POWER FACTOR CORRECTION MODULE
Approvals	CSA, TUV, UL V
Control Mode	VOLTAGE-MODE
Efficiency (Main Output)	74 %
Height	31 mm
Input Voltage-Max	264 V
Input Voltage-Min	85 V
Input Voltage-Nom	100 V
JESD-30 Code	R-XXMA-X6
Length	85 mm
Line Regulation-Max	0.01 %
Load Regulation-Max	0.02 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	6
Operating Temperature-Max	71 Cel
Operating Temperature-Min	-10 Cel
Output Current-Max	3 A
Output Voltage-Max	5.5 V
Output Voltage-Min	4.5 V
Output Voltage-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Protection(s)	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE V
Ripple Voltage (Main Out)	0.04242 Vrms
Sub Category	Power Supply Modules
Surface Mount	NO
Technology	HYBRID
Temperature Grade	COMMERCIAL EXTENDED
Terminal Form	UNSPECIFIED
Terminal Position	UNSPECIFIED
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Total Power Output-Max	15 W
Trim/Adjustable Output	NO V
Width	78 mm
