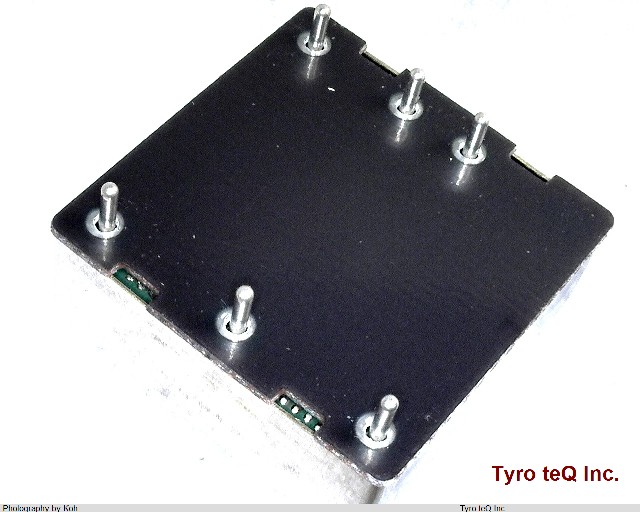

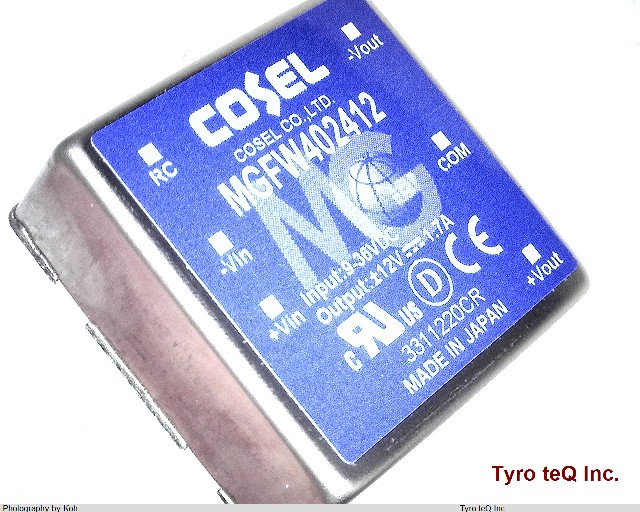

MGFW402412 データシート

Name: MGFW402412
Brand: COSEL
SKU: 230761292-0000-0000-0000

MGFW402412 - COSEL の商品詳細ページです。

No Image

２営業日以内に回答いたします

MGFW402412 の詳細情報

型番	MGFW402412
メーカー	COSEL
データシート
Analog IC - Other Type	DC-DC REGULATED POWER SUPPLY MODULE
Approvals	UL, EN, CSA V
Control Mode	VOLTAGE-MODE
Efficiency (Main Output)	91 %
Height	10.4 mm
Input Voltage-Max	36 V
Input Voltage-Min	9 V
Input Voltage-Nom	24 V
JESD-30 Code	S-XDMA-P6
Length	25.4 mm
Line Regulation-Max	0.0072 %
Load Regulation-Max	5 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	6
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	1.7 A
Output Voltage-Max	12.492 V
Output Voltage-Min	11.765 V
Output Voltage-Nom	12 V
Package Body Material	UNSPECIFIED
Package Code	DMA
Package Shape	SQUARE
Package Style	MICROELECTRONIC ASSEMBLY Meter
Protection(s)	OVER CURRENT; OVER VOLTAGE V
Ripple Voltage (Main Out)	0.04242 Vrms
Seated Height-Max	10.4 mm
Surface Mount	NO
Technology	HYBRID
Temperature Grade	INDUSTRIAL
Terminal Form	PIN/PEG
Terminal Position	DUAL
Total Power Output-Max	40.8 W
Trim/Adjustable Output	NO V
Warm-Up Time	0.03 Seconds
Width	25.4 mm
