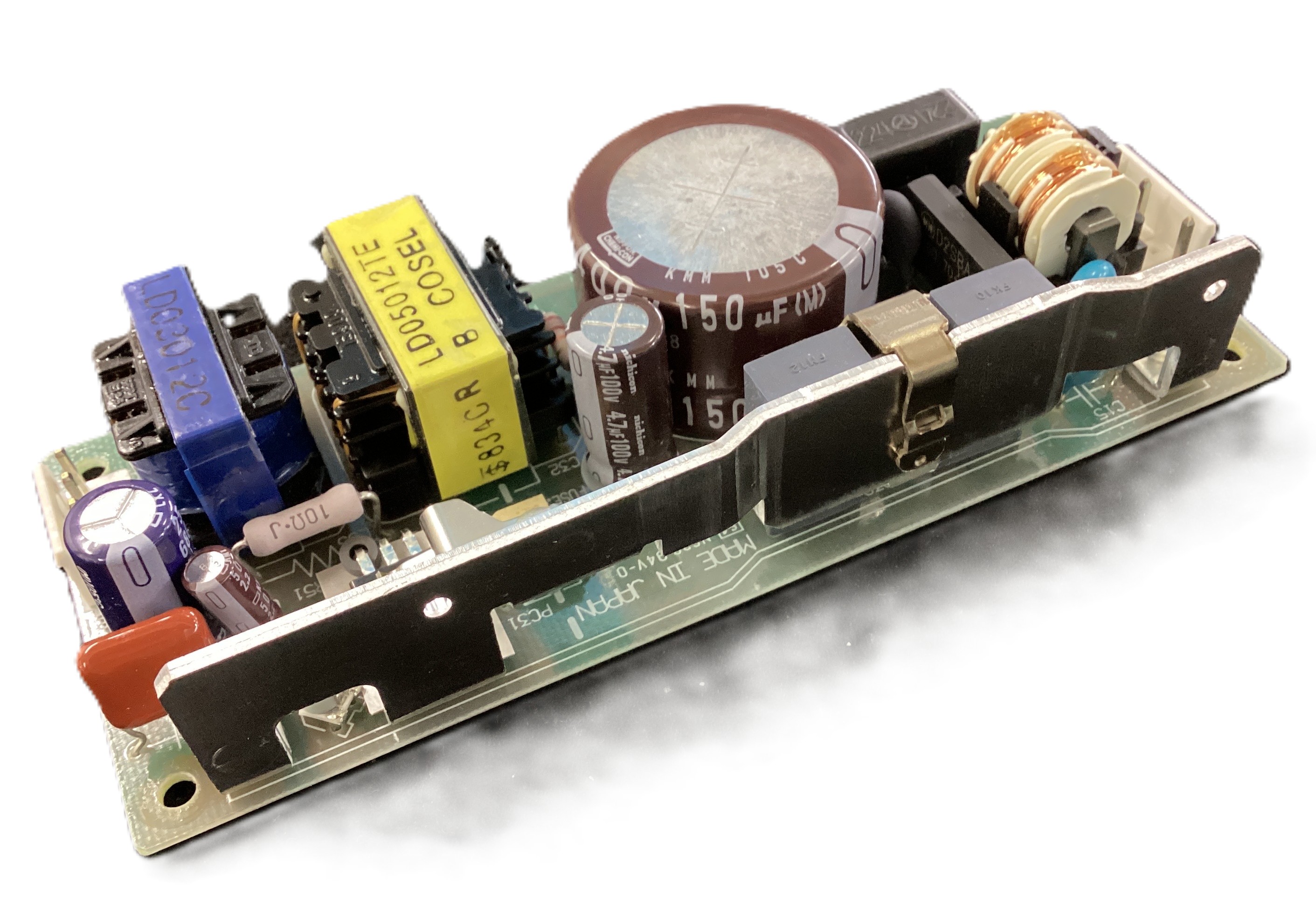

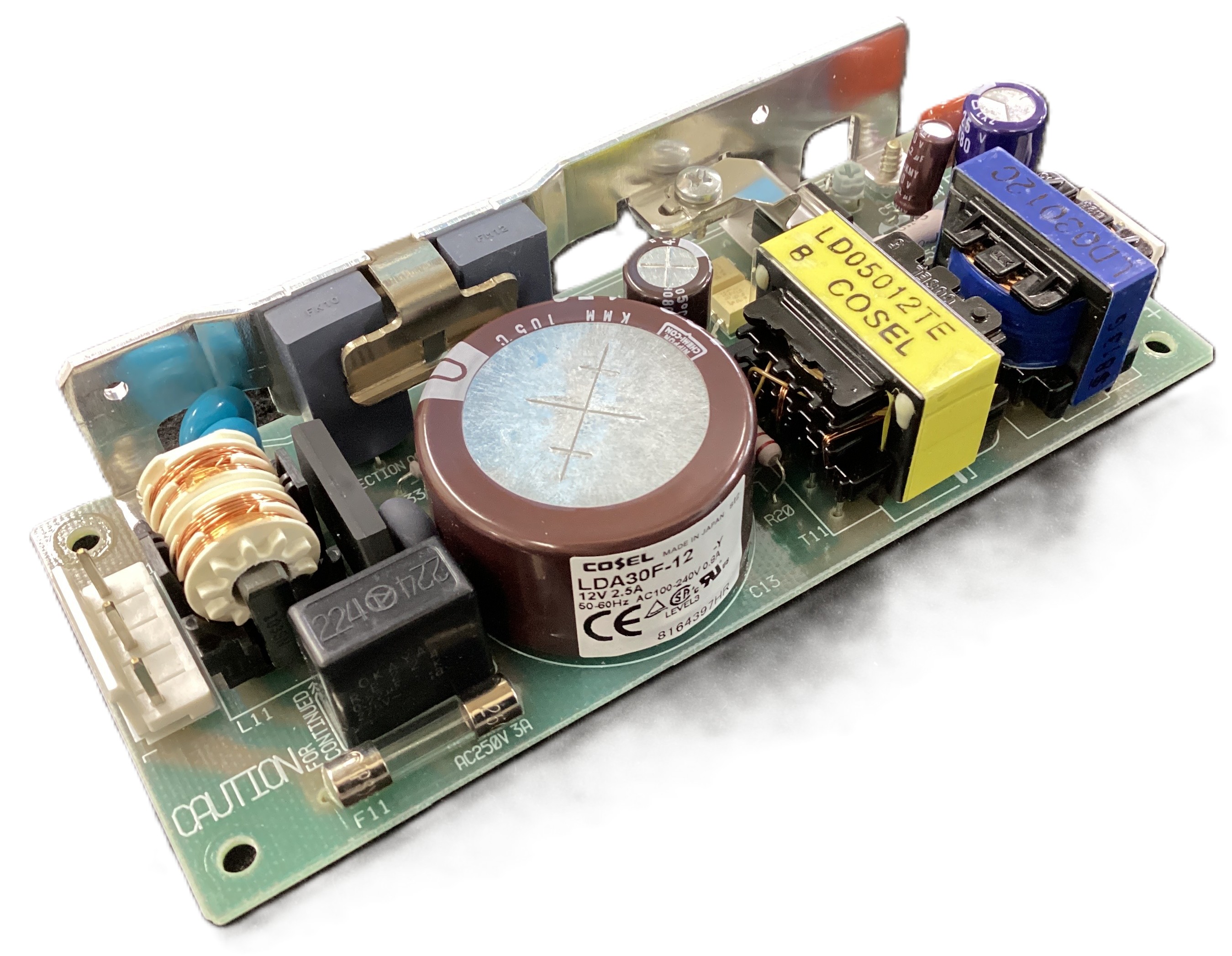

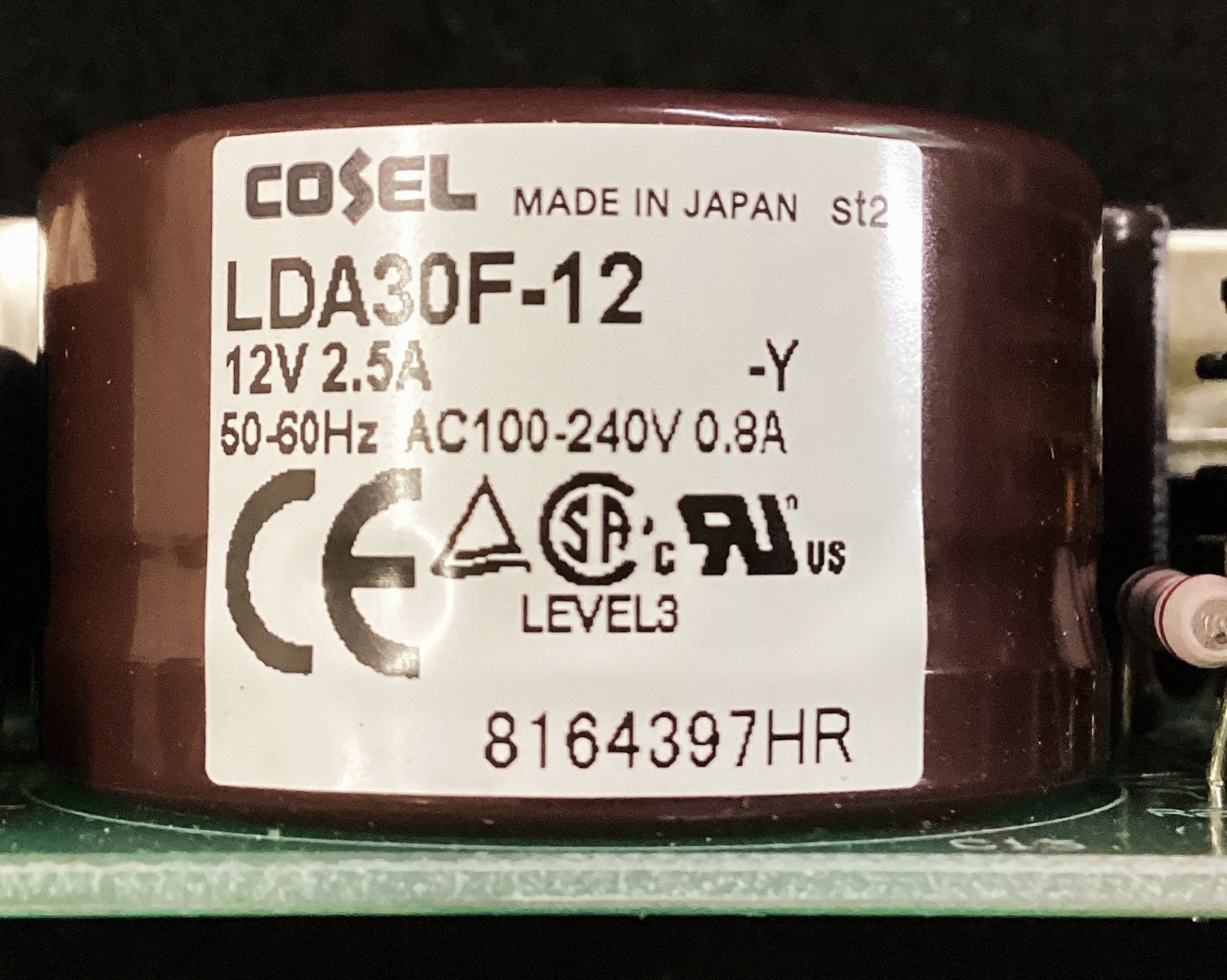

LDA30F-12 データシート

Name: LDA30F-12
Brand: COSEL
SKU: 220171000-0000-0000-0000

LDA30F-12 - COSEL の商品詳細ページです。

No Image

２営業日以内に回答いたします

LDA30F-12 の詳細情報

型番	LDA30F-12
メーカー	COSEL
データシート
Additional Feature	ALSO OPERATE WITH 110-170VDC
Analog IC - Other Type	AC-DC REGULATED POWER SUPPLY MODULE
Approvals	UL, EN, IEC, CSA, FCC V
Efficiency (Main Output)	77 %
Input Voltage-Max	264 V
Input Voltage-Min	85 V
Input Voltage-Nom	100 V
JESD-30 Code	R-XXFM-X
Length	133 mm
Line Regulation-Max	0.000576 %
Load Regulation-Max	0.833333 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	7
Operating Temperature-Max	50 Cel
Operating Temperature-Min	-10 Cel
Output Current-Max	2.5 A
Output Voltage-Max	12.5 V
Output Voltage-Min	11.5 V
Output Voltage-Nom	12 V
Package Body Material	UNSPECIFIED
Package Code	XFM
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Protection(s)	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE V
Ripple Voltage (Main Out)	0.06363 Vrms
Surface Mount	NO
Technology	HYBRID
Temperature Grade	COMMERCIAL
Terminal Form	UNSPECIFIED
Terminal Position	UNSPECIFIED
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Total Power Output-Max	30 W
Trim/Adjustable Output	NO V
Warm-Up Time	0.2 Seconds
Width	55 mm
