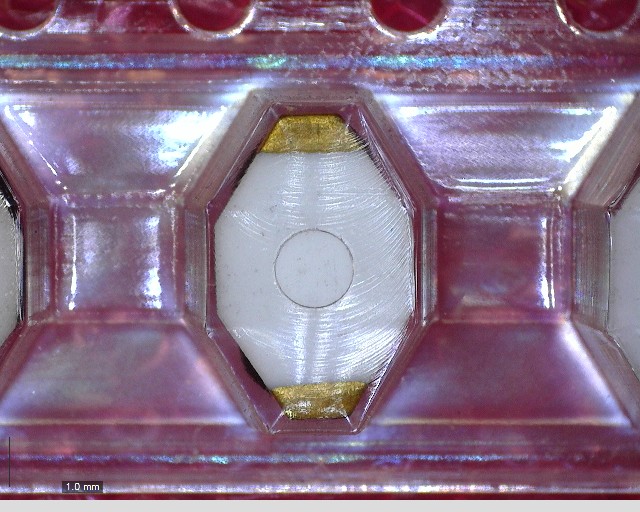

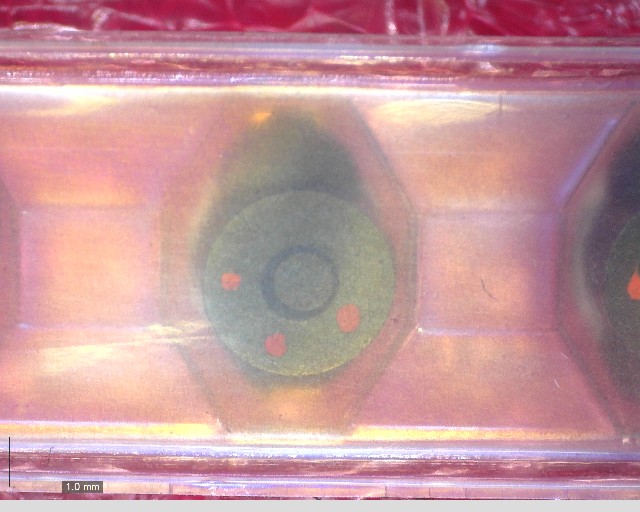

DT1608C-223
1
-
- 個
２営業日以内に回答いたします
DT1608C-223 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | DT1608C-223 |
|---|---|
| メーカー | COILCRAFT |
| Case/Size Code | 2618 |
| Construction | Magnetic Shielded |
| Core Material | FERRITE |
| DC Resistance | 0.16 ohm |
| Inductance-Nom (L) | 22 uH |
| Inductor Application | POWER INDUCTOR |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| JESD-609 Code | e0 |
| Number of Functions | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Package Height | 2.92 mm |
| Package Length | 6.6 mm |
| Package Style | SMT Meter |
| Package Width | 4.45 mm |
| Packing Method | TR |
| Rated Current-Max | 0.5 A |
| Self Resonance Frequency | 25 MHz |
| Shape/Size Description | CYLINDRICAL PACKAGE |
| Shielded | YES |
| Special Feature | MAXIMUM SWITCHING FREQUENCY IS 1 MHZ |
| Surface Mount | YES |
| Terminal Finish | Gold (Au) - with Nickel (Ni) barrier |
| Terminal Placement | DUAL ENDED |
| Terminal Shape | WRAPAROUND |
| Test Frequency | 0.1 MHz |
| Tolerance | 20 % |
| 会社名称 | Coilcraft, Inc. |
|---|---|
| 設立 | 1945 |
| 所在地 | 1102 Silver Lake Road,Cary IL 60013 United States |
| URL | URL:http://www.coilcraft.com/ |
