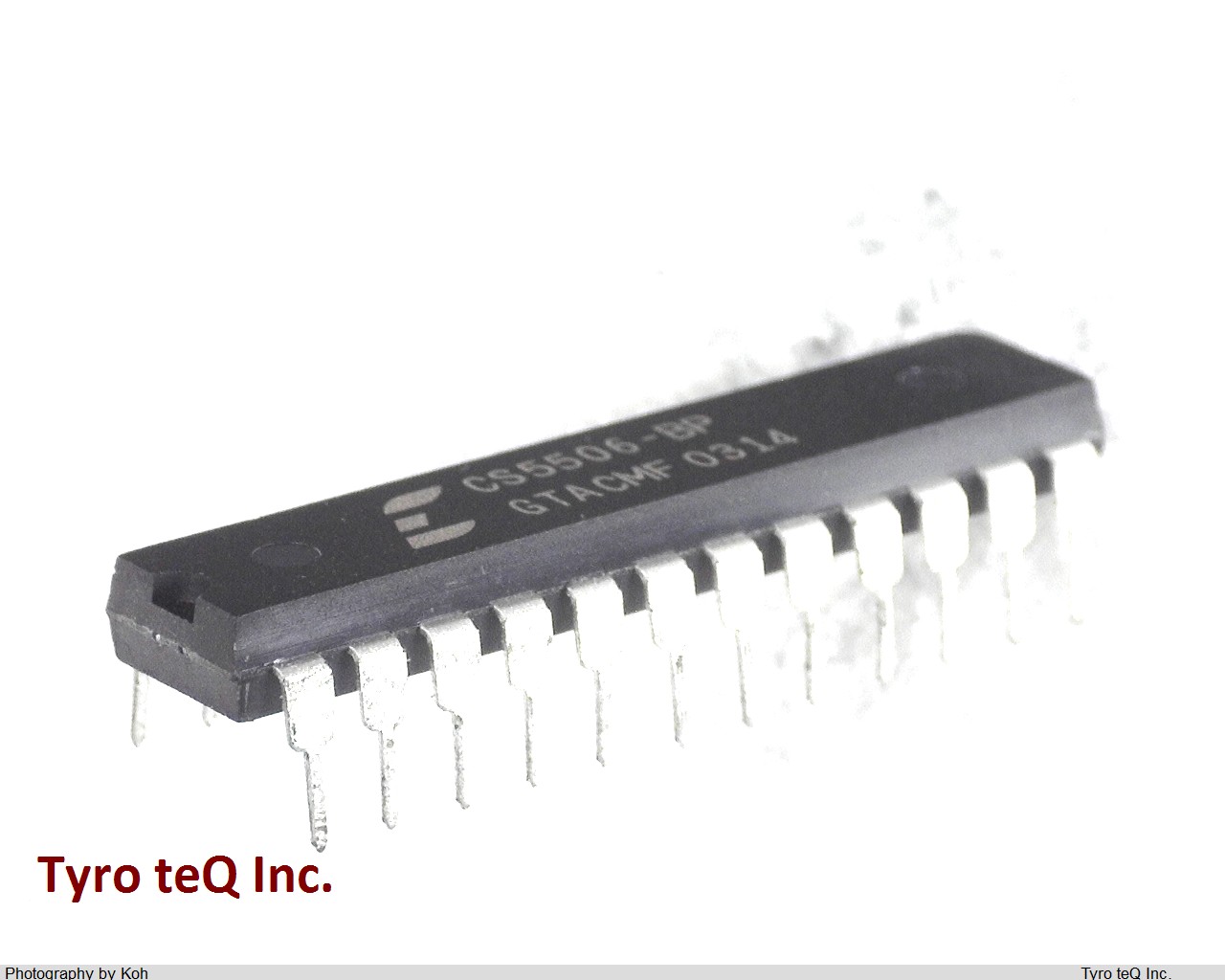

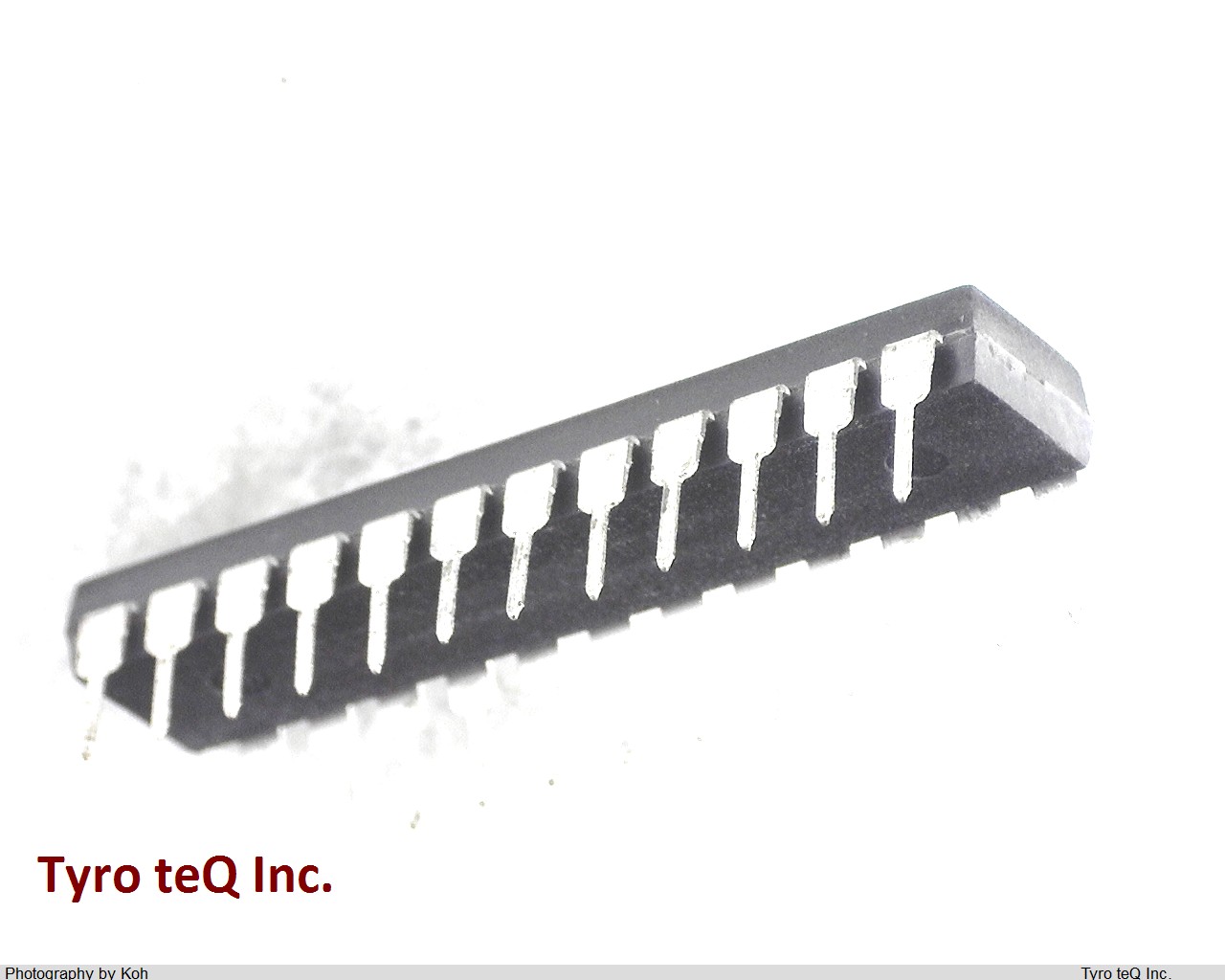

CS5506-BP

Name: CS5506-BP
Brand: CIRRUS
SKU: 130589007-0000-0000-0000

CS5506-BP - CIRRUS の商品詳細ページです。

２営業日以内に回答いたします

CS5506-BP の詳細情報

型番	CS5506-BP
メーカー	CIRRUS
Analog Input Voltage-Max	2.5 V
Analog Input Voltage-Min	-2.5 V
Conversion Time-Max	54000 us
Converter Type	ADC, DELTA-SIGMA
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e0
Length	31.88 mm
Linearity Error-Max (EL)	0.0015 %
Negative Supply Voltage-Nom	-5 V
Number of Analog In Channels	4
Number of Bits	20
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	BINARY, OFFSET BINARY
Output Format	SERIAL
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP24,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5/+-5 V
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
