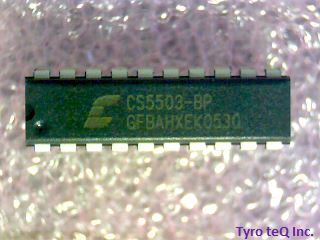

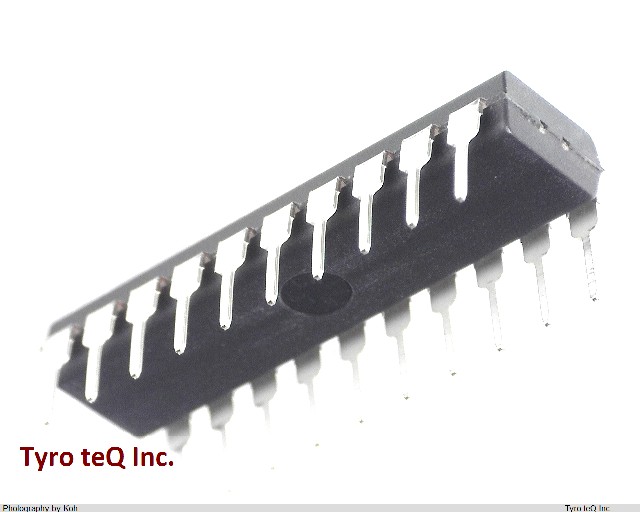

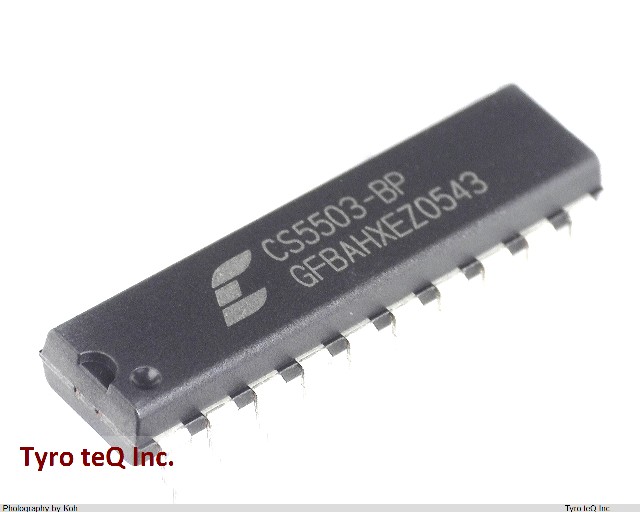

CS5503-BP データシート

Name: CS5503-BP
Brand: CIRRUS
SKU: 130348895-0000-0000-0000

CS5503-BP - CIRRUS の商品詳細ページです。

２営業日以内に回答いたします

CS5503-BP の詳細情報

型番	CS5503-BP
メーカー	CIRRUS
データシート
Analog Input Voltage-Max	2.5 V
Analog Input Voltage-Min	-5.5 V
Converter Type	ADC, DELTA-SIGMA
JESD-30 Code	R-PDIP-T20
JESD-609 Code	e0
Length	25.4 mm
Linearity Error-Max (EL)	0.0015 %
Negative Supply Voltage-Nom	-5 V
Number of Analog In Channels	1
Number of Bits	20
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	BINARY
Output Format	SERIAL
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	+-5 V
Qualification Status	Not Qualified
Sample Rate	0.004 MHz
Seated Height-Max	4.57 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
