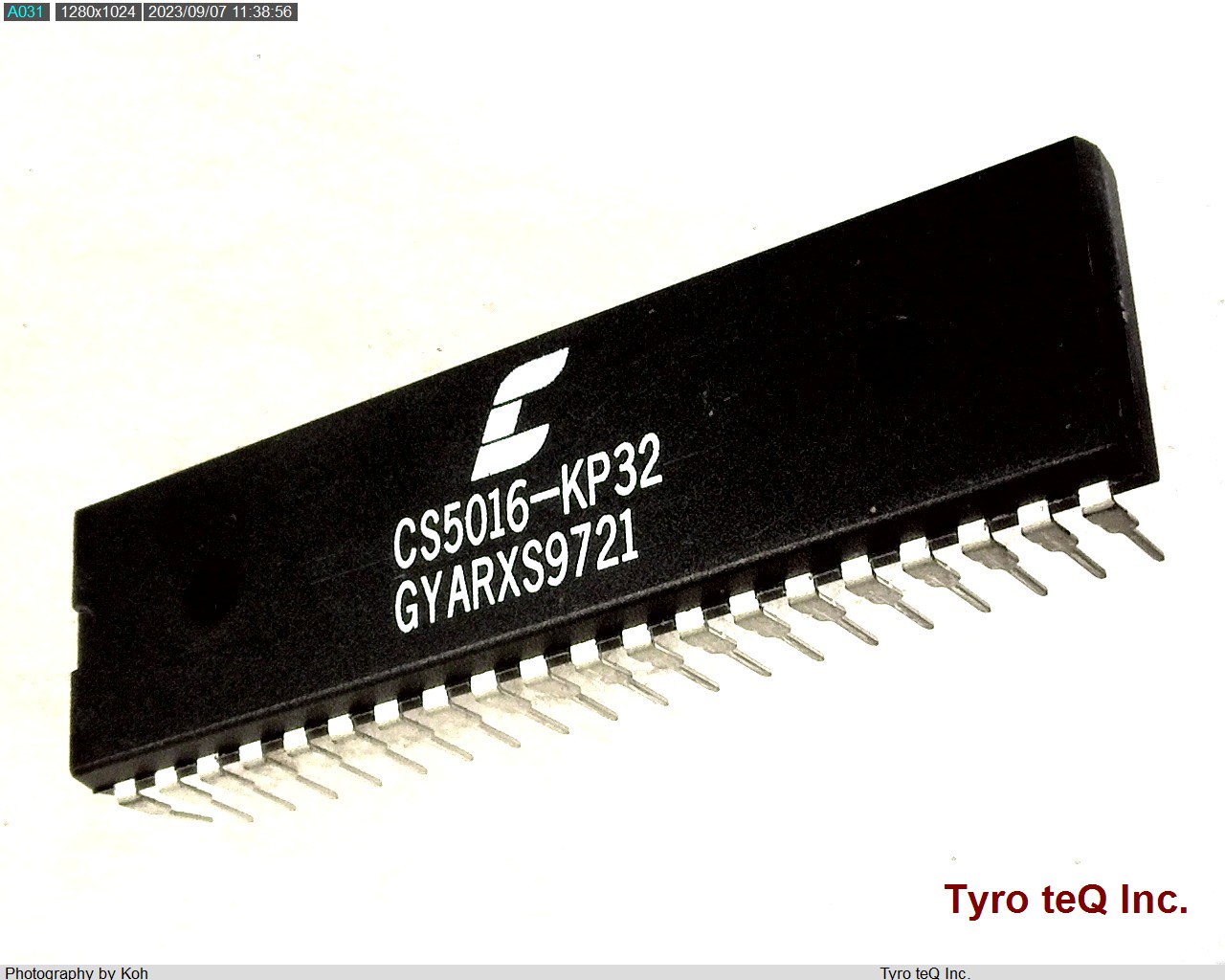

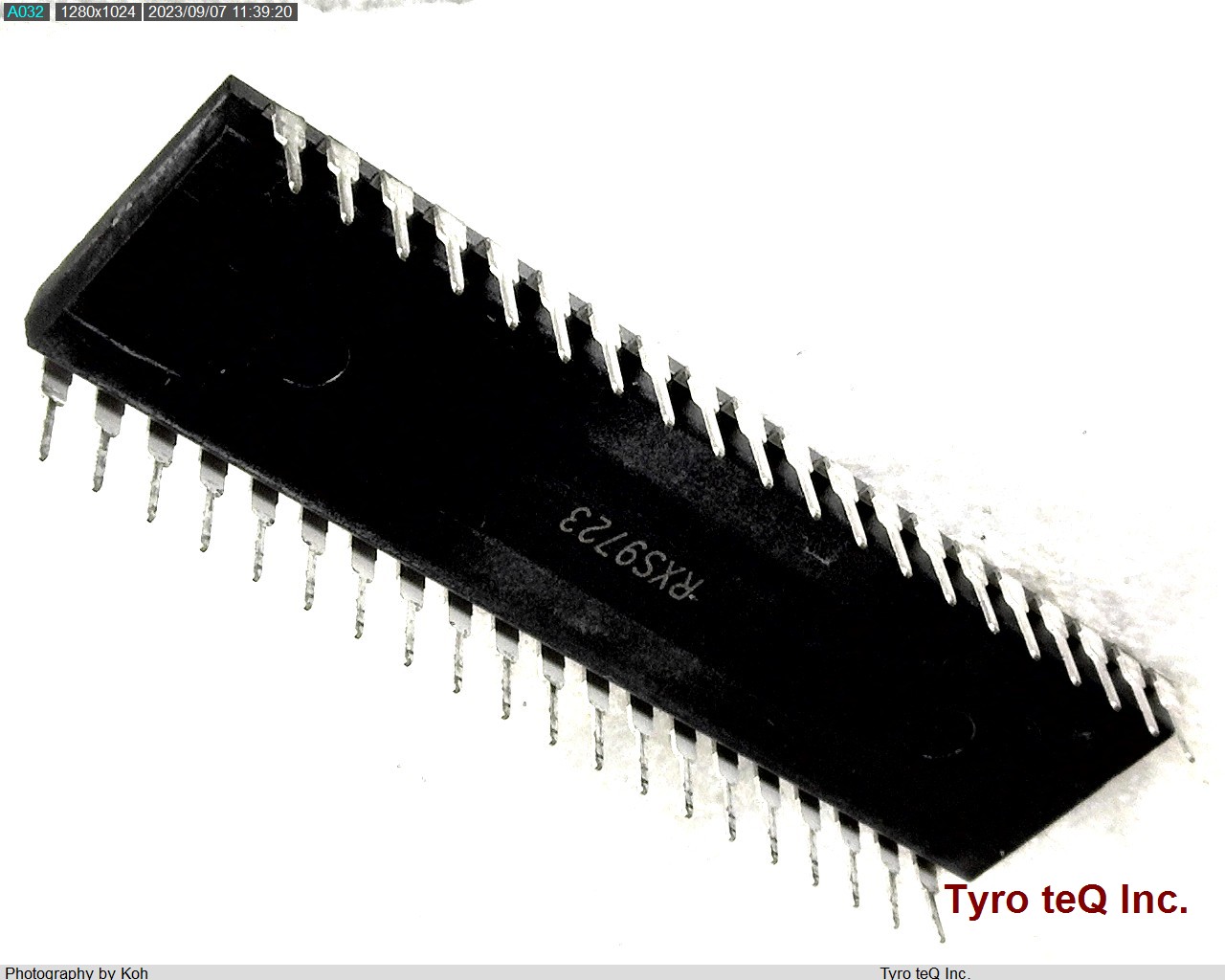

CS5016-KP32

Name: CS5016-KP32
Brand: CIRRUS
SKU: 400066736-0000-0000-0000

CS5016-KP32 - CIRRUS の商品詳細ページです。

２営業日以内に回答いたします

CS5016-KP32 の詳細情報

型番	CS5016-KP32
メーカー	CIRRUS
Analog Input Voltage-Max	4.5 V
Analog Input Voltage-Min	-6.3 V
Conversion Time-Max	32.5 us
Converter Type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code	R-PDIP-T40
JESD-609 Code	e0
Length	52.07 mm
Linearity Error-Max (EL)	0.0015 %
Negative Supply Voltage-Nom	-5 V
Number of Analog In Channels	1
Number of Bits	16
Number of Functions	1
Number of Terminals	40
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Bit Code	BINARY
Output Format	PARALLEL, WORD
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	+-5 V
Qualification Status	Not Qualified
Sample Rate	0.0265 MHz
Sample-and-Hold/Track-and-Hold	TRACK
Seated Height-Max	5.08 mm
Sub Category	Analog to Digital Converters
Supply Current-Max	19 mA
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	15.24 mm
