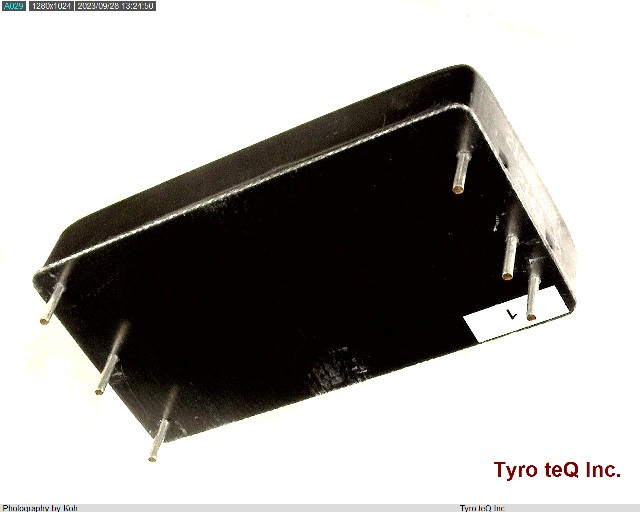

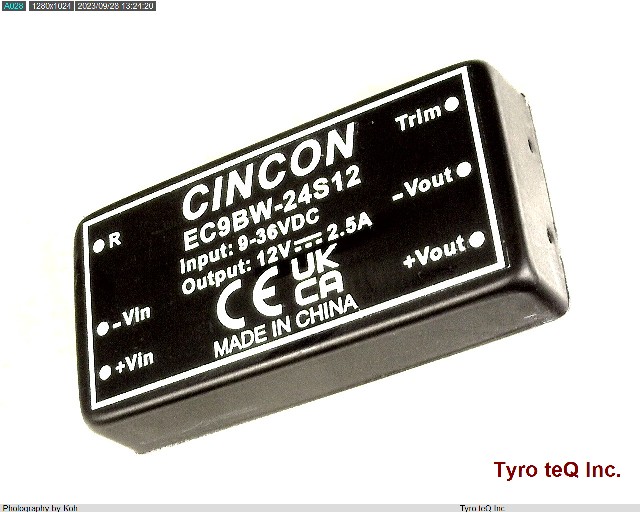

EC9BW-24S12
  • EC9BW-24S12
  • EC9BW-24S12
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

EC9BW-24S12 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番EC9BW-24S12
メーカーCINCON
Analog IC - Other Type DC-DC REGULATED POWER SUPPLY MODULE
Approvals EN, IEC, UL V
Efficiency (Main Output) 90.5 %
Height 11.2 mm
Input Voltage-Max 36 V
Input Voltage-Min 9 V
Input Voltage-Nom 24 V
JESD-30 Code R-MDMA-P6
Length 50.8 mm
Line Regulation-Max 0.2 %
Load Regulation-Max 0.5 %
Number of Functions 1
Number of Outputs 1
Number of Terminals 6
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Output Current-Max 2.5 A
Output Voltage-Max 13.2 V
Output Voltage-Min 10.8 V
Output Voltage-Nom 12 V
Package Body Material METAL
Package Code DMA
Package Shape RECTANGULAR
Package Style MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel) NOT SPECIFIED
Protection(s) OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE V
Ripple Voltage (Main Out) 0.03535 Vrms
Seated Height-Max 11.2 mm
Surface Mount NO
Switching Frequency-Max 430 kHz
Technology HYBRID
Temperature Grade INDUSTRIAL
Terminal Form PIN/PEG
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Total Power Output-Max 30 W
Trim/Adjustable Output YES V
Warm-Up Time 0.005 Seconds
Width 25.4 mm
会社名称Cincon Electronics Co., Ltd.
設立1991
所在地14F , No. 306, Section 4, Hsin Yi Road Taipei, Taiwan R.O.C.
URLhttp://www.cincon.com.tw/
