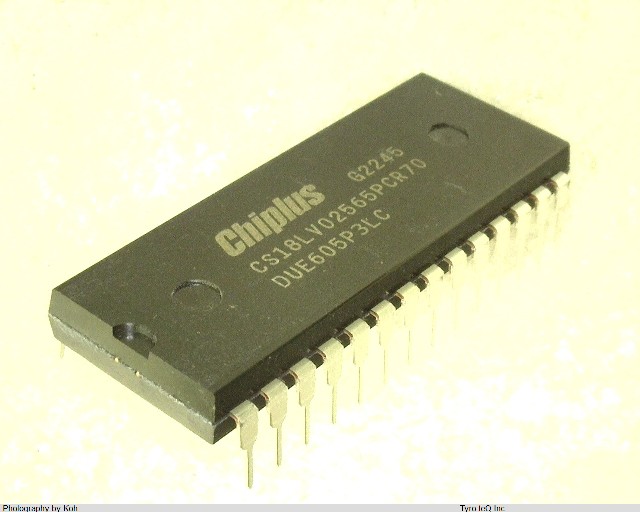

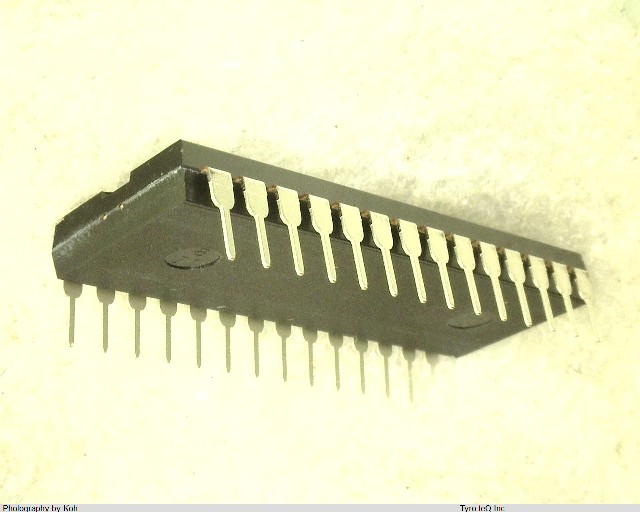

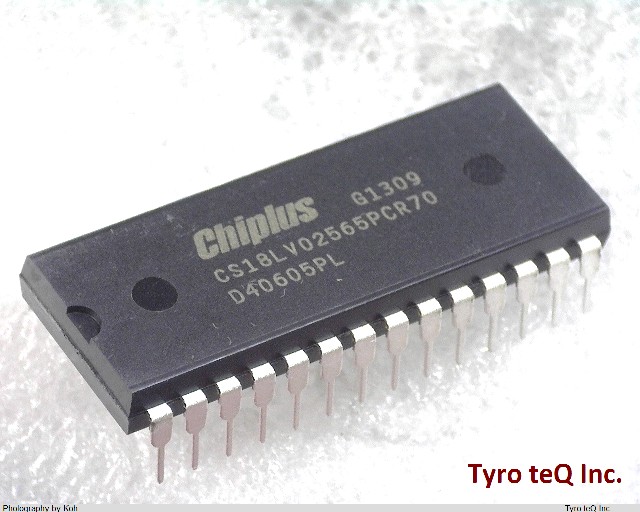

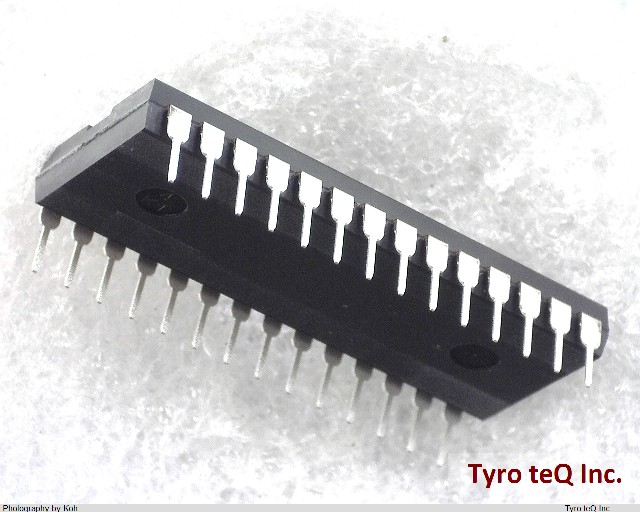

CS18LV02565PCR70
  • CS18LV02565PCR70
  • CS18LV02565PCR70
  • CS18LV02565PCR70
  • CS18LV02565PCR70
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

CS18LV02565PCR70 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番CS18LV02565PCR70
メーカーCHIPLUS
Access Time-Max 70 ns
Additional Feature SEATED HT-CALCULATE
I/O Type COMMON
JESD-30 Code R-PDIP-T28
Length 37.084 mm
Memory Density 262144 bit
Memory IC Type STANDARD SRAM
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 28
Number of Words 32768 words
Number of Words Code 32K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Organization 32KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 250
Power Supplies 5 V
Qualification Status Not Qualified
Seated Height-Max 4.191 mm
Standby Current-Max 1.2E-6 Amp
Standby Voltage-Min 2 V
Sub Category SRAMs
Supply Current-Max 0.03 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 15.24 mm
会社名称Chiplus Semiconductor Corp.
設立2002
所在地4F, No 15, Industry East Rd. 9, Science-Based Industrial Park, Hsinchu, Taiwan 300, R.O.C
URLhttp://www.chiplus.com/
