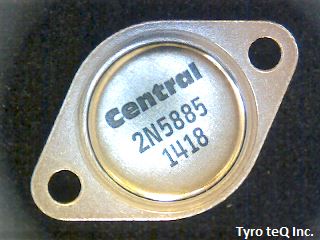

2N5885

Name: 2N5885
Brand: CENTRAL SEMI
SKU: 30253792-0000-0000-0000

2N5885 - CENTRAL SEMI の商品詳細ページです。

２営業日以内に回答いたします

2N5885 の詳細情報

型番	2N5885
メーカー	CENTRAL SEMI
Additional Feature	HIGH RELIABILITY
Case Connection	COLLECTOR
Collector Current-Max (IC)	20 A
Collector-base Capacitance-Max	500 pF
Collector-emitter Voltage-Max	60 V
Configuration	SINGLE
DC Current Gain-Min (hFE)	4
Fall Time-Max (tf)	800 ns
JEDEC-95 Code	TO-3
JESD-30 Code	O-MBFM-P2
JESD-609 Code	e0
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	175 Cel
Operating Temperature-Min	-65 Cel
Package Body Material	METAL
Package Shape	ROUND
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	235
Polarity/Channel Type	NPN
Power Dissipation Ambient-Max	200 W
Power Dissipation-Max (Abs)	200 W
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Finish	MATTE TIN
Terminal Form	PIN/PEG
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Transistor Application	SWITCHING
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	4 MHz
Turn-off Time-Max (toff)	1800 ns
Turn-on Time-Max (ton)	700 ns
VCEsat-Max	1 V
