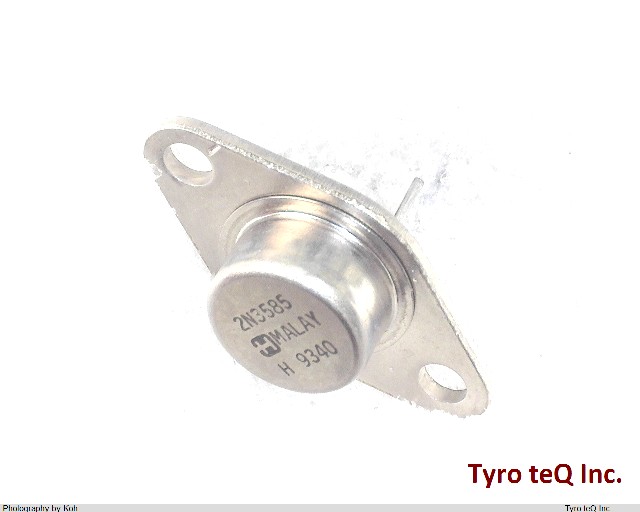

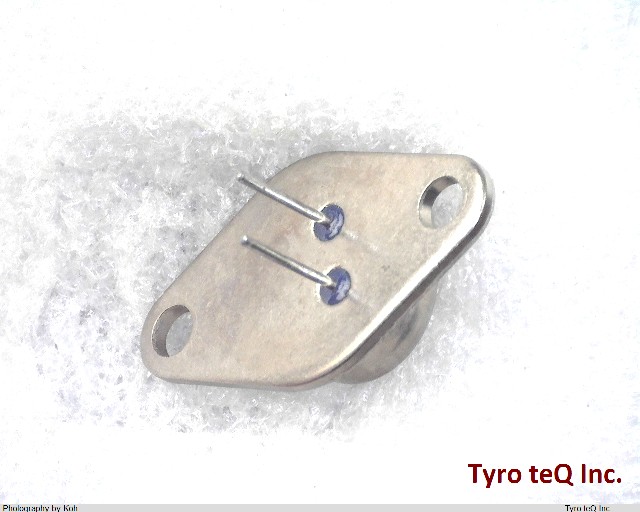

2N3585
1
53時間34分後
以内に見積もり依頼を頂ければ、
04月23日(火) 9:00
までに見積もり回答いたします。
- 個
2N3585 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 2N3585 |
|---|---|
| メーカー | CENTRAL SEMI |
| Additional Feature | HIGH RELIABILITY |
| Case Connection | COLLECTOR |
| Collector Current-Max (IC) | 1 A |
| Collector-base Capacitance-Max | 120 pF |
| Collector-emitter Voltage-Max | 300 V |
| Configuration | SINGLE |
| DC Current Gain-Min (hFE) | 8 |
| Fall Time-Max (tf) | 3000 ns |
| JEDEC-95 Code | TO-66 |
| JESD-30 Code | O-MBFM-P2 |
| JESD-609 Code | e0 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 200 Cel |
| Operating Temperature-Min | -65 Cel |
| Package Body Material | METAL |
| Package Shape | ROUND |
| Package Style | FLANGE MOUNT Meter |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity/Channel Type | NPN |
| Power Dissipation Ambient-Max | 35 W |
| Power Dissipation-Max (Abs) | 35 W |
| Qualification Status | Not Qualified |
| Rise Time-Max (tr) | 3000 ns |
| Sub Category | Other Transistors |
| Surface Mount | NO |
| Terminal Finish | MATTE TIN OVER NICKEL |
| Terminal Form | PIN/PEG |
| Terminal Position | BOTTOM |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| Transition Frequency-Nom (fT) | 10 MHz |
| Turn-off Time-Max (toff) | 7000 ns |
| Turn-on Time-Max (ton) | 3000 ns |
| VCEsat-Max | 0.75 V |
| 会社名称 | CENTRAL SEMICONDUCTOR CORP. |
|---|---|
| 設立 | 1974 |
| 所在地 | 145 Adams Avenue Hauppauge, NY 11788 USA |
| URL | http://www.centralsemi.com/ |
