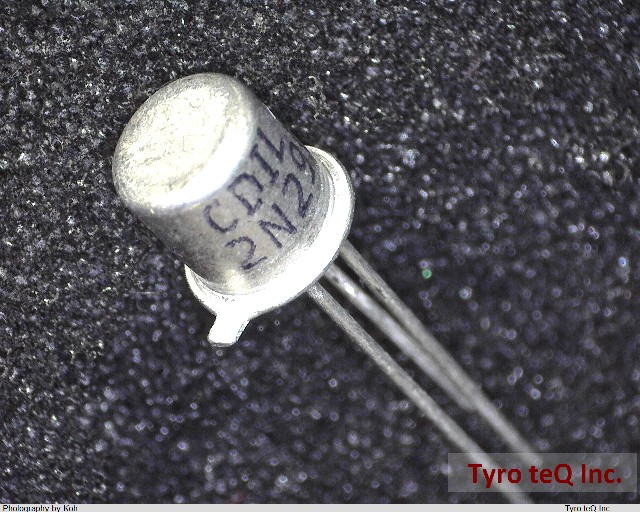

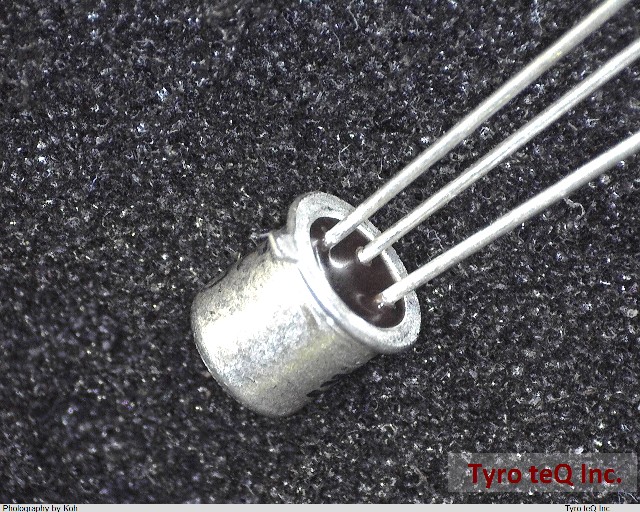

2N2907A

Name: 2N2907A
Brand: CENTRAL SEMI
SKU: 30256744-0000-0000-0000

2N2907A - CENTRAL SEMI の商品詳細ページです。

２営業日以内に回答いたします

2N2907A の詳細情報

型番	2N2907A
メーカー	CENTRAL SEMI
Additional Feature	HIGH RELIABILITY
Case Connection	COLLECTOR
Collector Current-Max (IC)	0.5 A
Collector-base Capacitance-Max	8 pF
Collector-emitter Voltage-Max	60 V
Configuration	SEPARATE, 2 ELEMENTS
DC Current Gain-Min (hFE)	40
Fall Time-Max (tf)	30 ns
JEDEC-95 Code	MO-041BA
JESD-30 Code	O-MBCY-W3
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-65 Cel
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	235
Polarity/Channel Type	PNP
Power Dissipation Ambient-Max	0.35 W
Power Dissipation-Max (Abs)	0.275 W
Qualification Status	Not Qualified
Reference Standard	AEC-Q101; IATF 16949
Rise Time-Max (tr)	40 ns
Sub Category	Other Transistors
Surface Mount	NO
Terminal Finish	GOLD
Terminal Form	NO LEAD
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	10
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	200 MHz
Turn-off Time-Max (toff)	100 ns
Turn-on Time-Max (ton)	40 ns
VCEsat-Max	0.4 V
