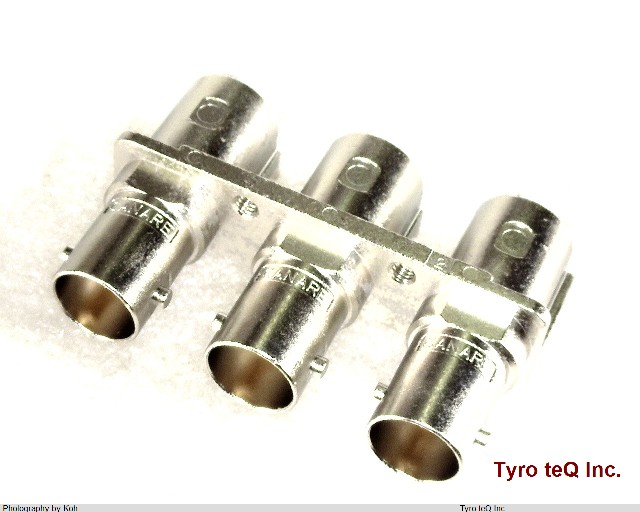

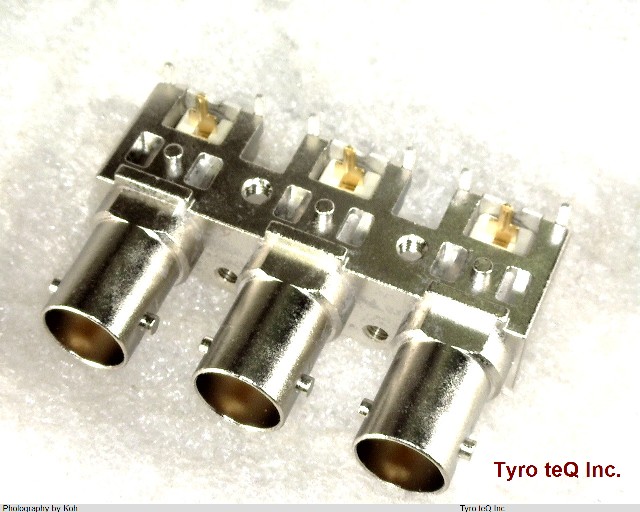

BCJ-BPLH3P データシート

Name: BCJ-BPLH3P
Brand: CANARE
SKU: 400066026-0000-0000-0000

BCJ-BPLH3P - CANARE の商品詳細ページです。

２営業日以内に回答いたします

BCJ-BPLH3P の詳細情報

型番	BCJ-BPLH3P
メーカー	CANARE
データシート
Additional Feature	VSWR MAX AT: 3 GHZ
Body/Shell Style	RECEPTACLE
Characteristic Impedance	75 ohm
Connector Type	RF BNC CONNECTOR
Contact Finish - Mating	GOLD
Contact Finish - Termination	GOLD
Contact Gender	FEMALE
Coupling Type	BAYONET
DIN Conformance	NO
Filter Feature	NO
IEC Conformance	NO
Insulator Material	POLYPHENYLENE OXIDE
JESD-609 Code	e4
MIL Conformance	NO
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD AND PANEL
Operating Frequency-Max	2.5 GHz
Option	GENERAL PURPOSE
Panel Mount	YES
Termination Type	SOLDER
VSWR	1.2
