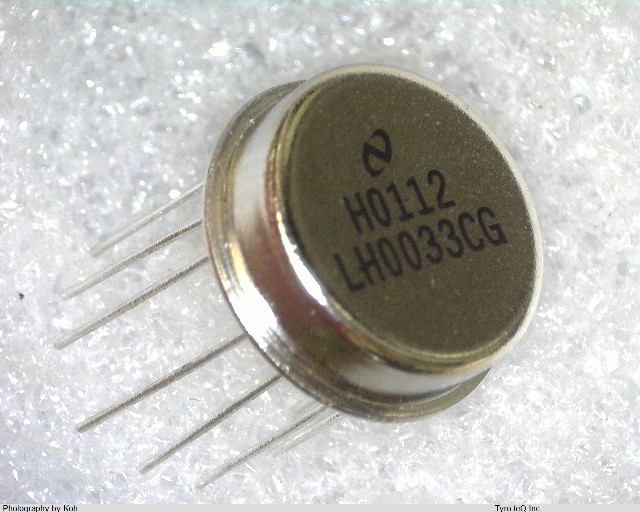

LH0033CG Calogic

LH0033CG
LH0033CG

LH0033CG - CALOGIC の商品詳細ページです。

1

83時間21分後 以内に見積もり依頼を頂ければ、
09月25日(水) 9:00 までに見積もり回答いたします。

  • 個
この商品のお問い合わせ

LH0033CG の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LH0033CG
メーカーCALOGIC
Amplifier Type BUFFER
Average Bias Current-Max (IIB) 0.005 uA
Bandwidth (3dB)-Nom 100 MHz
Bias Current-Max (IIB) @25C 0.005 uA
Input Offset Voltage-Max 25000 uV
JESD-30 Code O-MBCY-W12
JESD-609 Code e0
Neg Supply Voltage Limit-Max -20 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 1
Number of Terminals 12
Operating Temperature-Max 85 Cel
Operating Temperature-Min -25 Cel
Package Body Material METAL
Package Code QIP
Package Equivalence Code QUAD12,.4SQ
Package Shape ROUND
Package Style CYLINDRICAL Meter
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies +-15 V
Qualification Status Not Qualified
Slew Rate-Min 1000 V/us
Slew Rate-Nom 1400 V/us
Sub Category Buffer Amplifier
Supply Current-Max 24 mA
Supply Voltage Limit-Max 20 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade OTHER
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
会社名称Calogic, LLC
設立1983
所在地237 Whitney Place Fremont, CA United States
URLhttp://www.calogic.net/

LH0033CGのレビュー

LH0033CG のご注文について
