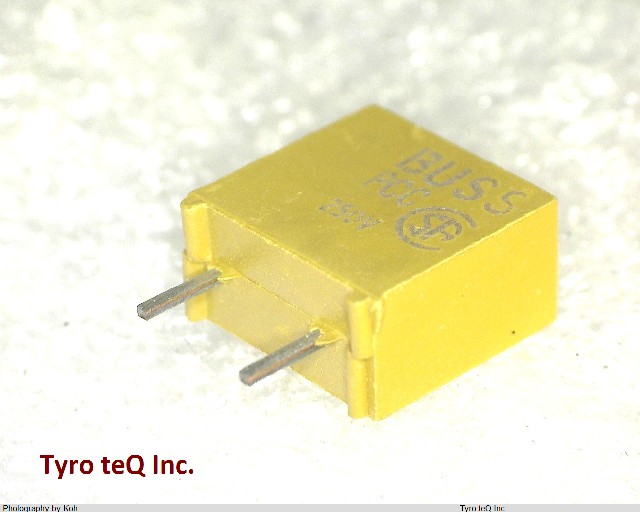

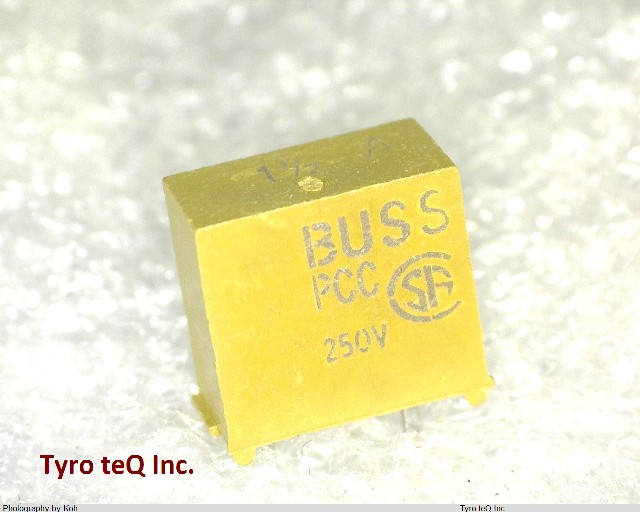

BK-PCC-1-1-2

Name: BK-PCC-1-1-2
Brand: BUSSMANN
SKU: 400028591-0000-0000-0000

BK-PCC-1-1-2 - BUSSMANN の商品詳細ページです。

２営業日以内に回答いたします

BK-PCC-1-1-2 の詳細情報

型番	BK-PCC-1-1-2
メーカー	BUSSMANN
Additional Feature	RATED BREAKING CAPACITY AT 450 VDC: 300 A
Blow Characteristic	FAST
Body Breadth	4.67 inch
Body Height	8.76 mm
Body Length or Diameter	8.89 mm
Circuit Protection Type	ELECTRIC FUSE
Fuse Class	Supplemental
JESD-609 Code	e0
Joule-integral-Nom	0.09 J
Manufacturer Series	PC
Mounting Feature	THROUGH HOLE
Packing Method	BOX
Physical Dimension	8.89mm x 4.67mm x 8.76mm
Rated Breaking Capacity	50 A
Rated Current	1.5 A
Rated Voltage	250 V
Rated Voltage(AC)	250 V
Rated Voltage(DC)	450 V
Reference Standard	CSA; UL
Terminal Finish	TIN LEAD
Terminal Shape	PIN WIRE
Trip Time or Delay	10 Seconds
