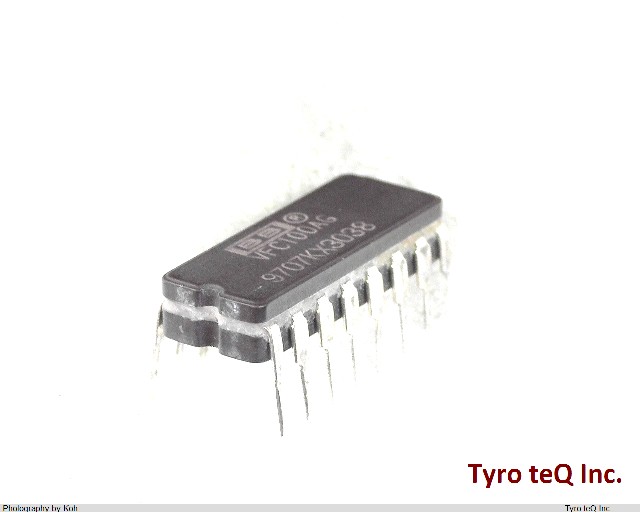

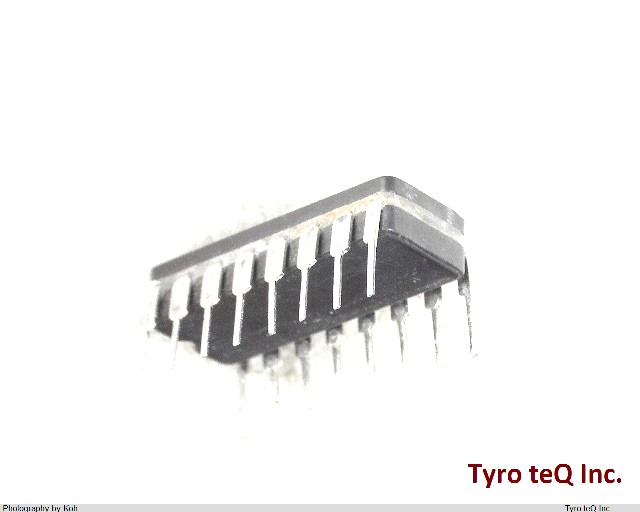

VFC100AG データシート

Name: VFC100AG
Brand: BURR-BROWN
SKU: 320023409-0000-0000-0000

VFC100AG - BURR-BROWN の商品詳細ページです。

２営業日以内に回答いたします

VFC100AG の詳細情報

型番	VFC100AG
メーカー	BURR-BROWN
データシート
Converter Type	VOLTAGE TO FREQUENCY CONVERTER
JESD-30 Code	R-CDIP-T16
JESD-609 Code	e0
Linearity Error-Max (EL)	0.025 %
Negative Supply Voltage-Max	-28.5 V
Negative Supply Voltage-Min	-7.5 V
Negative Supply Voltage-Nom	-15 V
Number of Functions	1
Number of Terminals	16
Operating Frequency-Max	14 MHz
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Positive Input Voltage-Max	10 V
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Analog Special Function Converters
Supply Current-Max	15 mA
Supply Voltage-Max	28.5 V
Supply Voltage-Min	7.5 V
Supply Voltage-Nom	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
