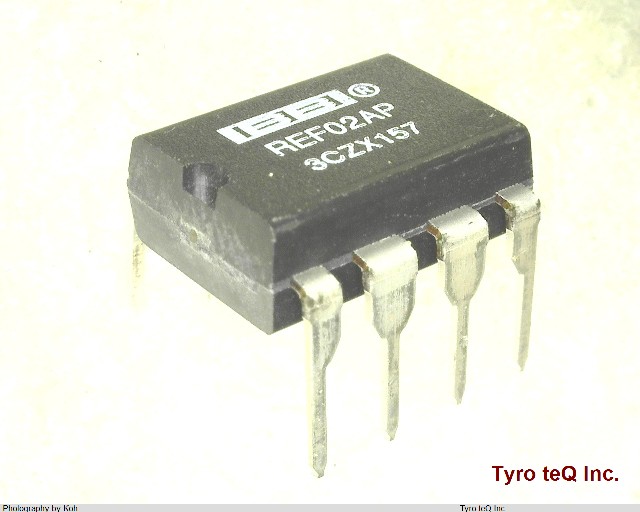

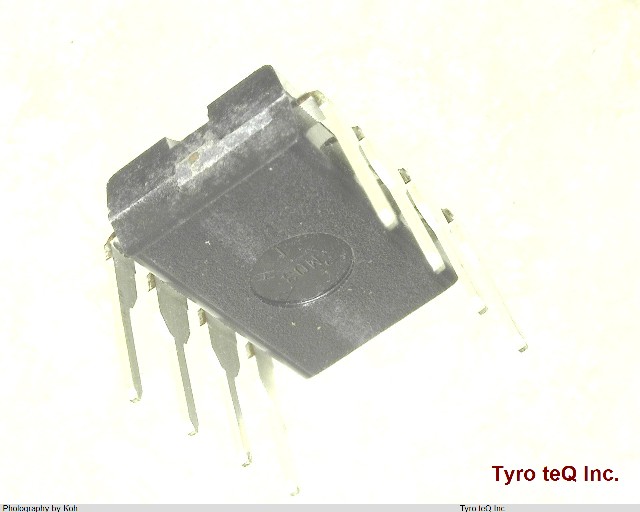

REF02AP
データシート
1
No Image
-
- 個
２営業日以内に回答いたします
REF02AP の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | REF02AP |
|---|---|
| メーカー | BURR-BROWN |
| データシート |  |
| Additional Feature | OUTPUT CAN BE EXTERNALLY ADJUSTED OVER A +/-6 PERCENT RANGE |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e0 |
| Length | 9.81 mm |
| Number of Functions | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Output Voltage-Max | 5.015 V |
| Output Voltage-Min | 4.985 V |
| Output Voltage-Nom | 5 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Sub Category | Voltage References |
| Supply Current-Max (Isup) | 1.4 mA |
| Supply Voltage-Max (Vsup) | 40 V |
| Supply Voltage-Min (Vsup) | 8 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temp Coef of Voltage-Max | 15 ppm/Cel |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | NICKEL PALLADIUM GOLD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Trim/Adjustable Output | YES V |
| Voltage Tolerance-Max | 0.19 % |
| Width | 7.62 mm |
| 会社名称 | Texas Instruments |
|---|---|
| 設立 | 1930 |
| 資本金 | USD 13.7 billion |
| 所在地 | 12500 TI Boulevard Dallas, Texas 75243 United States |
| URL | http://www.burr-brown.com/ |
