PGA205AP データシート Burrbrown

PGA205AP - BURR-BROWN の商品詳細ページです。

1

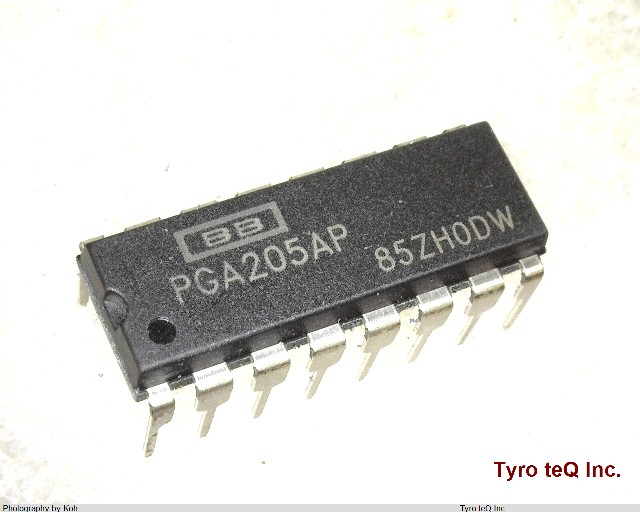

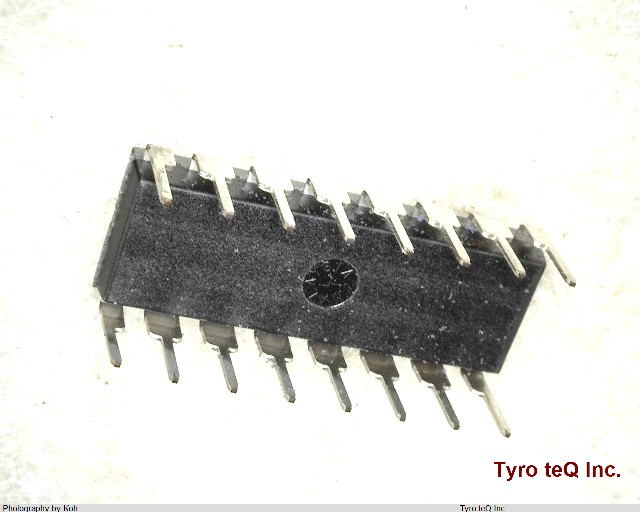

PGA205AP
  • PGA205AP
  • PGA205AP
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

PGA205AP の詳細情報

  • 仕様・詳細
  • メーカー情報
型番PGA205AP
メーカーBURR-BROWN
データシートProduct_list_pdf
Amplifier Type INSTRUMENTATION AMPLIFIER
Average Bias Current-Max (IIB) 0.005 uA
Bandwidth (3dB)-Nom 1 MHz
Common-mode Reject Ratio-Min 75 dB
Input Offset Current-Max (IIO) 0.002 uA
Input Offset Voltage-Max 175 uV
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Length 19.305 mm
Neg Supply Voltage Limit-Max -18 V
Neg Supply Voltage-Nom (Vsup) -15 V
Non-linearity-Max 0.004 %
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Packing Method TUBE
Power Supplies +-15 V
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Slew Rate-Nom 0.3 V/us
Sub Category Instrumentation Amplifier
Supply Current-Max 7.5 mA
Supply Voltage Limit-Max 18 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Unity Gain BW-Nom 1000 kHz
Voltage Gain-Max 7.9
Voltage Gain-Min 1
Voltage Gain-Nom 2
Width 7.62 mm
会社名称Texas Instruments
設立1930
資本金USD 13.7 billion
所在地12500 TI Boulevard Dallas, Texas 75243 United States
URLhttp://www.burr-brown.com/

PGA205APのレビュー

PGA205AP のご注文について
