OPA4131NJ データシート

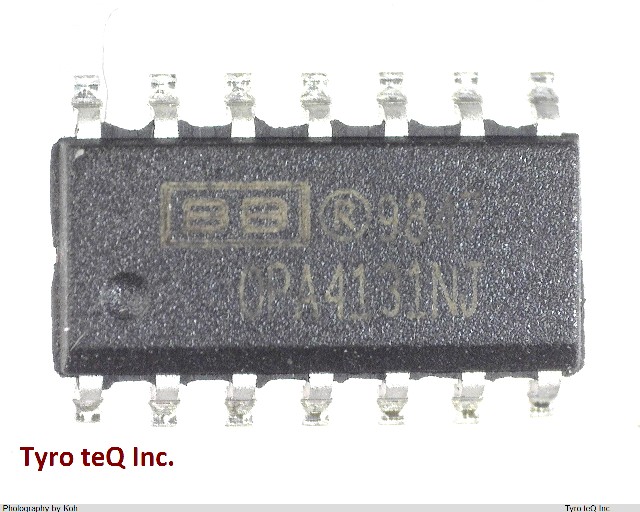

Name: OPA4131NJ
Brand: BURR-BROWN
SKU: 250001944-0000-0000-0000

OPA4131NJ - BURR-BROWN の商品詳細ページです。

２営業日以内に回答いたします

OPA4131NJ の詳細情報

型番	OPA4131NJ
メーカー	BURR-BROWN
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	5.0E-5 uA
Bias Current-Max (IIB) @25C	5.0E-5 uA
Common-mode Reject Ratio-Min	70 dB
Common-mode Reject Ratio-Nom	80 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	5.0E-5 uA
Input Offset Voltage-Max	1000 uV
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e0
Length	8.65 mm
Low-Bias	YES
Low-Offset	NO
Micropower	NO
Moisture Sensitivity Level	3
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	+-15 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Slew Rate-Nom	10 V/us
Sub Category	Operational Amplifier
Supply Current-Max	7 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Temperature Grade	COMMERCIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	4000 kHz
Voltage Gain-Min	50000
Wideband	NO
Width	3.9 mm
