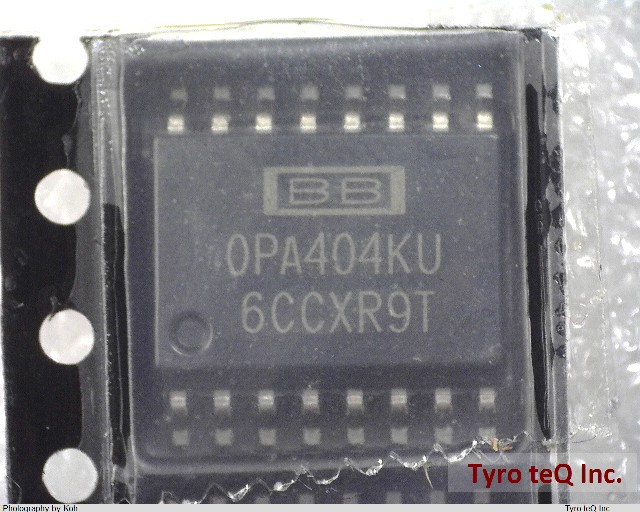

OPA404KU データシート

Name: OPA404KU
Brand: BURR-BROWN
SKU: 250001941-0000-0000-0000

OPA404KU - BURR-BROWN の商品詳細ページです。

２営業日以内に回答いたします

OPA404KU の詳細情報

型番	OPA404KU
メーカー	BURR-BROWN
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.0002 uA
Bias Current-Max (IIB) @25C	8.0E-6 uA
Common-mode Reject Ratio-Min	84 dB
Common-mode Reject Ratio-Nom	99 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	0.0001 uA
Input Offset Voltage-Max	1000 uV
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	10.3 mm
Low-Bias	YES
Low-Offset	NO
Micropower	NO
Moisture Sensitivity Level	3
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	4
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Slew Rate-Min	24 V/us
Slew Rate-Nom	35 V/us
Sub Category	Operational Amplifier
Supply Current-Max	10.5 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	6400 kHz
Voltage Gain-Min	13000
Width	7.5 mm
