OPA2604AP Burrbrown

OPA2604AP - BURR-BROWN の商品詳細ページです。

1

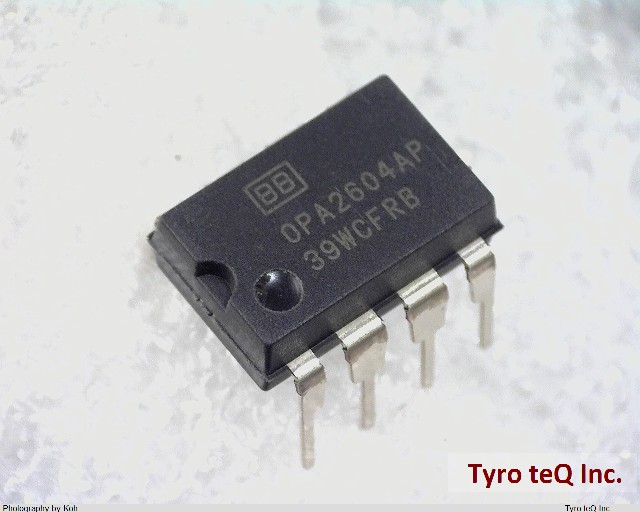

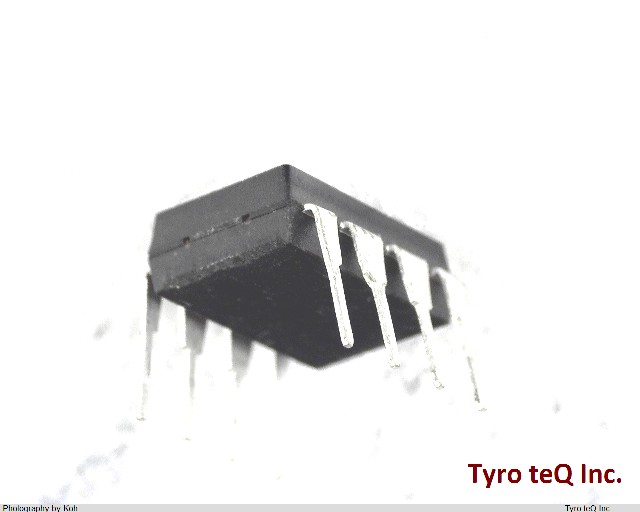

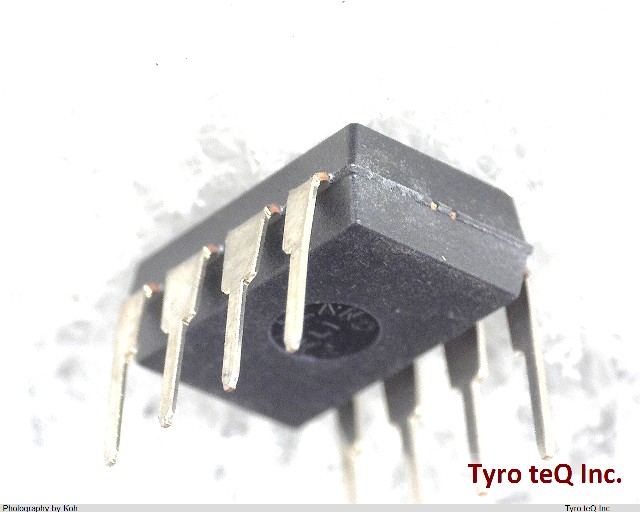

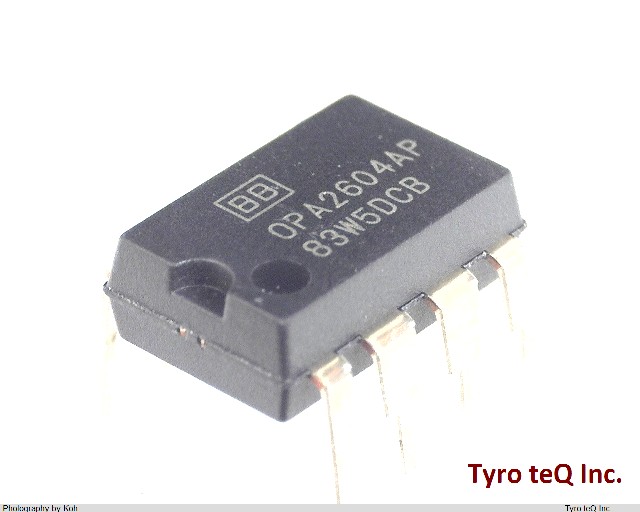

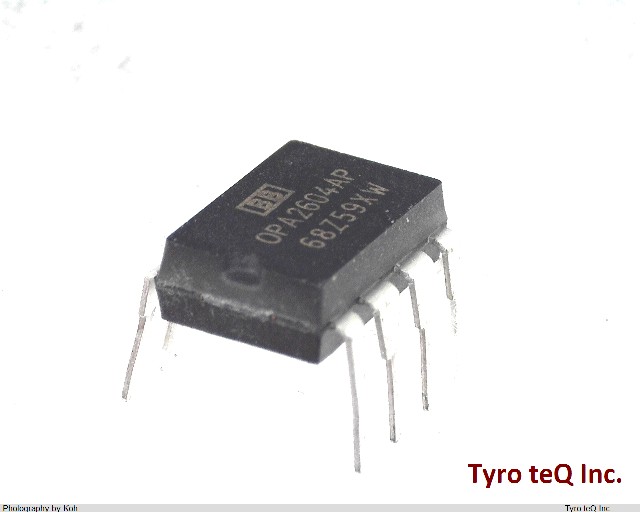

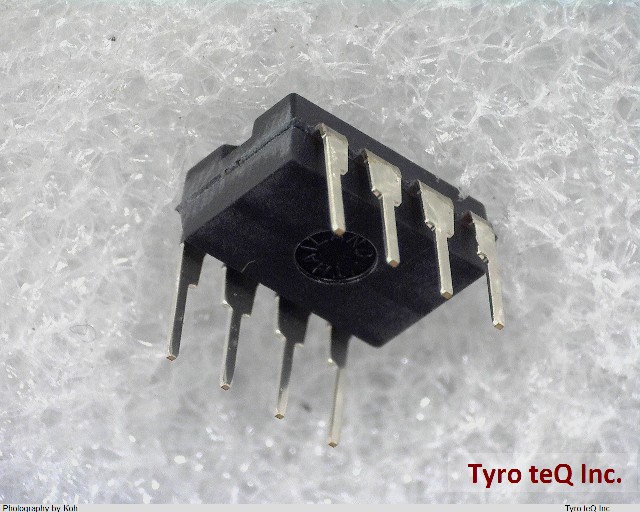

OPA2604AP
  • OPA2604AP
  • OPA2604AP
  • OPA2604AP
  • OPA2604AP
  • OPA2604AP
  • OPA2604AP
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

OPA2604AP の詳細情報

  • 仕様・詳細
  • メーカー情報
型番OPA2604AP
メーカーBURR-BROWN
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.0001 uA
Common-mode Reject Ratio-Min 80 dB
Common-mode Reject Ratio-Nom 100 dB
Frequency Compensation YES
Input Offset Voltage-Max 5000 uV
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Length 9.81 mm
Low-Bias YES
Low-Offset NO
Neg Supply Voltage Limit-Max -25 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 85 Cel
Operating Temperature-Min -25 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Packing Method TUBE
Power Supplies +-4.5/+-24 V
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Slew Rate-Min 15 V/us
Slew Rate-Nom 25 V/us
Sub Category Operational Amplifier
Supply Current-Max 12 mA
Supply Voltage Limit-Max 25 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade OTHER
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Unity Gain BW-Nom 20000 kHz
Voltage Gain-Min 10000
Width 7.62 mm
会社名称Texas Instruments
設立1930
資本金USD 13.7 billion
所在地12500 TI Boulevard Dallas, Texas 75243 United States
URLhttp://www.burr-brown.com/

OPA2604APのレビュー

OPA2604AP のご注文について
