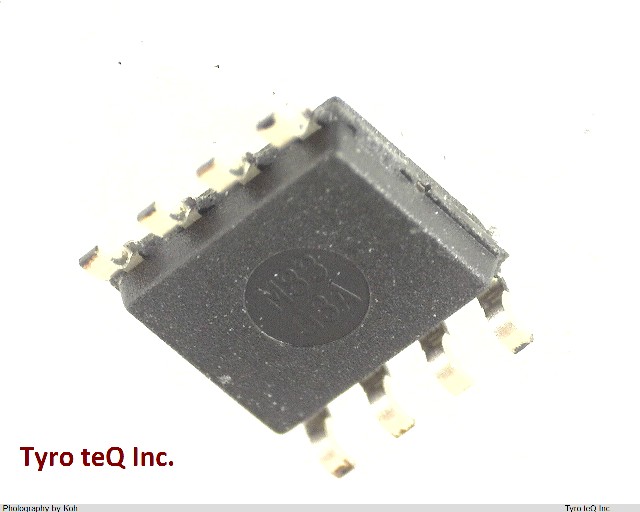

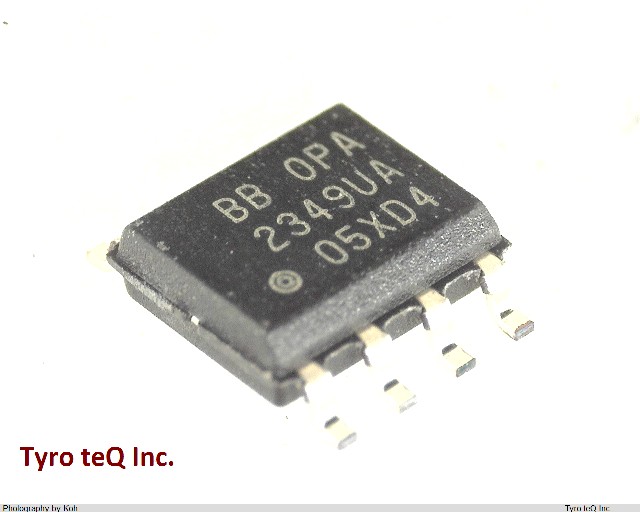

OPA2349UA データシート

Name: OPA2349UA
Brand: BURR-BROWN
SKU: 250001789-0000-0000-0000

OPA2349UA - BURR-BROWN の商品詳細ページです。

２営業日以内に回答いたします

OPA2349UA の詳細情報

型番	OPA2349UA
メーカー	BURR-BROWN
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	1.0E-5 uA
Bias Current-Max (IIB) @25C	1.0E-5 uA
Common-mode Reject Ratio-Min	48 dB
Common-mode Reject Ratio-Nom	60 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	1.0E-5 uA
Input Offset Voltage-Max	10000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Low-Bias	YES
Low-Offset	NO
Micropower	YES
Moisture Sensitivity Level	2
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	RAIL
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	2/5 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Slew Rate-Nom	0.02 V/us
Sub Category	Operational Amplifier
Supply Current-Max	0.004 mA
Supply Voltage Limit-Max	5.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	70 kHz
Voltage Gain-Min	1000
Wideband	NO
Width	3.9 mm
