OPA177GP データシート Burrbrown

OPA177GP - BURR-BROWN の商品詳細ページです。

1

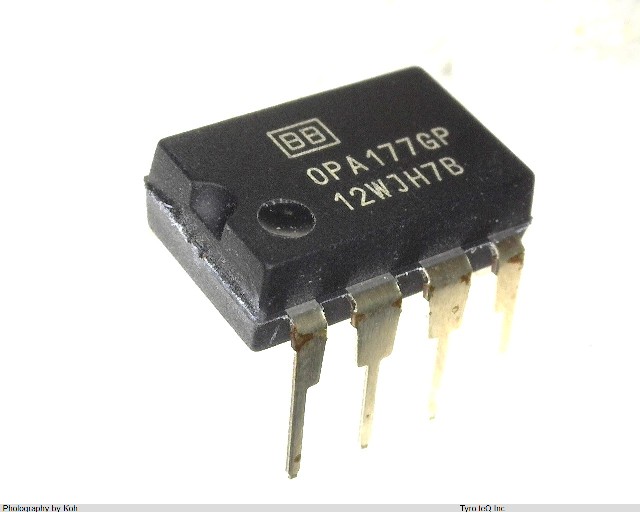

OPA177GP
  • OPA177GP
  • OPA177GP
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

OPA177GP の詳細情報

  • 仕様・詳細
  • メーカー情報
型番OPA177GP
メーカーBURR-BROWN
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.006 uA
Bias Current-Max (IIB) @25C 0.002 uA
Common-mode Reject Ratio-Min 115 dB
Common-mode Reject Ratio-Nom 140 dB
Frequency Compensation YES
Input Offset Current-Max (IIO) 0.0028 uA
Input Offset Voltage-Max 25 uV
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Length 9.81 mm
Low-Bias NO
Low-Offset YES
Micropower NO
Neg Supply Voltage Limit-Max -22 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Packing Method TUBE
Power NO
Power Supplies +-15 V
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Slew Rate-Min 0.1 V/us
Slew Rate-Nom 0.3 V/us
Sub Category Operational Amplifier
Supply Current-Max 2 mA
Supply Voltage Limit-Max 22 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Unity Gain BW-Nom 600 kHz
Voltage Gain-Min 2000
Wideband NO
Width 7.62 mm
会社名称Texas Instruments
設立1930
資本金USD 13.7 billion
所在地12500 TI Boulevard Dallas, Texas 75243 United States
URLhttp://www.burr-brown.com/

OPA177GPのレビュー

OPA177GP のご注文について
