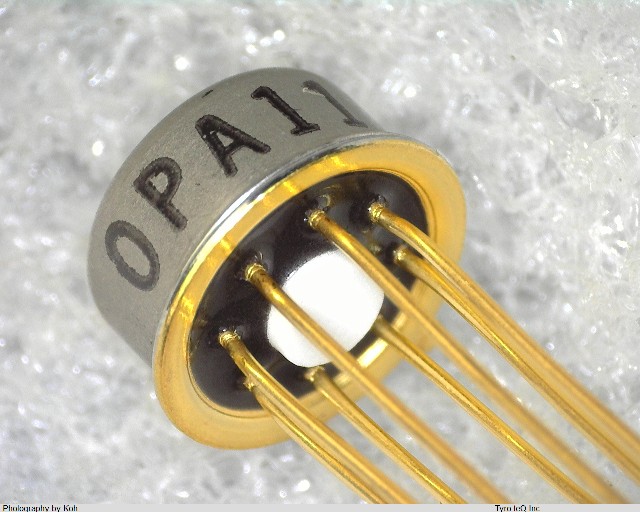

OPA111AM データシート

Name: OPA111AM
Brand: BURR-BROWN
SKU: 250001716-0000-0000-0000

OPA111AM - BURR-BROWN の商品詳細ページです。

２営業日以内に回答いたします

OPA111AM の詳細情報

型番	OPA111AM
メーカー	BURR-BROWN
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.00025 uA
Bias Current-Max (IIB) @25C	2.0E-6 uA
Common-mode Reject Ratio-Min	90 dB
Common-mode Reject Ratio-Nom	100 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	1.5E-6 uA
Input Offset Voltage-Max	1000 uV
JESD-30 Code	O-MBCY-W8
JESD-609 Code	e0
Low-Bias	YES
Low-Offset	NO
Micropower	NO
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	METAL
Package Code	TO-99
Package Equivalence Code	CAN8,.2
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power	NO
Power Supplies	+-15 V
Programmable Power	NO
Qualification Status	Not Qualified
Screening Level	38535Q/M;38534H;883B
Slew Rate-Min	1 V/us
Slew Rate-Nom	2 V/us
Sub Category	Operational Amplifier
Supply Current-Max	3.5 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	MILITARY
Terminal Finish	TIN LEAD
Terminal Form	WIRE
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	2000 kHz
Voltage Gain-Min	320000
Wideband	NO
