MPC508AP Burrbrown

MPC508AP - BURR-BROWN の商品詳細ページです。

1

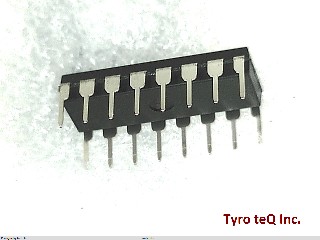

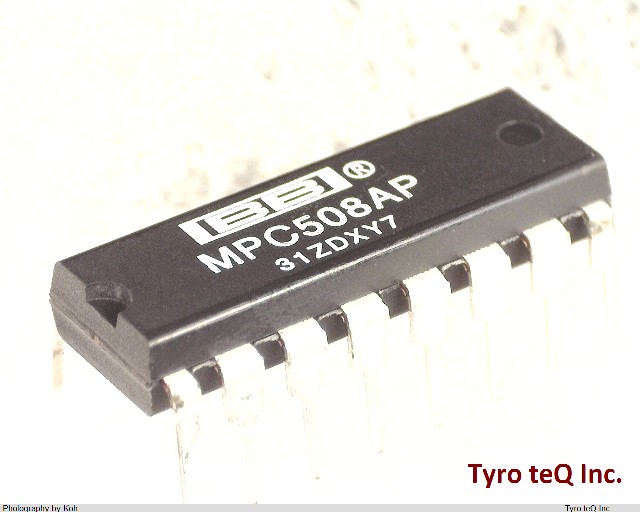

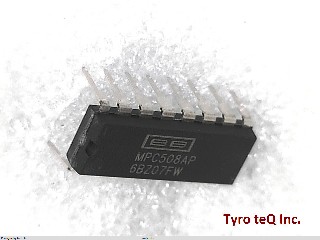

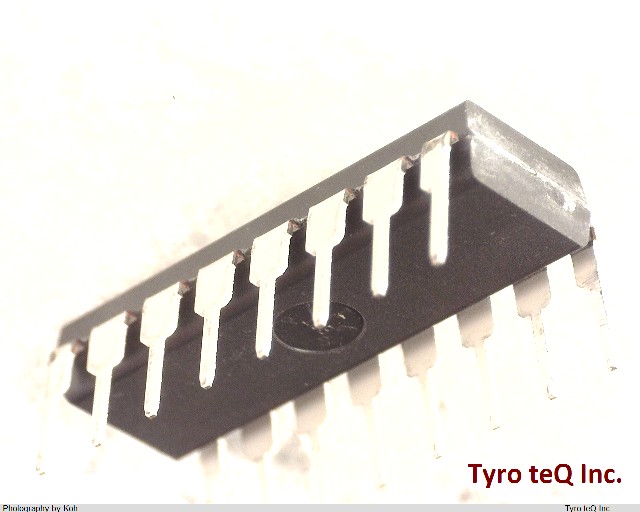

MPC508AP
  • MPC508AP
  • MPC508AP
  • MPC508AP
  • MPC508AP
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

MPC508AP の詳細情報

  • 仕様・詳細
  • メーカー情報
型番MPC508AP
メーカーBURR-BROWN
Analog IC - Other Type SINGLE-ENDED MULTIPLEXER
Input Voltage-Max 15 V
Input Voltage-Min -15 V
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Length 19.305 mm
Neg Supply Voltage-Nom (Vsup) -15 V
Normal Position NO V
Number of Channels 1
Number of Functions 1
Number of Terminals 16
Off-state Isolation-Nom 68 dB
On-state Resistance-Max (Ron) 1500 ohm
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Output COMMON OUTPUT V
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Power Supplies +-15 V
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Signal Current-Max 0.02 A
Sub Category Multiplexer or Switches
Supply Current-Max (Isup) 1.5 mA
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Switch-off Time-Max 500 ns
Switch-on Time-Max 500 ns
Switching BREAK-BEFORE-MAKE V
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
会社名称Texas Instruments
設立1930
資本金USD 13.7 billion
所在地12500 TI Boulevard Dallas, Texas 75243 United States
URLhttp://www.burr-brown.com/
