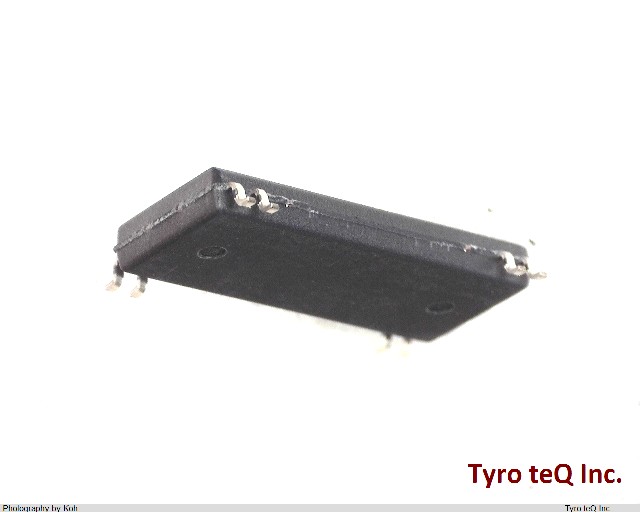

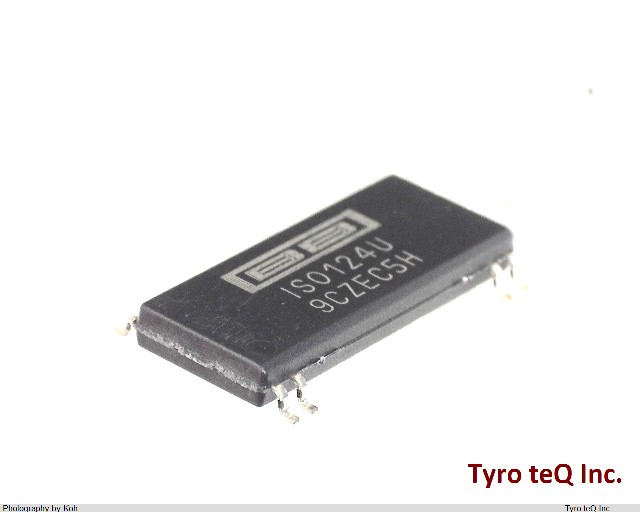

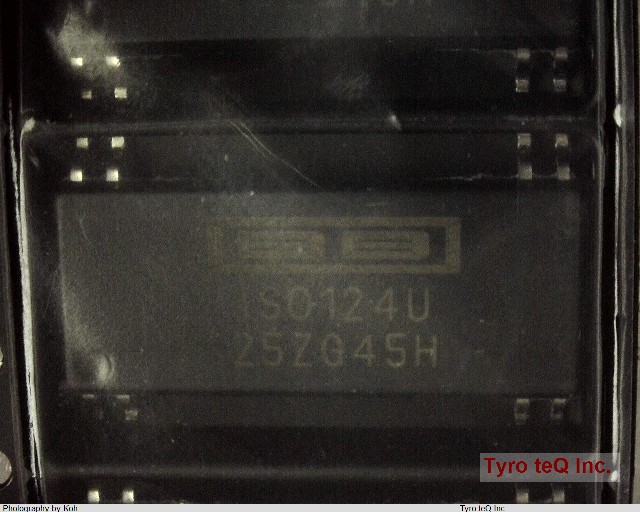

ISO124U

Name: ISO124U
Brand: BURR-BROWN
SKU: 190106866-0000-0000-0000

ISO124U - BURR-BROWN の商品詳細ページです。

２営業日以内に回答いたします

ISO124U の詳細情報

型番	ISO124U
メーカー	BURR-BROWN
Amplifier Type	ISOLATION AMPLIFIER
Analog Input Voltage-Max	10 V
Analog Input Voltage-Min	-10 V
Bandwidth (3dB)-Nom	50 MHz
Common Mode Voltage-Max	1500 V
Input Offset Voltage-Max	50000 uV
Isolation Voltage-Min	1500 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	17.9 mm
Moisture Sensitivity Level	3
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Non-linearity-Max	0.01 %
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8/28,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Sub Category	Isolation Amplifier
Supply Current-Max	7 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	0.05 kHz
Width	7.5 mm
