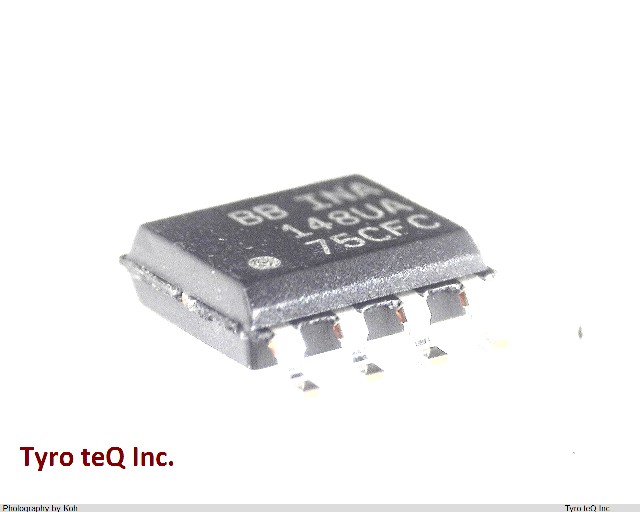

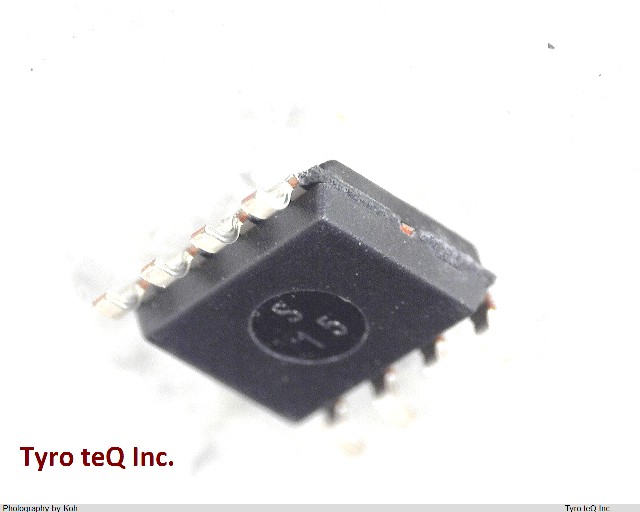

INA148UA

Name: INA148UA
Brand: BURR-BROWN
SKU: 190110395-0000-0000-0000

INA148UA - BURR-BROWN の商品詳細ページです。

２営業日以内に回答いたします

INA148UA の詳細情報

型番	INA148UA
メーカー	BURR-BROWN
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Common-mode Reject Ratio-Min	70 dB
Common-mode Reject Ratio-Nom	86 dB
Frequency Compensation	YES
Input Offset Voltage-Max	5000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Low-Offset	NO
Micropower	YES
Moisture Sensitivity Level	3
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	+-1.25/+-18,3/36 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Slew Rate-Nom	1 V/us
Sub Category	Operational Amplifier
Supply Current-Max	0.3 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	100 kHz
Voltage Gain-Max	1
Voltage Gain-Min	1
Voltage Gain-Nom	1
Wideband	NO
Width	3.9 mm
