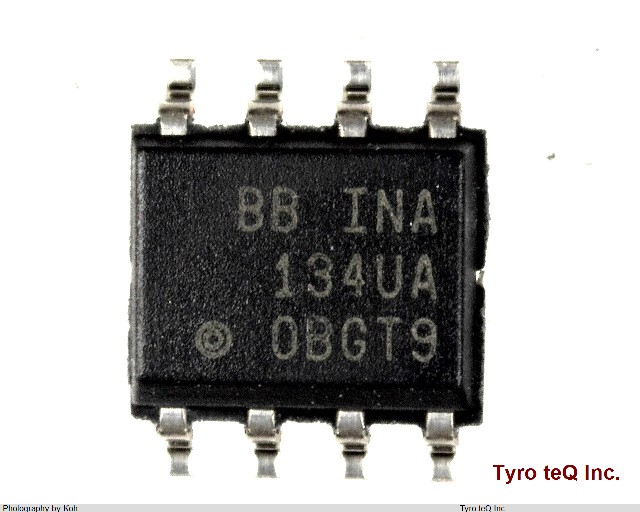

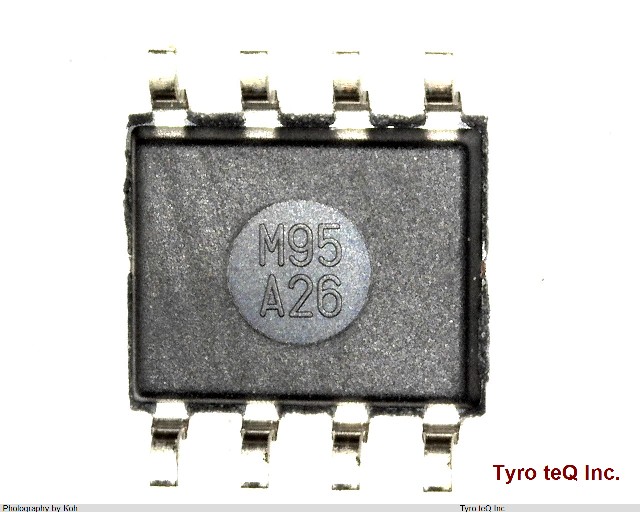

INA134UA
データシート
1
-
- 個
２営業日以内に回答いたします
INA134UA の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | INA134UA |
|---|---|
| メーカー | BURR-BROWN |
| データシート |  |
| Additional Feature | ALSO OPERATES WITH 8V TO 36V SINGLE SUPPLY |
| Analog IC - Other Type | ANALOG CIRCUIT |
| Input Voltage-Min | 8 V |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e0 |
| Length | 4.9 mm |
| Moisture Sensitivity Level | 3 |
| Neg Supply Voltage-Max (Vsup) | -18 V |
| Neg Supply Voltage-Min (Vsup) | -4 V |
| Neg Supply Voltage-Nom (Vsup) | -18 V |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Supply Voltage-Max (Vsup) | 18 V |
| Supply Voltage-Min (Vsup) | 4 V |
| Supply Voltage-Nom (Vsup) | 18 V |
| Surface Mount | YES |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | NICKEL PALLADIUM GOLD |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 3.9 mm |
| 会社名称 | Texas Instruments |
|---|---|
| 設立 | 1930 |
| 資本金 | USD 13.7 billion |
| 所在地 | 12500 TI Boulevard Dallas, Texas 75243 United States |
| URL | http://www.burr-brown.com/ |
