INA131BP Burrbrown

INA131BP - BURR-BROWN の商品詳細ページです。

1

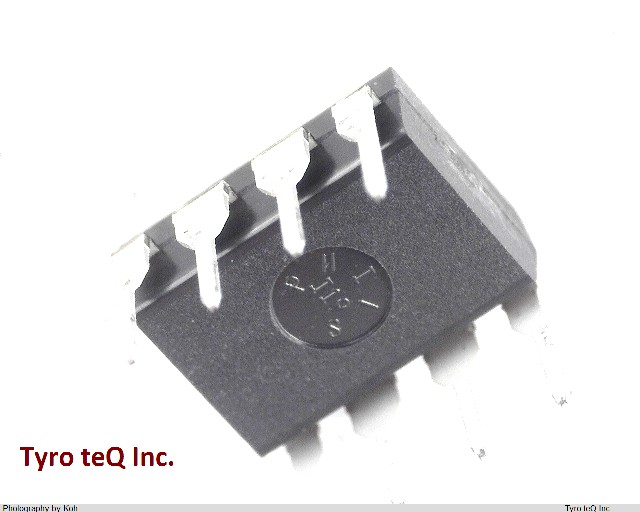

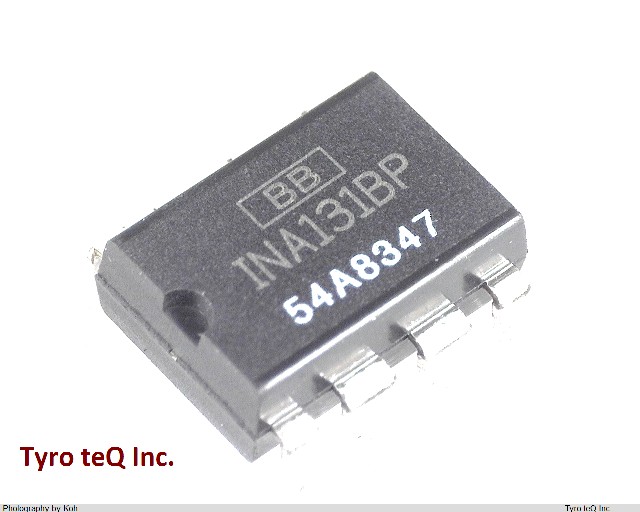

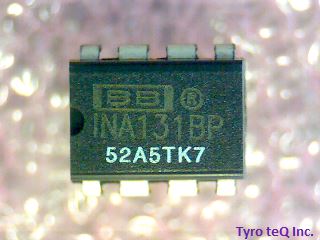

INA131BP
  • INA131BP
  • INA131BP
  • INA131BP
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

INA131BP の詳細情報

  • 仕様・詳細
  • メーカー情報
型番INA131BP
メーカーBURR-BROWN
Amplifier Type INSTRUMENTATION AMPLIFIER
Average Bias Current-Max (IIB) 0.002 uA
Bandwidth (3dB)-Nom 0.07 MHz
Common-mode Reject Ratio-Min 110 dB
Input Offset Current-Max (IIO) 0.002 uA
Input Offset Voltage-Max 50 uV
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Length 9.81 mm
Neg Supply Voltage Limit-Max -18 V
Neg Supply Voltage-Nom (Vsup) -15 V
Non-linearity-Max 0.002 %
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Packing Method TUBE
Power Supplies +-15 V
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Slew Rate-Nom 0.7 V/us
Sub Category Instrumentation Amplifier
Supply Current-Max 3 mA
Supply Voltage Limit-Max 18 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Voltage Gain-Max 100
Voltage Gain-Min 100
Voltage Gain-Nom 100
Width 7.62 mm
会社名称Texas Instruments
設立1930
資本金USD 13.7 billion
所在地12500 TI Boulevard Dallas, Texas 75243 United States
URLhttp://www.burr-brown.com/
