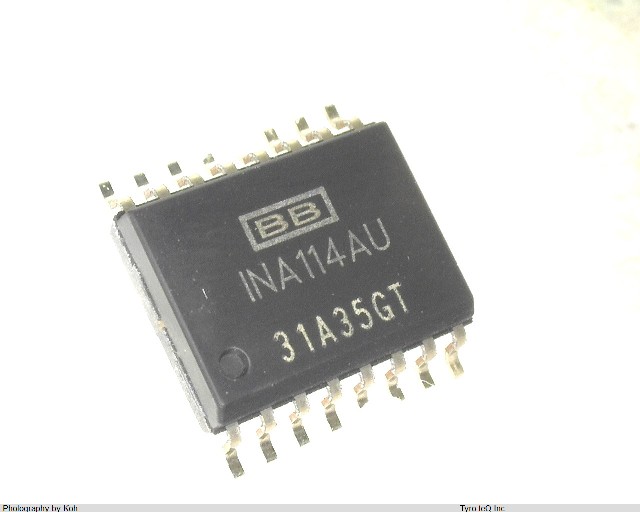

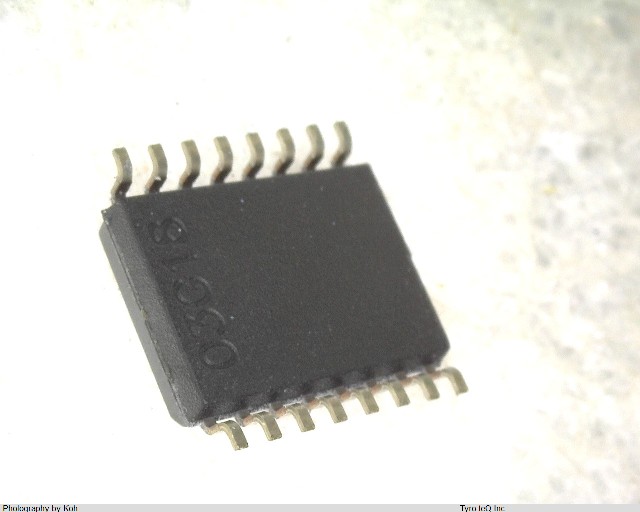

INA114AU

Name: INA114AU
Brand: BURR-BROWN
SKU: 190106604-0000-0000-0000

INA114AU - BURR-BROWN の商品詳細ページです。

２営業日以内に回答いたします

INA114AU の詳細情報

型番	INA114AU
メーカー	BURR-BROWN
Amplifier Type	INSTRUMENTATION AMPLIFIER
Average Bias Current-Max (IIB)	0.005 uA
Bandwidth (3dB)-Nom	1 MHz
Bias Current-Max (IIB) @25C	0.002 uA
Common-mode Reject Ratio-Min	75 dB
Input Offset Current-Max (IIO)	0.005 uA
Input Offset Voltage-Max	50 uV
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	10.3 mm
Moisture Sensitivity Level	3
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Non-linearity-Max	0.002 %
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Slew Rate-Nom	0.6 V/us
Sub Category	Instrumentation Amplifier
Supply Current-Max	3 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Voltage Gain-Max	10000
Voltage Gain-Min	1
Voltage Gain-Nom	10
Width	7.5 mm
