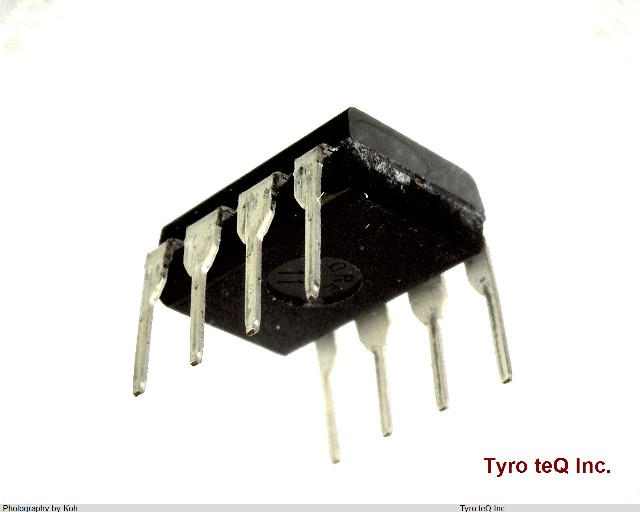

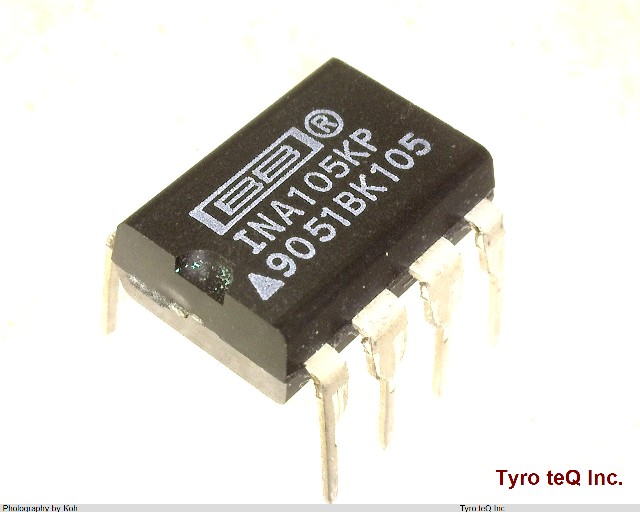

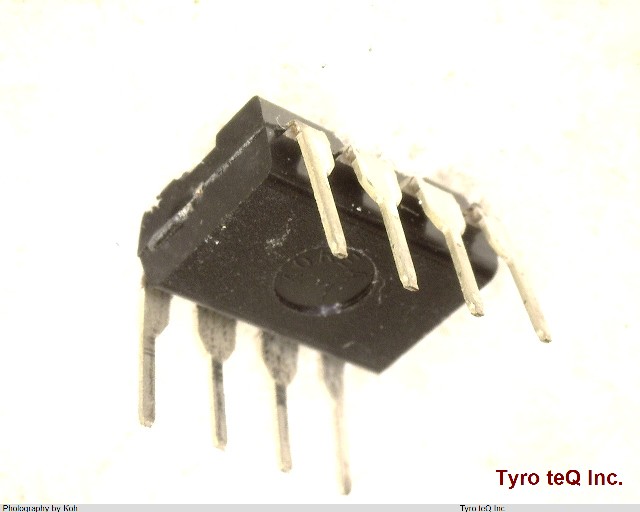

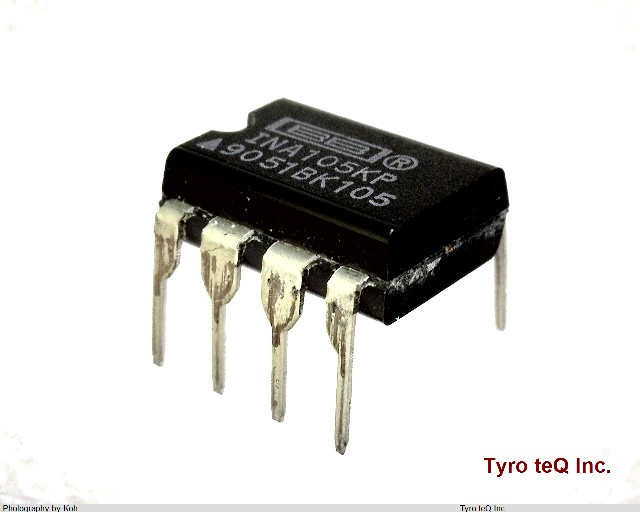

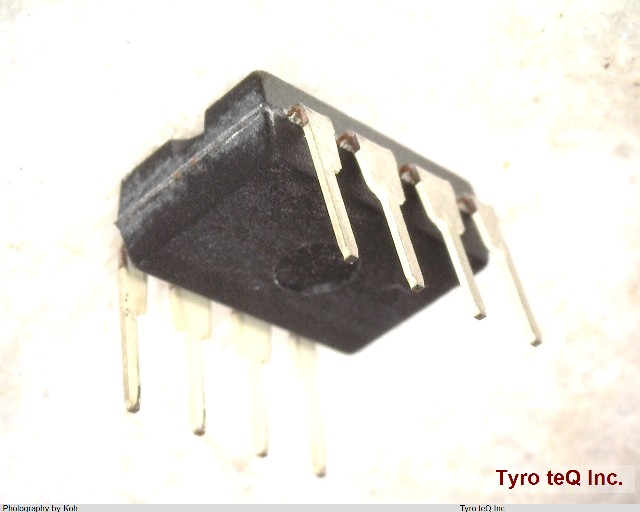

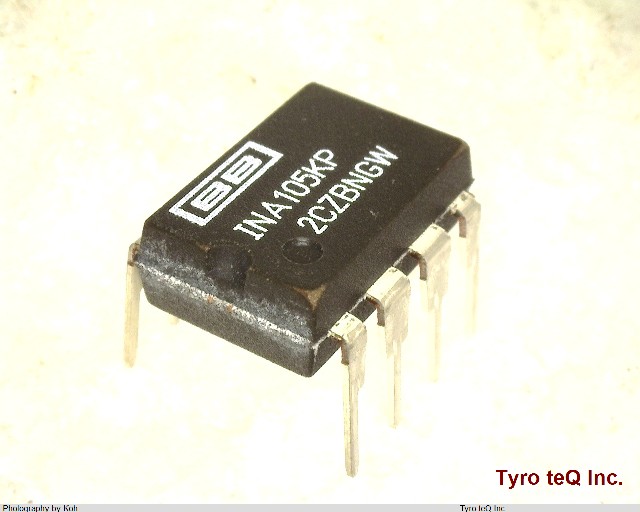

INA105KP データシート

Name: INA105KP
Brand: BURR-BROWN
SKU: 190000244-0000-0000-0000

INA105KP - BURR-BROWN の商品詳細ページです。

２営業日以内に回答いたします

INA105KP の詳細情報

型番	INA105KP
メーカー	BURR-BROWN
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Bandwidth (3dB)-Nom	1 MHz
Common-mode Reject Ratio-Min	86 dB
Common-mode Reject Ratio-Nom	90 dB
Frequency Compensation	YES
Input Offset Voltage-Max	250 uV
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.81 mm
Low-Offset	YES
Micropower	NO
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power	NO
Power Supplies	+-15 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Slew Rate-Min	2 V/us
Slew Rate-Nom	3 V/us
Sub Category	Operational Amplifier
Supply Current-Max	2 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Gain-Max	1
Voltage Gain-Min	1
Voltage Gain-Nom	1
Wideband	NO
Width	7.62 mm
