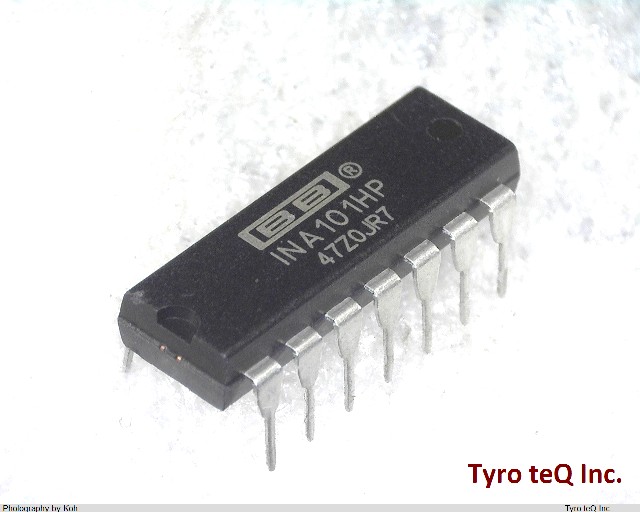

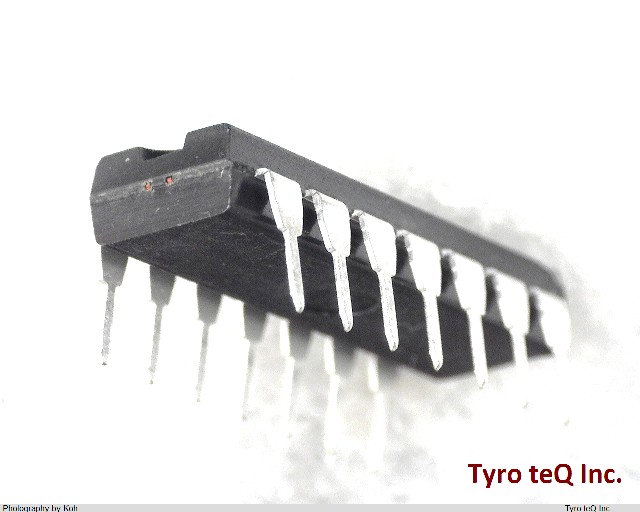

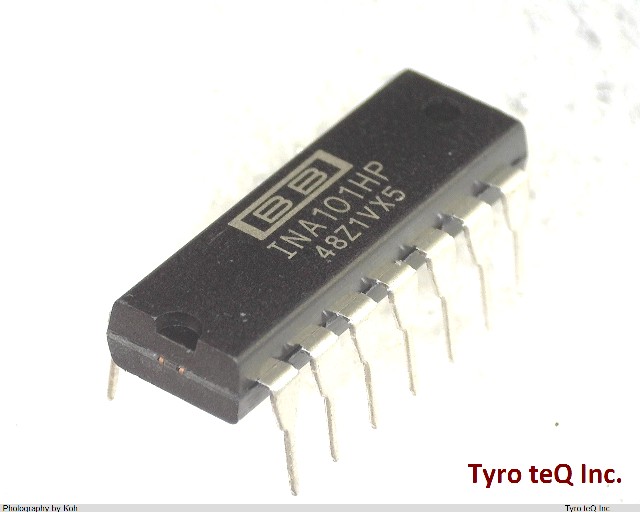

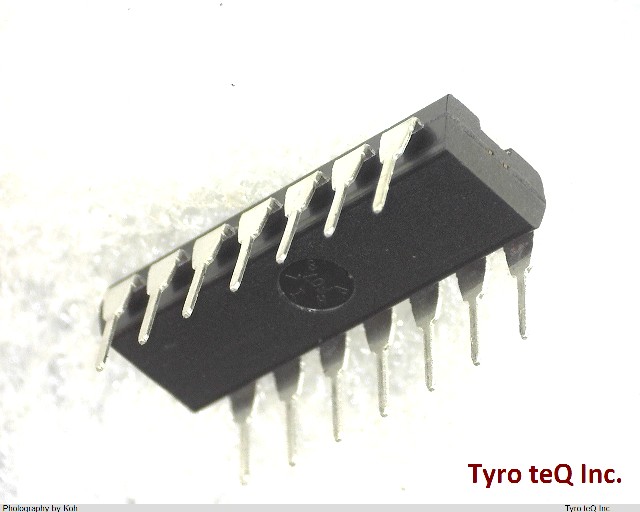

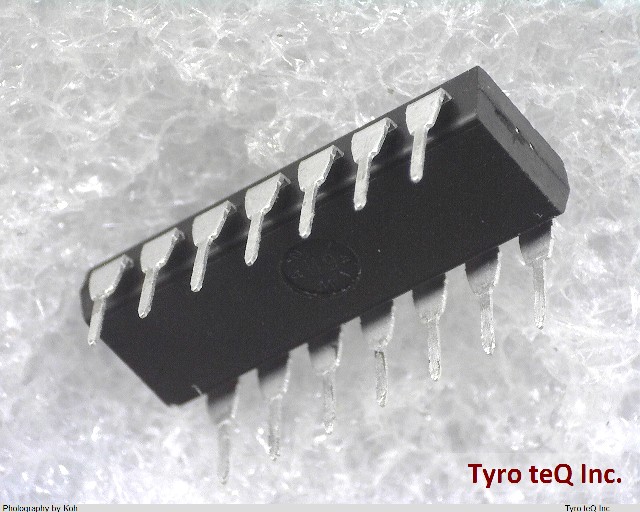

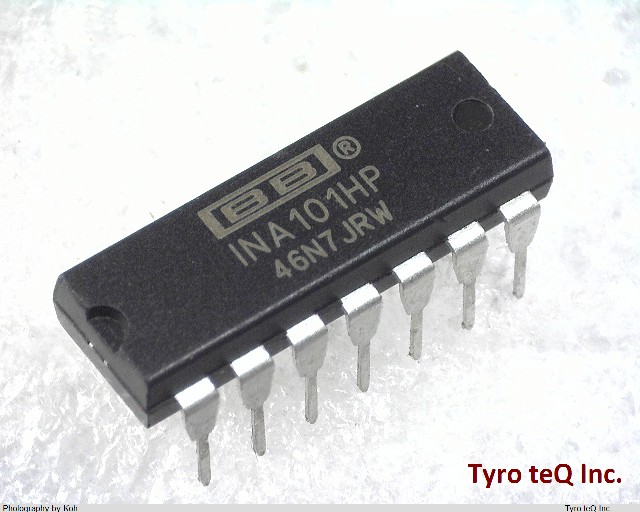

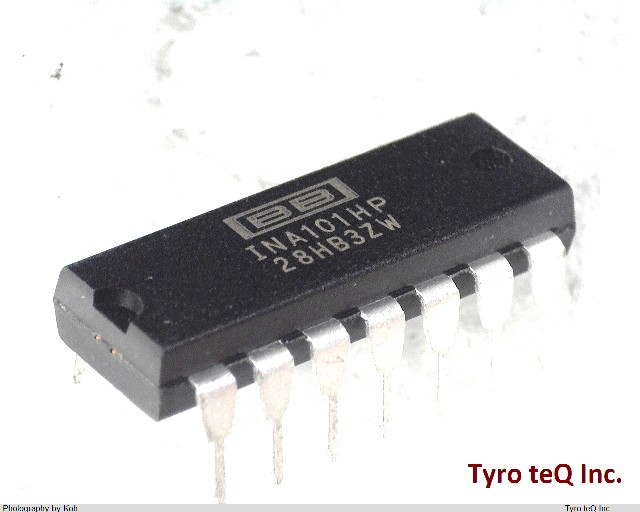

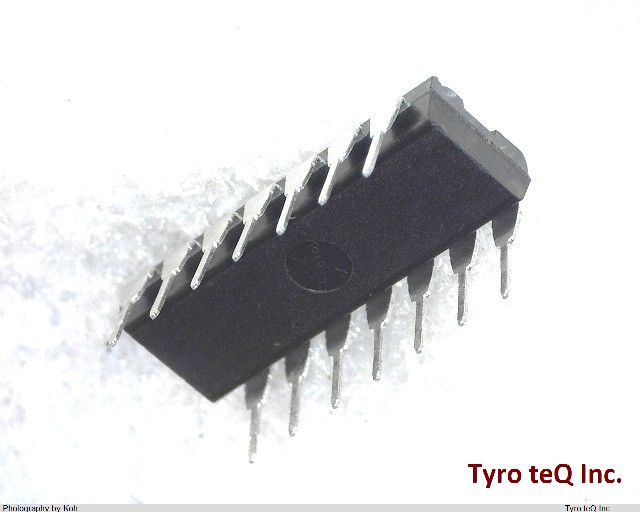

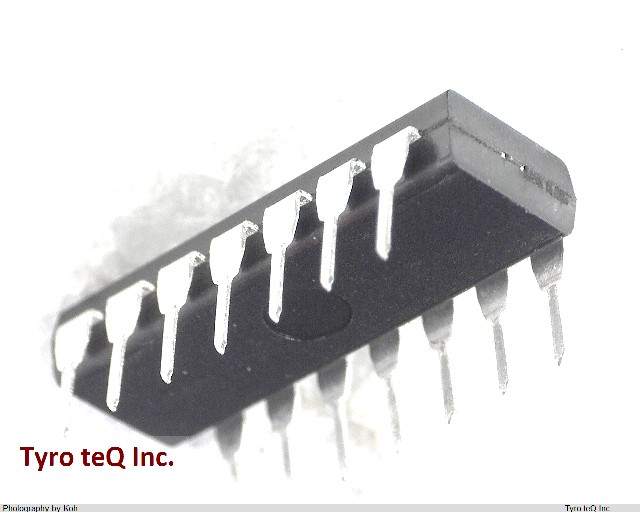

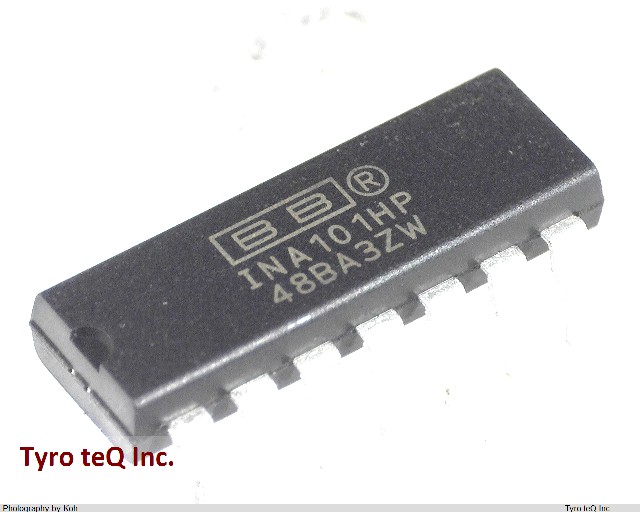

INA101HP
  • INA101HP
  • INA101HP
  • INA101HP
  • INA101HP
  • INA101HP
  • INA101HP
  • INA101HP
  • INA101HP
  • INA101HP
  • INA101HP
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

INA101HP の詳細情報

  • 仕様・詳細
  • メーカー情報
型番INA101HP
メーカーBURR-BROWN
データシートProduct_list_pdf
Amplifier Type INSTRUMENTATION AMPLIFIER
Average Bias Current-Max (IIB) 0.03 uA
Bandwidth (3dB)-Nom 0.3 MHz
Bias Current-Max (IIB) @25C 0.02 uA
Common-mode Reject Ratio-Min 65 dB
Input Offset Current-Max (IIO) 0.03 uA
Input Offset Voltage-Max 25 uV
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Length 19.305 mm
Neg Supply Voltage Limit-Max -20 V
Neg Supply Voltage-Nom (Vsup) -15 V
Non-linearity-Max 0.002 %
Number of Functions 1
Number of Terminals 14
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Packing Method TUBE
Power Supplies +-15 V
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Slew Rate-Nom 0.4 V/us
Sub Category Instrumentation Amplifier
Supply Current-Max 8.5 mA
Supply Voltage Limit-Max 20 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Voltage Gain-Max 1000
Voltage Gain-Min 1
Voltage Gain-Nom 10
Width 7.62 mm
