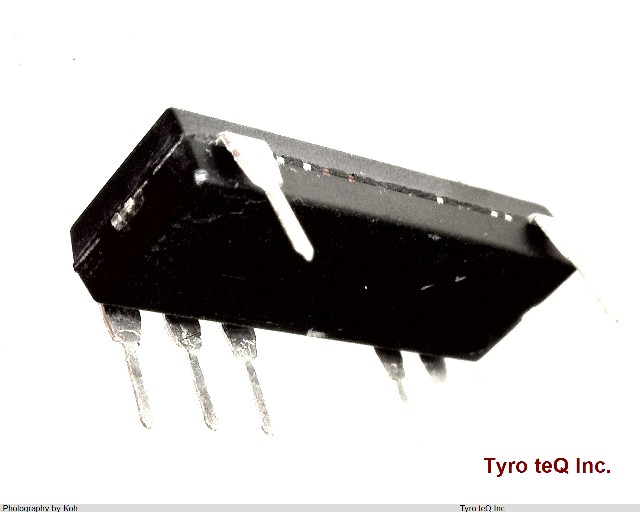

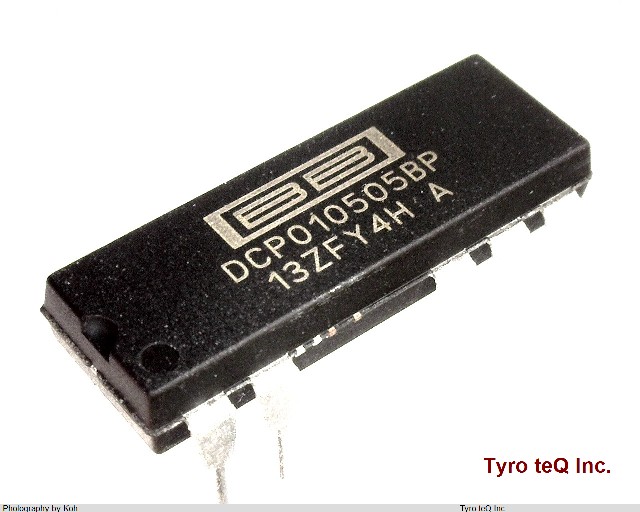

DCP010505BP データシート

Name: DCP010505BP
Brand: BURR-BROWN
SKU: 140001405-0000-0000-0000

DCP010505BP - BURR-BROWN の商品詳細ページです。

２営業日以内に回答いたします

DCP010505BP の詳細情報

型番	DCP010505BP
メーカー	BURR-BROWN
データシート
Analog IC - Other Type	DC-DC UNREGULATED POWER SUPPLY MODULE
Control Mode	VOLTAGE-MODE
Efficiency (Main Output)	80 %
Input Voltage-Max	5.5 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	5 V
JESD-30 Code	R-PDIP-T7
JESD-609 Code	e4
Length	19.18 mm
Line Regulation-Max	15 %
Load Regulation-Max	31 %
Moisture Sensitivity Level	3
Number of Functions	1
Number of Outputs	1
Number of Terminals	7
Operating Temperature-Max	100 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	0.2 A
Output Voltage-Max	5.25 V
Output Voltage-Min	4.75 V
Output Voltage-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP7/14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Ripple Voltage (Main Out)	0.007 Vrms
Seated Height-Max	5.33 mm
Sub Category	Other Analog ICs
Surface Mount	NO
Switcher Configuration	PUSH-PULL
Technology	BCDMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Total Power Output-Max	1 W
Trim/Adjustable Output	NO V
Width	6.605 mm
