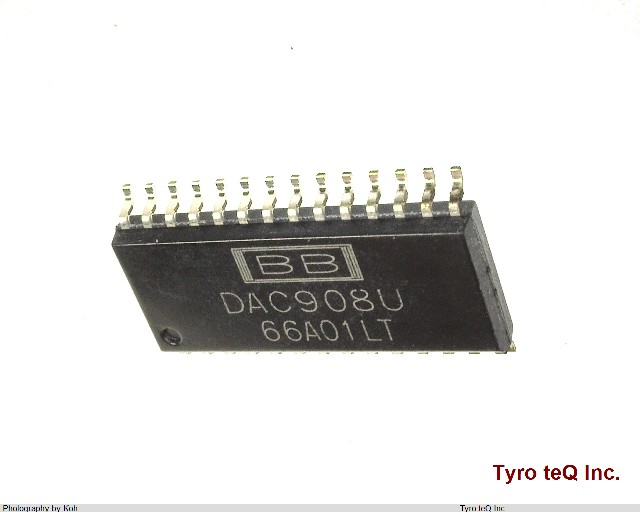

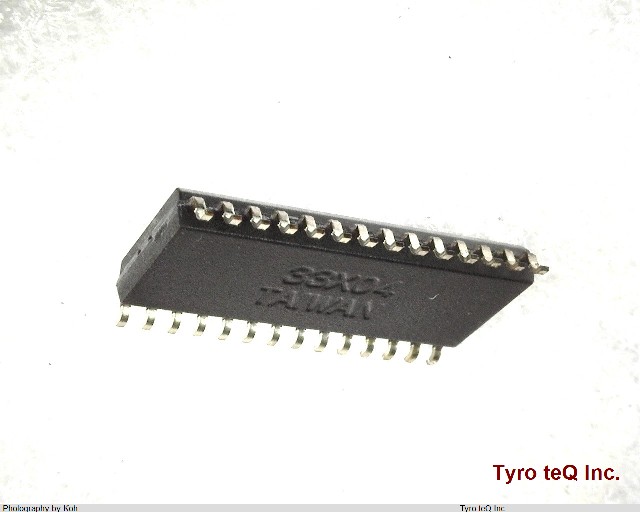

DAC908U
データシート
1
No Image
-
- 個
２営業日以内に回答いたします
DAC908U の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | DAC908U |
|---|---|
| メーカー | BURR-BROWN |
| データシート |  |
| Analog Output Voltage-Max | 1.25 V |
| Analog Output Voltage-Min | -1 V |
| Converter Type | D/A CONVERTER |
| Input Bit Code | BINARY |
| Input Format | PARALLEL, 8 BITS |
| JESD-30 Code | R-PDSO-G28 |
| JESD-609 Code | e4 |
| Length | 17.9 mm |
| Linearity Error-Max (EL) | 0.1953 % |
| Moisture Sensitivity Level | 2 |
| Number of Bits | 8 |
| Number of Functions | 1 |
| Number of Terminals | 28 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP28,.4 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies | 3/5 V |
| Qualification Status | Not Qualified |
| Sample Rate | 200 MHz |
| Seated Height-Max | 2.65 mm |
| Settling Time-Nom (tstl) | 0.03 us |
| Sub Category | Other Converters |
| Supply Current-Max | 30 mA |
| Supply Voltage-Nom | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | NICKEL PALLADIUM GOLD |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 7.5 mm |
| 会社名称 | Texas Instruments |
|---|---|
| 設立 | 1930 |
| 資本金 | USD 13.7 billion |
| 所在地 | 12500 TI Boulevard Dallas, Texas 75243 United States |
| URL | http://www.burr-brown.com/ |
DAC908Uのレビュー
