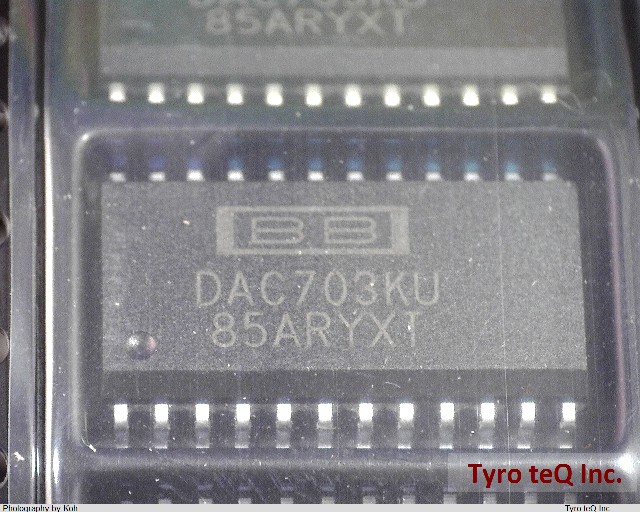

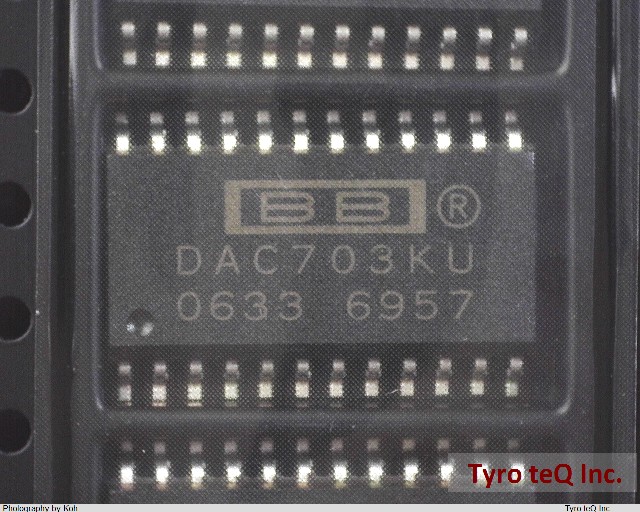

DAC703KU

Name: DAC703KU
Brand: BURR-BROWN
SKU: 140007908-0000-0000-0000

DAC703KU - BURR-BROWN の商品詳細ページです。

２営業日以内に回答いたします

DAC703KU の詳細情報

型番	DAC703KU
メーカー	BURR-BROWN
Analog Output Voltage-Max	10 V
Analog Output Voltage-Min	-10 V
Converter Type	D/A CONVERTER
Input Bit Code	COMPLEMENTARY 2'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY
Input Format	PARALLEL, WORD
JESD-30 Code	R-PDSO-G24
JESD-609 Code	e0
Length	15.8 mm
Linearity Error-Max (EL)	0.003 %
Negative Supply Voltage-Nom	-15 V
Number of Bits	16
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP24,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5,+-15 V
Qualification Status	Not Qualified
Seated Height-Max	2.5 mm
Settling Time-Max	8 us
Settling Time-Nom (tstl)	4 us
Sub Category	Other Converters
Supply Current-Max	30 mA
Supply Voltage-Nom	15 V
Surface Mount	YES
Technology	HYBRID
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	9 mm
