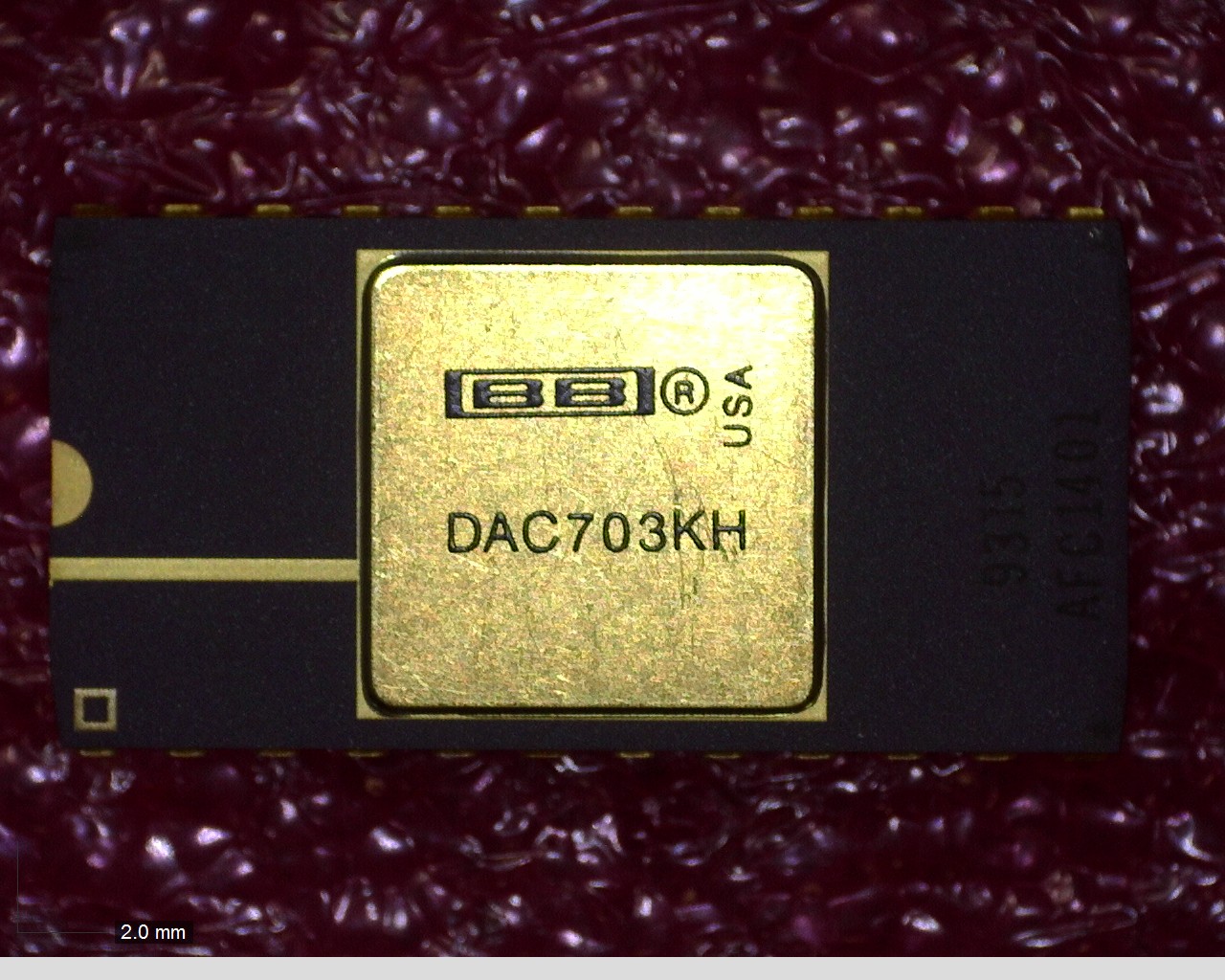

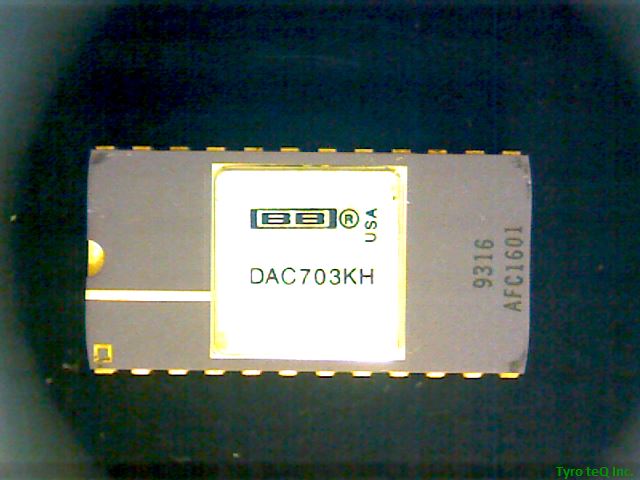

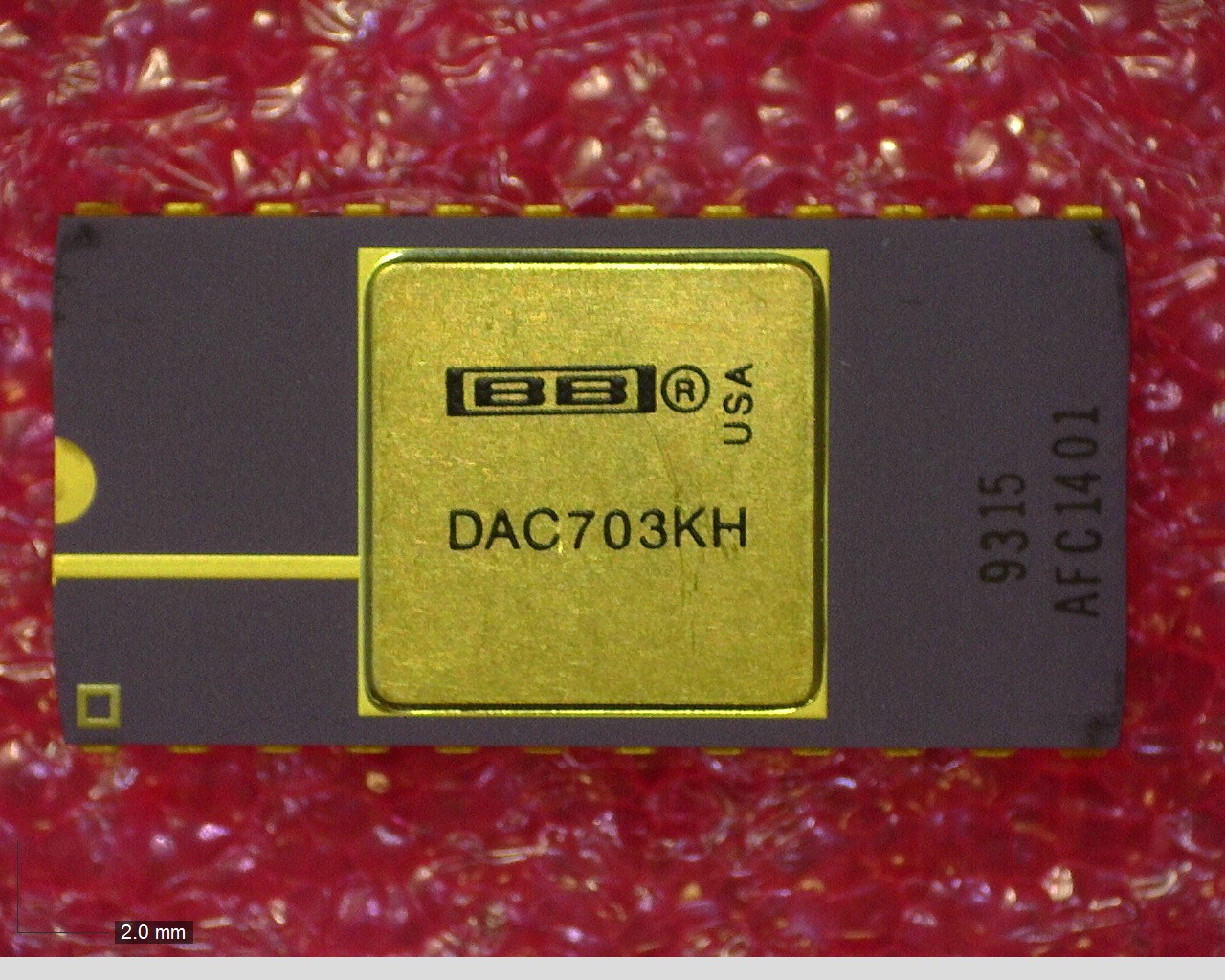

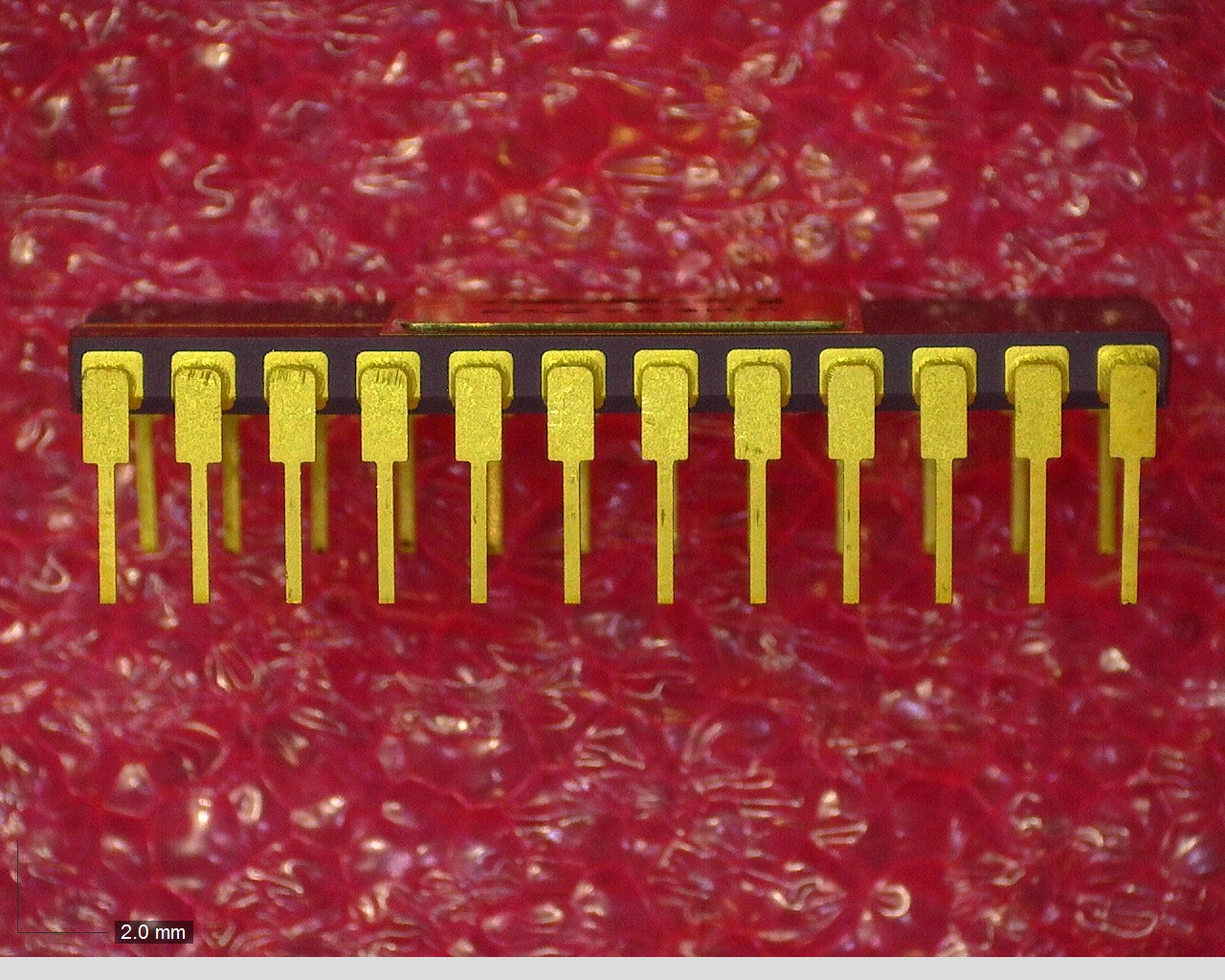

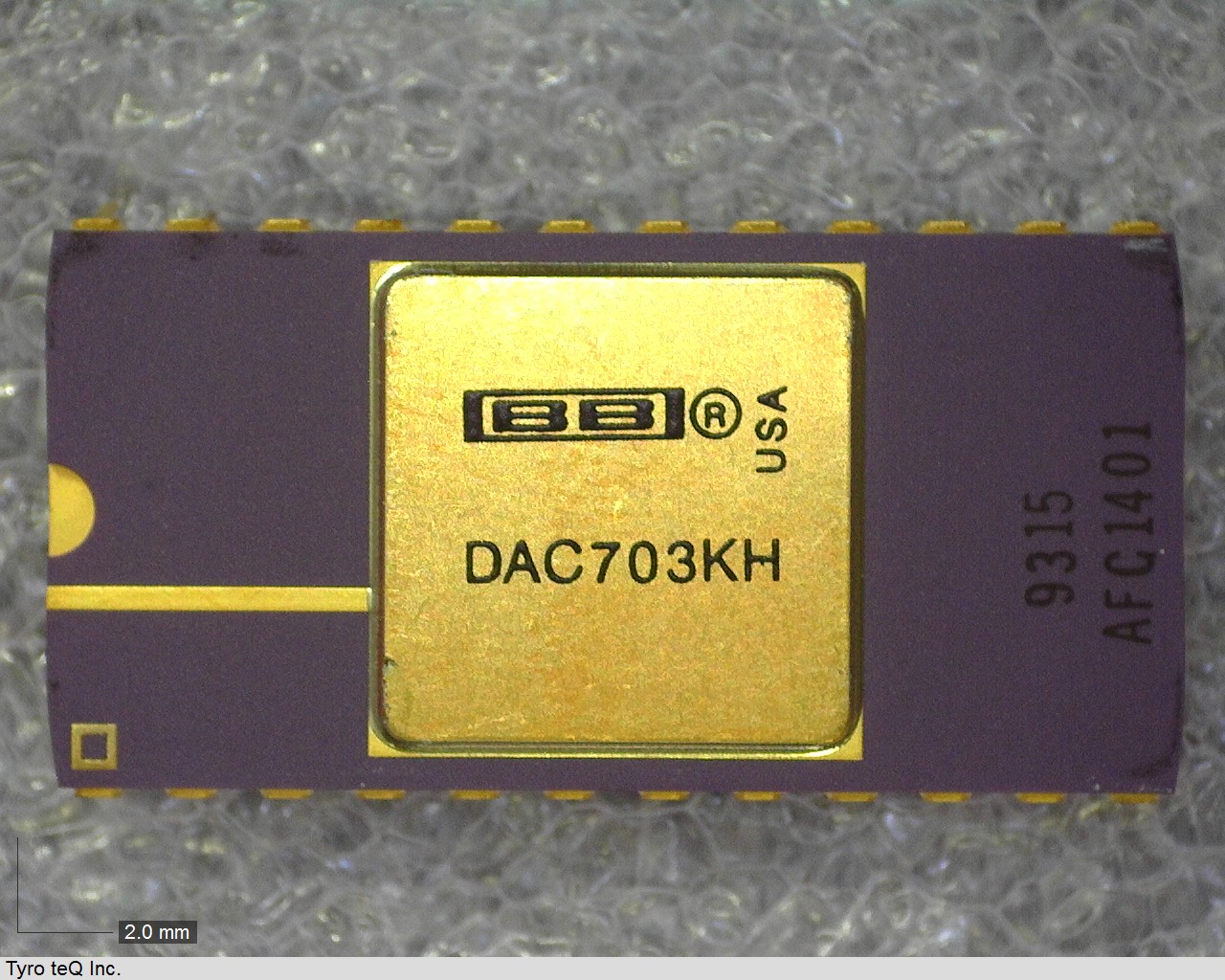

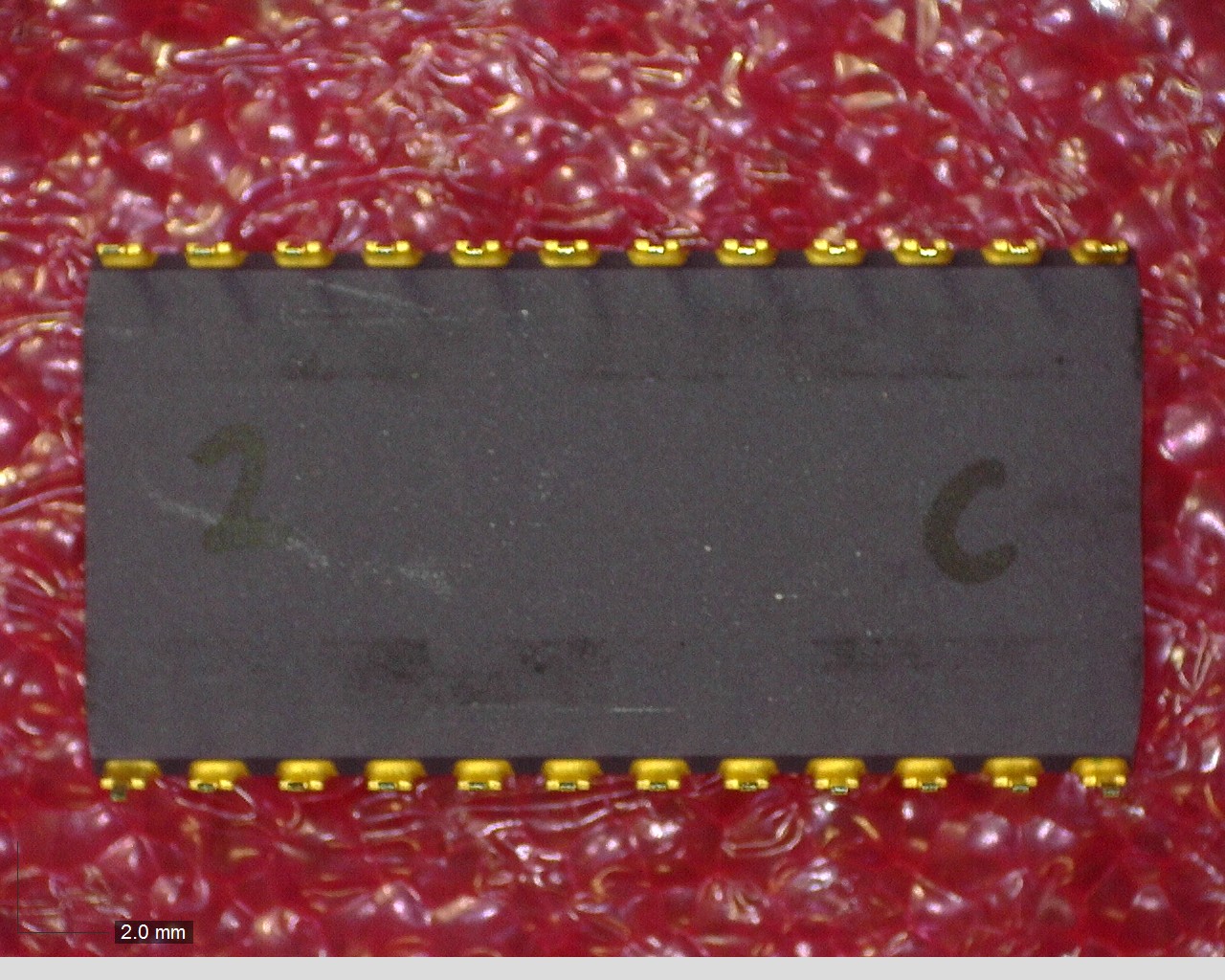

DAC703KH データシート

Name: DAC703KH
Brand: BURR-BROWN
SKU: 140007906-0000-0000-0000

DAC703KH - BURR-BROWN の商品詳細ページです。

２営業日以内に回答いたします

DAC703KH の詳細情報

型番	DAC703KH
メーカー	BURR-BROWN
データシート
Analog Output Voltage-Max	10 V
Analog Output Voltage-Min	-10 V
Converter Type	D/A CONVERTER
Input Bit Code	COMPLEMENTARY 2'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY
Input Format	PARALLEL, WORD
JESD-30 Code	R-CDIP-T24
JESD-609 Code	e0
Length	30.48 mm
Linearity Error-Max (EL)	0.003 %
Negative Supply Voltage-Nom	-15 V
Number of Bits	16
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	DIP
Package Equivalence Code	DIP24,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5,+-15 V
Qualification Status	Not Qualified
Seated Height-Max	4.83 mm
Settling Time-Max	8 us
Settling Time-Nom (tstl)	4 us
Sub Category	Other Converters
Supply Current-Max	30 mA
Supply Voltage-Nom	15 V
Surface Mount	NO
Technology	HYBRID
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
