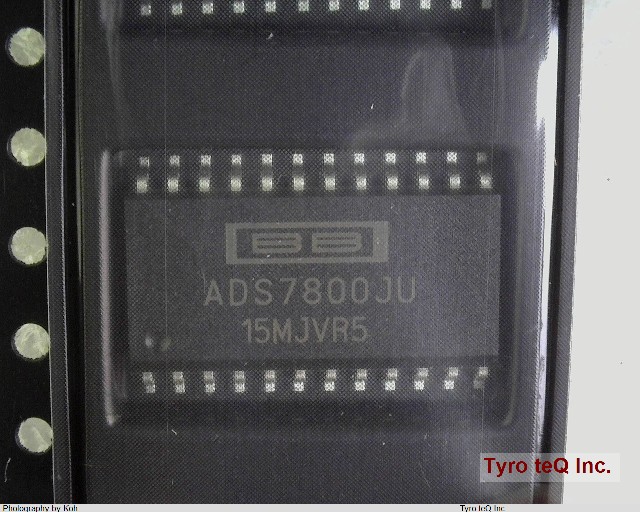

ADS7800JU

ADS7800JU - BURR-BROWN の商品詳細ページです。

1

224時間54分後 以内に見積もり依頼を頂ければ、
05月08日(水) 9:00 までに見積もり回答いたします。

  • 個
この商品のお問い合わせ

ADS7800JU の詳細情報

  • 仕様・詳細
  • メーカー情報
型番ADS7800JU
メーカーBURR-BROWN
Analog Input Voltage-Max 10 V
Analog Input Voltage-Min -20 V
Conversion Time-Max 2.7 us
Converter Type ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code R-PDSO-G24
JESD-609 Code e0
Length 15.4 mm
Linearity Error-Max (EL) 0.024 %
Moisture Sensitivity Level 3
Negative Supply Voltage-Nom -15 V
Number of Analog In Channels 1
Number of Bits 12
Number of Functions 1
Number of Terminals 24
Operating Temperature-Max 70 Cel
Operating Temperature-Min -40 Cel
Output Bit Code BINARY, OFFSET BINARY
Output Format PARALLEL, 8 BITS, PARALLEL, 4 BITS, PARALLEL, WORD
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP24,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Peak Reflow Temperature (Cel) 260
Power Supplies 5,-15 V
Qualification Status Not Qualified
Sample Rate 0.333 MHz
Sample-and-Hold/Track-and-Hold SAMPLE
Seated Height-Max 2.65 mm
Sub Category Analog to Digital Converters
Supply Current-Max 25 mA
Supply Voltage-Min 4.75 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 7.5 mm
