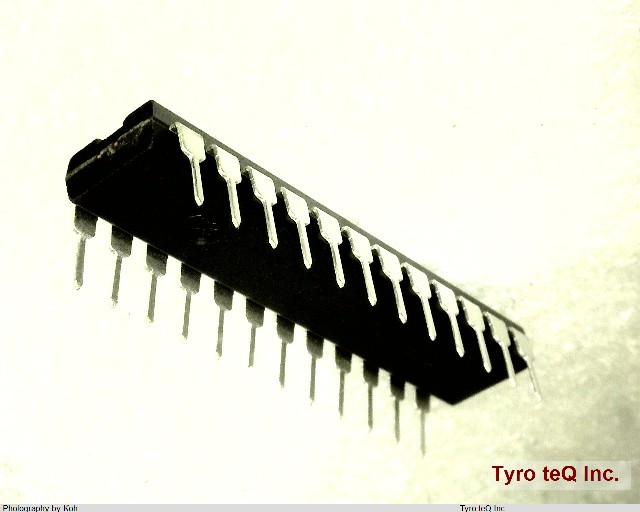

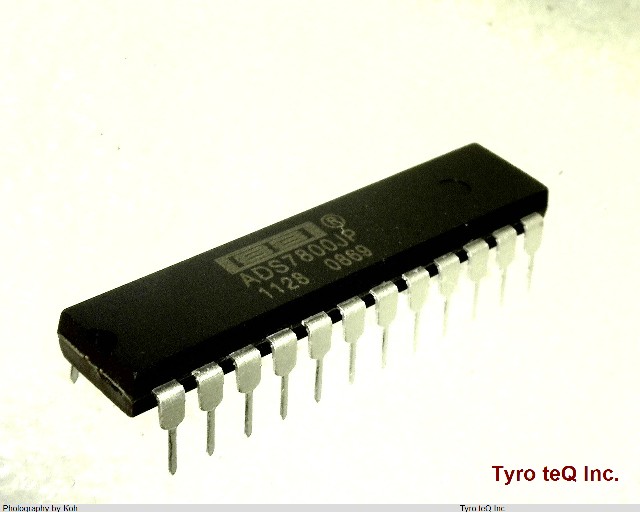

ADS7800JP Burrbrown

ADS7800JP - BURR-BROWN の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

ADS7800JP の詳細情報

  • 仕様・詳細
  • メーカー情報
型番ADS7800JP
メーカーBURR-BROWN
Analog Input Voltage-Max 10 V
Analog Input Voltage-Min -20 V
Conversion Time-Max 2.7 us
Converter Type A/D CONVERTER
JESD-30 Code R-PDIP-T24
JESD-609 Code e0
Length 30.23 mm
Linearity Error-Max (EL) 0.024 %
Negative Supply Voltage-Nom -15 V
Number of Analog In Channels 1
Number of Bits 12
Number of Functions 1
Number of Terminals 24
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Output Bit Code BINARY, OFFSET BINARY
Output Format PARALLEL, 8 BITS, PARALLEL, 4 BITS, PARALLEL, WORD
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP24,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Power Supplies 5,-15 V
Qualification Status Not Qualified
Sample Rate 0.333 MHz
Sample-and-Hold/Track-and-Hold SAMPLE
Seated Height-Max 4.32 mm
Sub Category Analog to Digital Converters
Supply Current-Max 25 mA
Supply Voltage-Nom 5 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
会社名称Texas Instruments
設立1930
資本金USD 13.7 billion
所在地12500 TI Boulevard Dallas, Texas 75243 United States
URLhttp://www.burr-brown.com/
