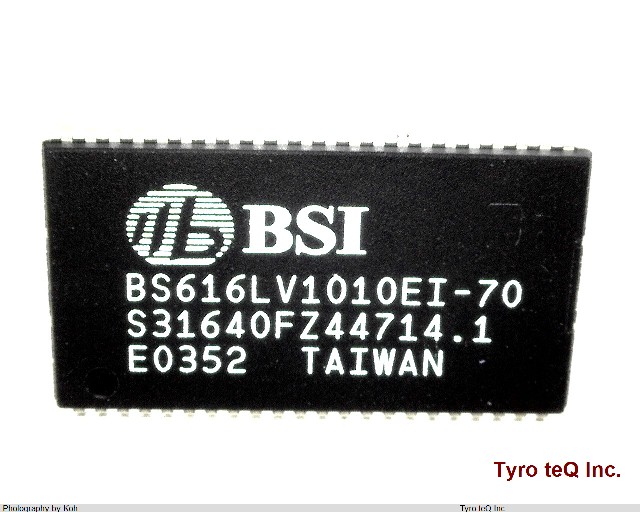

BS616LV1010EIP70 データシート

Name: BS616LV1010EIP70
Brand: BSI
SKU: 120084604-0000-0000-0000

BS616LV1010EIP70 - BSI の商品詳細ページです。

7時間59分後以内に見積もり依頼を頂ければ、
05月10日(金) 9:00 までに見積もり回答いたします。

検討リストに追加する

BS616LV1010EIP70 の詳細情報

型番	BS616LV1010EIP70
メーカー	BSI
データシート
Access Time-Max	70 ns
I/O Type	COMMON
JESD-30 Code	R-PDSO-G44
Length	18.41 mm
Memory Density	1048576 bit
Memory IC Type	STANDARD SRAM
Memory Width	16
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	44
Number of Words	65536 words
Number of Words Code	64K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	64KX16
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	TSOP2
Package Equivalence Code	TSOP44,.46,32
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Standby Voltage-Min	1.5 V
Sub Category	SRAMs
Supply Current-Max	0.04 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2.4 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
Terminal Position	DUAL
Width	10.16 mm
