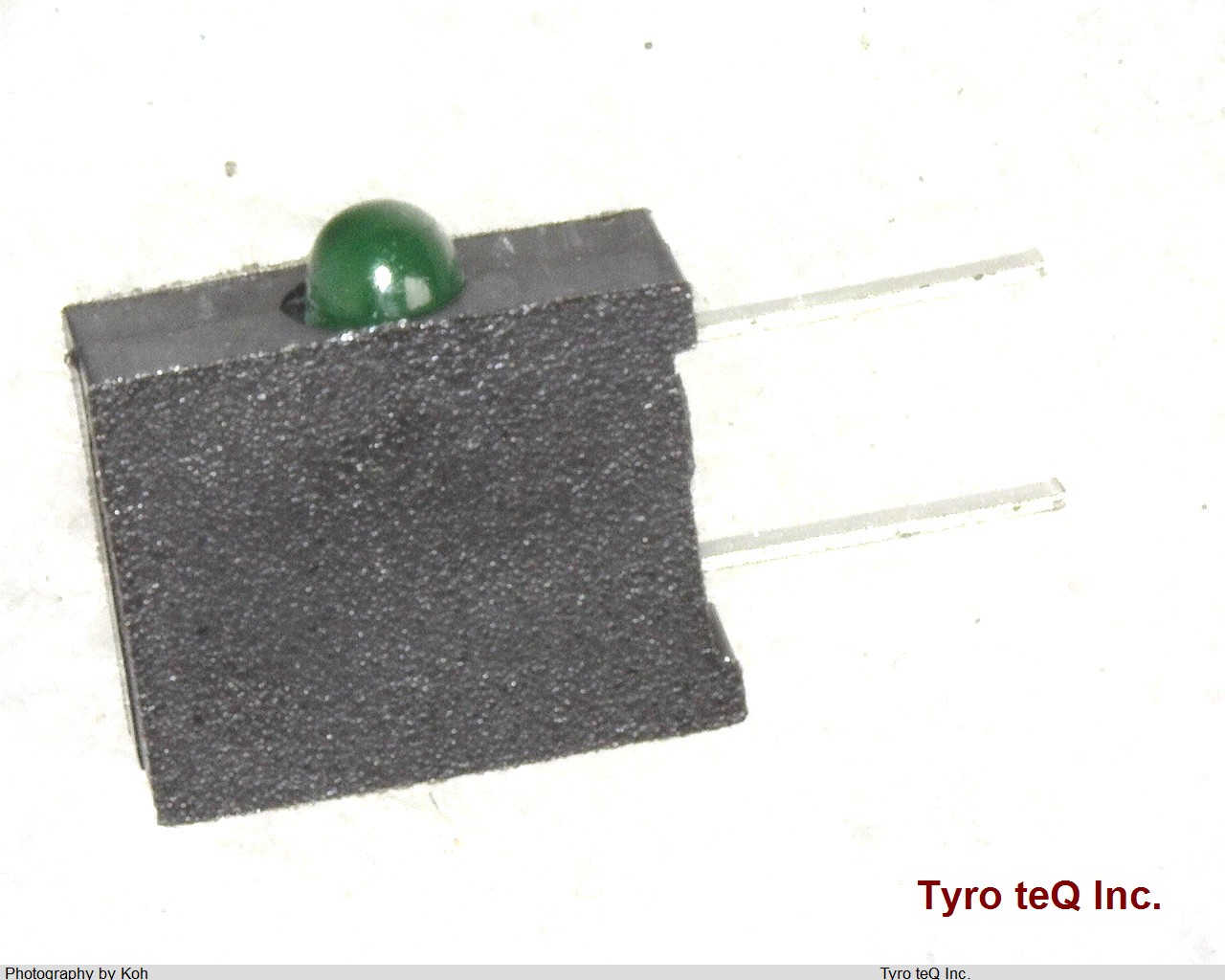

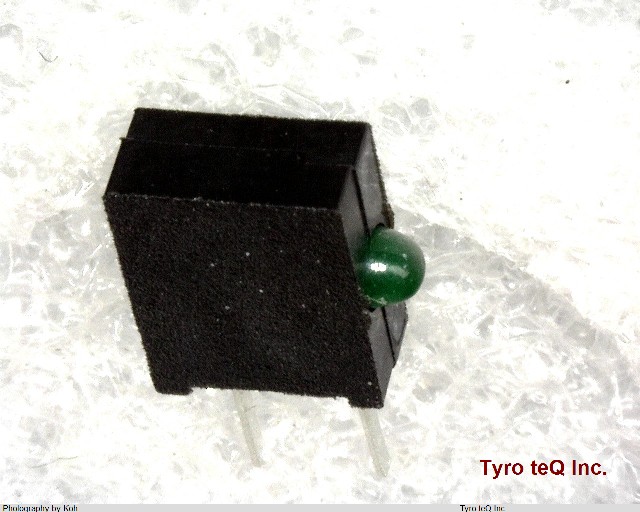

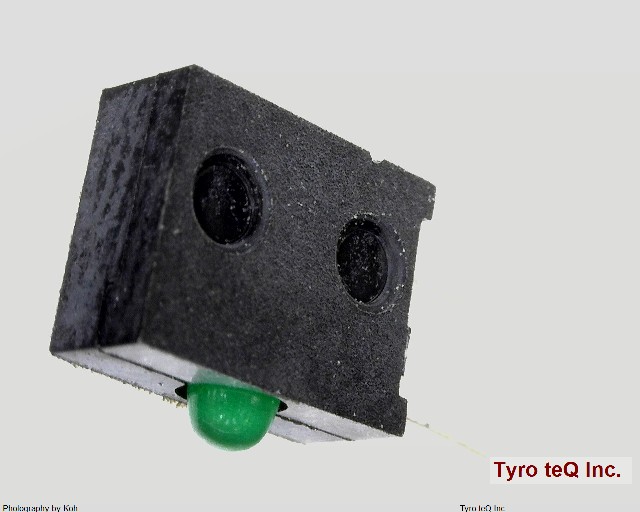

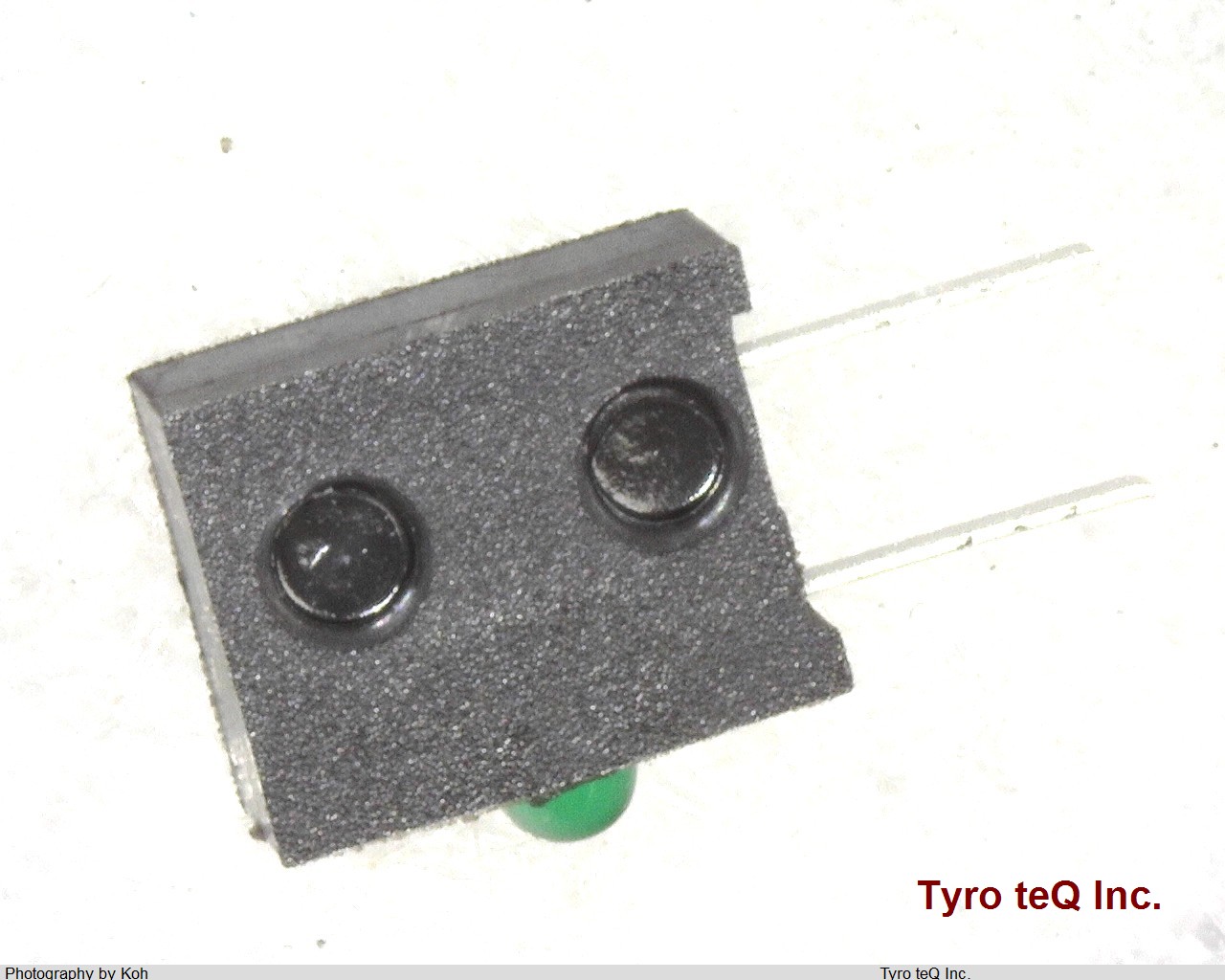

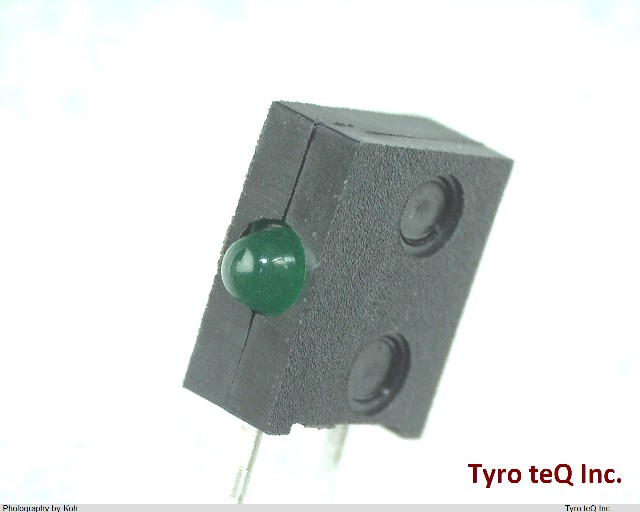

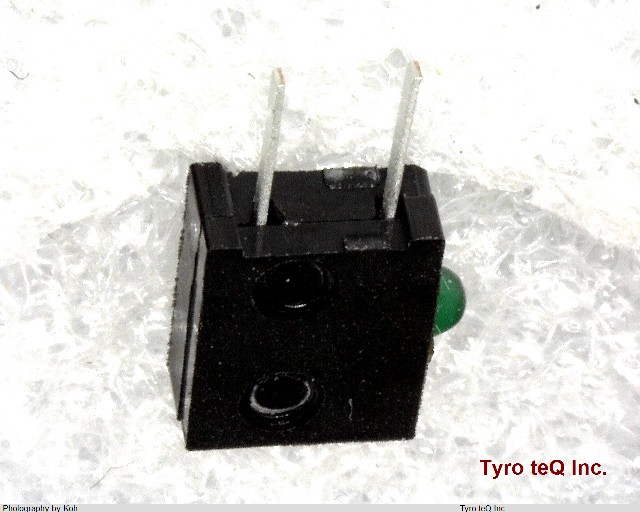

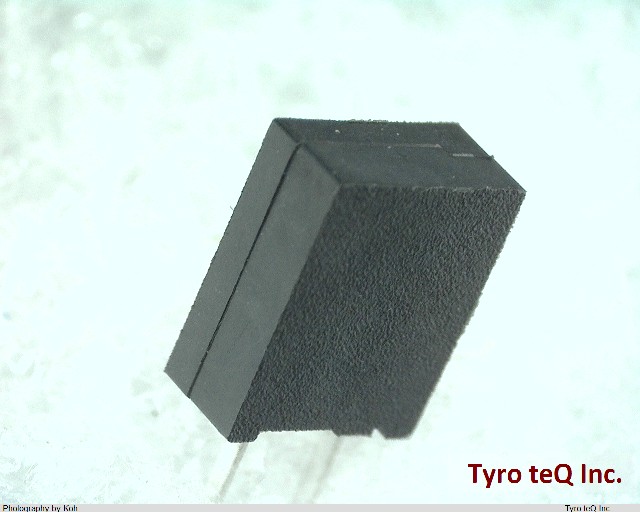

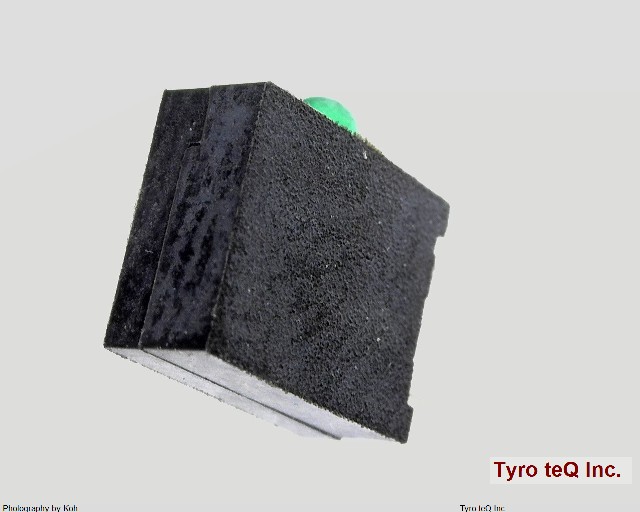

HLMP-6500-F0010
データシート
1
-
- 個
２営業日以内に回答いたします
HLMP-6500-F0010 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | HLMP-6500-F0010 |
|---|---|
| メーカー | BROADCOM |
| データシート |  |
| Additional Feature | TTL COMPATIBLE |
| Color | HIGH PERFORMANCE GREEN |
| Color@wavelength | Green |
| Configuration | SINGLE |
| Forward Current-Max | 0.03 A |
| Forward Voltage-Max | 2.7 V |
| JESD-609 Code | e0 |
| Lens Type | TINTED DIFFUSED |
| Luminous Intensity-Nom | 7.0 mcd |
| Mounting Feature | AXIAL MOUNT |
| Number of Functions | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 100 Cel |
| Operating Temperature-Min | -40 Cel |
| Optoelectronic Device Type | SINGLE COLOR LED |
| Overall Height | 2.92 mm |
| Packing Method | BULK |
| Peak Wavelength | 565 nm |
| Reverse Voltage-Max | 5 V |
| Shape | ROUND |
| Size | 1.78 mm |
| Sub Category | Visible LEDs |
| T-code | T-3/4 |
| Terminal Finish | MATTE TIN |
| Terminal Pitch | 2.54 mm |
| Viewing Angle | 90 deg |
| 会社名称 | Broadcom Corporation. |
|---|---|
| 設立 | 1991 |
| 所在地 | 5300 California Avenue (Buildings 1-8) Irvine, California 92617 United States |
| URL | http://www.broadcom.com/ |
