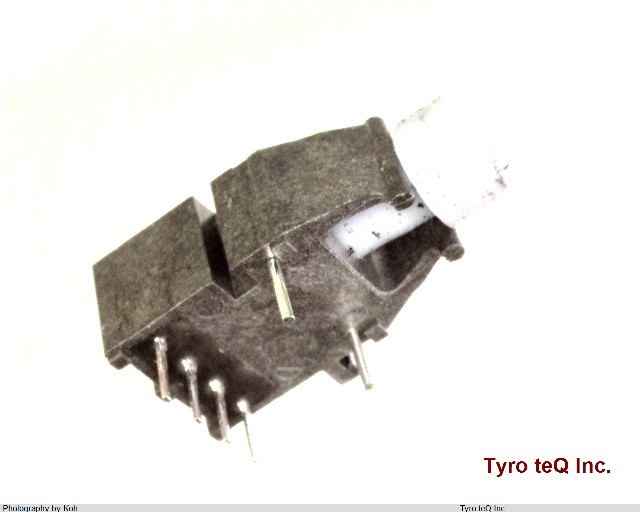

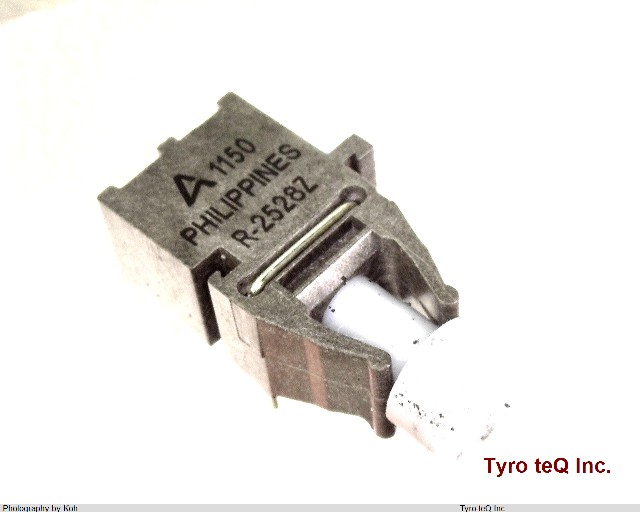

HFBR-2528
1
-
- 個
２営業日以内に回答いたします
HFBR-2528 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | HFBR-2528 |
|---|---|
| メーカー | BROADCOM |
| Body Breadth | 10.2 inch |
| Body Height | 7.6 mm |
| Body Length or Diameter | 18.8 mm |
| Built-in Feature | AMPLIFIER |
| Data Rate | 5 Mbps |
| Emitter/Detector Type | PIN PHOTODIODE |
| Fiber Optic Device Type | RECEIVER |
| Fiber Type | HCS, POF |
| JESD-609 Code | e0 |
| Mounting Feature | THROUGH HOLE MOUNT |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | -40 Cel |
| Operating Wavelength-Max | 662 nm |
| Operating Wavelength-Min | 635 nm |
| Operating Wavelength-Nom | 600 nm |
| Package Style | DIP Meter |
| Reception Type | DIGITAL |
| Sensitivity | -23 dBm |
| Sub Category | Fiber Optic Receivers |
| Supply Voltage-Max | 5.25 V |
| Supply Voltage-Min | 4.75 V |
| Supply Voltage-Nom | 5 V |
| Terminal Finish | Matte Tin (Sn) |
| 会社名称 | Broadcom Corporation. |
|---|---|
| 設立 | 1991 |
| 所在地 | 5300 California Avenue (Buildings 1-8) Irvine, California 92617 United States |
| URL | http://www.broadcom.com/ |
